38
6
CALL CHANNEL OPERATION
5
6
■ Call channel selection
Call channel is pre-programmed memory channel that can be
accessed by simply pushing call channel button.
➥ Push [M/CALL•MW] sev-
eral times to select the
call channel mode then
rotate the same band’s
[DIAL] to select the de-
sired call channel.
•“C1” or “C2” appears in-
stead of memory channel
number indication.
•
Push the [M/CALL•MW] sev-
eral times to select memory
mode, or push the same
band’s [V/MHz•SCAN] to se-
lect VFO mode.
➥ Push [MR/CALL] for 1 sec. to select the call
channel mode then push [Y]/[Z] to select the
desired call channel in the main band.
• Push [MR/CALL] to select memory mode, or push
[VFO/LOCK] to select VFO mode.
■ Call channel transferring
q Push the desired band’s [M/CALL•MW] several times then
rotate the same band’s [DIAL] to select the desired call
channel.
•“C1” or “C2” appears.
w Push the [M/CALL•MW] for 1 sec., then rotate the [DIAL] to
select the memory channel to transfer the contents to.
•“!” indicator and memory channel number blink.
• To transfer to the VFO, select “– –” with the [DIAL] then push the
[M/CALL•MW] for 1 sec.
e Push the [M/CALL•MW] for 1 sec. to transfer the contents.
z Push [MR/CALL] for 1 sec. then push [Y]/[Z]
to select the desired call channel in the main
band.
x Push [FUNC], [
CLR
A(MW)] momentarily, then
push [Y]/[Z] to select the memory channel to
transfer the contents to.
• To transfer to the VFO, push [Y]/[Z] to select
“– –” then push [FUNC], [
CLR
A(MW)] for 1 sec.
c Push [FUNC], then [
CLR
A(MW)] for 1 sec. to
transfer the contents.
MR/CALL
MW
[Y]/[Z]
MR/CALL
MAIN
T X
M

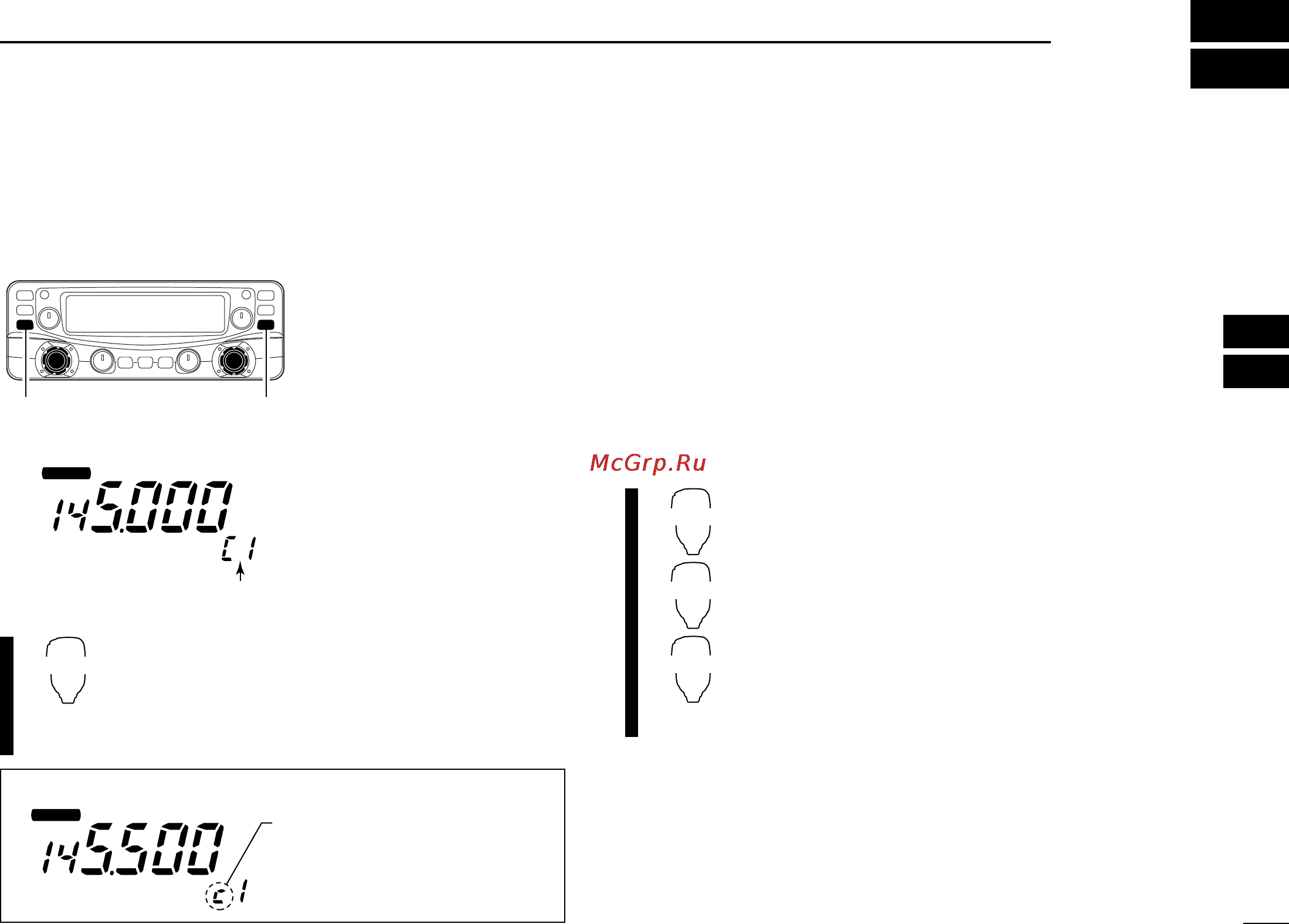

Push [M/CALL•MW] several times
to select call channel.
“C1” or “C2” appears
✔INFORMATION
MAIN
T X
M
When the VFO mode is
selected from the call channel,
a small “c” appears instead of
memory channel number.
IC-2720H_2.qxd 03.5.13 9:45 Page 38 (1,1)
