11 OTHER FUNCTIONS
New2001
DD

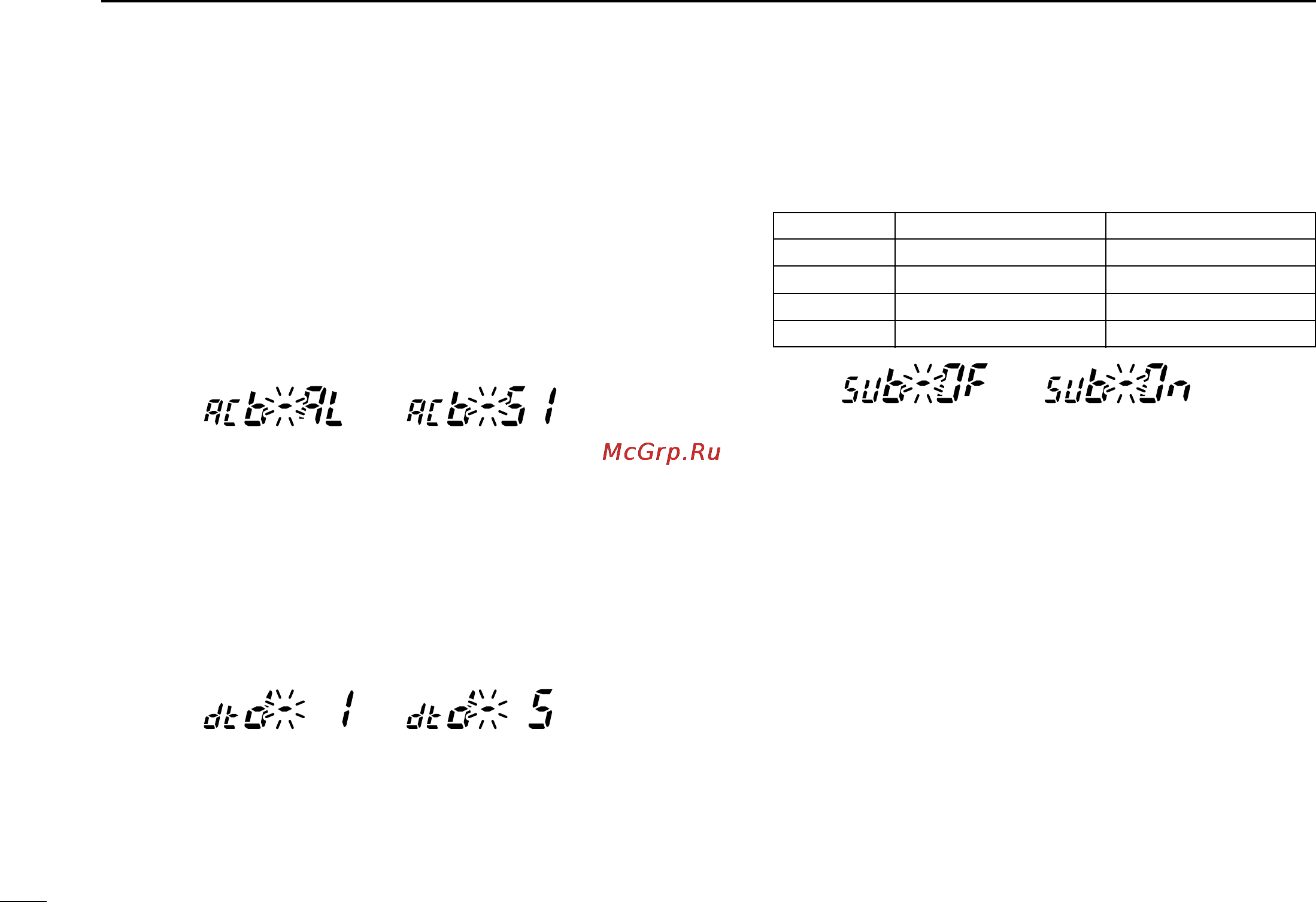

Active band
Selects the frequency selecting condition via [DIAL] or [Y]/[Z]
on the microphone from all (AL) and single (SI).
• All (AL) : The operating frequency can be selected
continuously. (default)
• Single (SI) :
The operating frequency can be selected
within the current band. Pushing
[MAIN•BAND] for 1 sec. then tuning dial rota-
tion is necessary for frequency band selection.
DD
DTMF speed
The rate at which DTMF memories send individual DTMF
characters can be set to accommodate operating needs.
• 1 : 100 msec. interval; 5.0 cps speed (default)
• 2 : 200 msec. interval; 2.5 cps speed
• 3 : 300 msec. interval; 1.6 cps speed
• 5 : 500 msec. interval; 1.0 cps speed
DD
Sub band mute
Turns the sub band function with sub band busy beep capa-
bility ON and OFF.
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
DISPLAY SUB BAND MUTE BUSY BEEP
SUb-OF OFF OFF
SUb-OF S OFF ON
SUb-On ON OFF
SUb-On S ON ON
