60
11
OTHER FUNCTIONS
New2001
11
■ Initial set mode
The initial set mode is accessed at power ON and al-
lows you to set seldom-changed settings. In this way,
you can “customize” transceiver operations to suit your
preference and operating style.

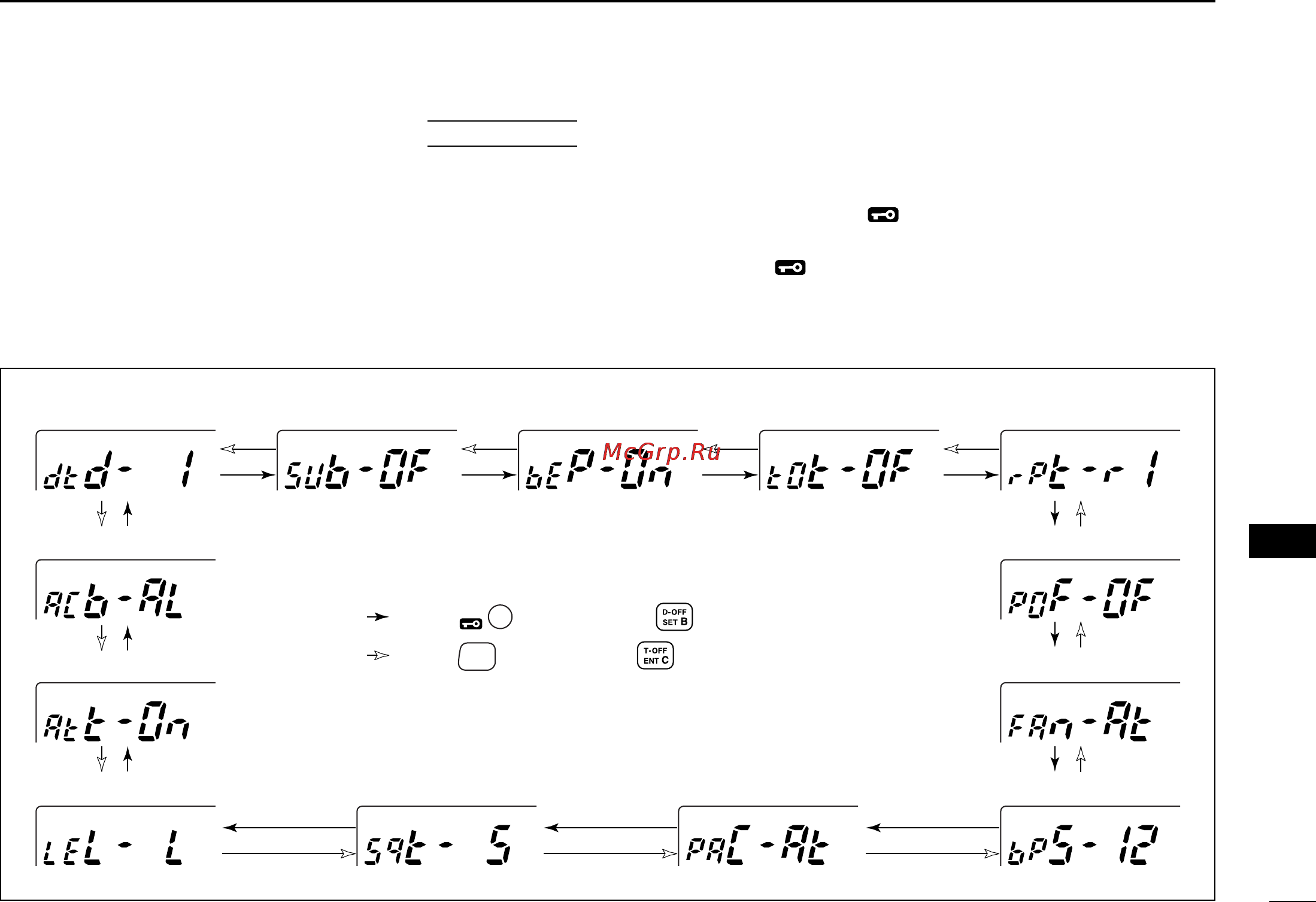

• Initial set mode items
DD
Entering initial set mode
q While pushing
[SET• ]
push [PWR] for 1 sec. to enter
initial set mode.
w Push
[SET• ]
or [LOW•PRIO] to select the desired item.
e Rotate left band’s [DIAL] to select the condition or value.
r Push [PWR] momentarily to exit initial set mode.
AT
POWER ON
MAIN
T X
MAIN
T X
MAIN
T X
DUP
MAIN
T X
MAIN
T X
MAIN
T X
MAIN
T X
MAIN
T X
MAIN
T X
MAIN
T X
MAIN
T X
MAIN
T X
MAIN
T X
• Active band
• Key-touch beep • Time-out timer • Auto repeater*
• Squelch attenuator
• Microphone sensitivity
• Sub band mute
• Auto power off
• DTMF speed
• Squelch delay • Packet operation band • Data speed
• Cooling fan
*Available in the USA version only.
: Push (front panel); or (microphone)
SET
: Push (front panel); or (microphone)
LOW
PRIO
