Icom IC-2720H [86/96] I packet operation
![Icom IC-2720H [86/96] I packet operation](/views2/1074425/page86/bg56.png)
69
11 OTHER FUNCTIONS
New2001
D Cloning using a personal computer
Data can be cloned to and from a personal computer (Mi-
crosoft
®
Windows
®
98/2000/Me/XP) using the optional CS-
2720
CLONING SOFTWARE
and the optional cloning cable
OPC-478U (USB type) or OPC-478 (RS-232C type). Consult
the CS-2720
CLONING SOFTWARE
HELP file for details.
D Cloning error
☞ NOTE: DO NOT push any key on the sub-transceiver dur-
ing cloning. This will cause a cloning error.

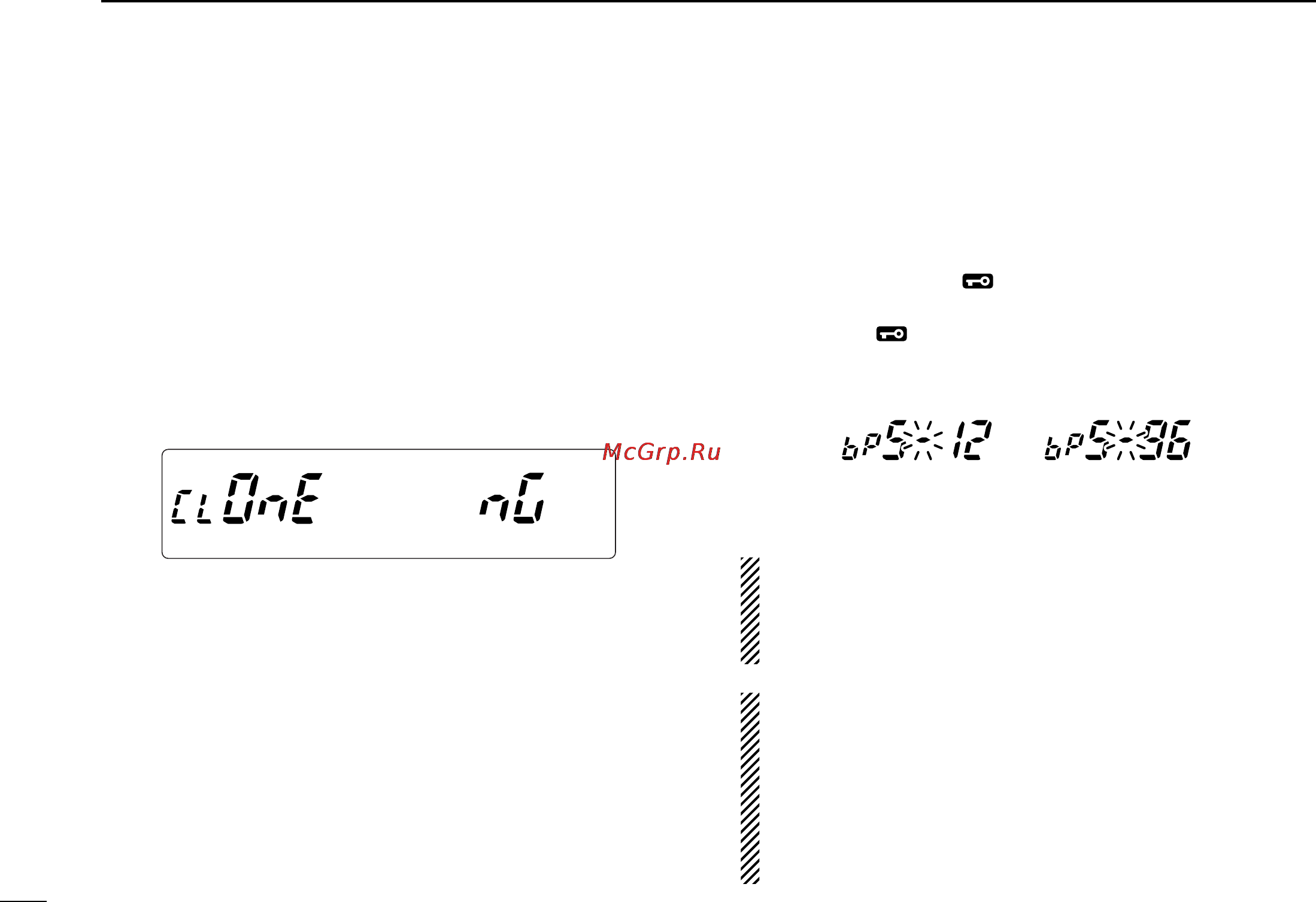

When the display as below appears, a cloning error has oc-
curred.
In such a case, both transceivers automatically return to the
clone standby condition and cloning must be repeated.
■ Packet operation
D Data speed
For packet operation, the transceiver can be set to one of two
data speeds: 1200 bps (default) or 9600 bps.
q While pushing
[SET• ]
turn power ON to enter initial set
mode.
w Push
[SET• ]
or [LOW•PRIO] to select the ‘bPS’ item.
e Rotate the left band [DIAL] to select the desired data
speed.
r Push [PWR] to exit initial set mode.
For 1200 bps operation—
• Disconnect the microphone plug from the microphone
connector during data transmission, otherwise the data
signal and voice signal are simultaneously transmitted.
For 9600 bps operation—
• When the transceiver is set for 9600 bps data transmis-
sion in set mode, the microphone signal is automatically
cut. Therefore, it is not necessary to disconnect the mi-
crophone plug from the connector in this case.
•
When pushing [PTT] during data transmission, data trans-
mission is interrupted and voice signals have priority.
MAIN
T X
M
MAIN
T X
M
MAIN
T X
MAIN
T X
M
M
Microsoft and Windows are registered trademarks of Microsoft Corporation in
the U.S.A. and other countries.
IC-2720H_2.qxd 03.5.13 9:45 Page 69 (1,1)
