32
5
MEMORY OPERATION
New2001
5
■
Transferring memory contents
This function transfers a memory channel’s contents to VFO
(or another memory/call channel). This is useful when search-
ing for signals around a memory channel frequency and for
recalling the offset frequency, subaudible tone frequency etc.
D Memory/call➪VFO
q Select the desired band’s (left or right) memory or call
channel.
➥ Push the desired band’s [M/CALL•MW] several times to
select memory mode or call channel, then rotate the
same band’s [DIAL] to select the desired memory or call
channel.
w Push [M/CALL•MW] for 1 sec. to transfer the selected
memory/call channel contents to the VFO.
• VFO mode is selected automatically.
z Push [BAND] to select the desired band as
the main band, if necessary.
x Select the memory/call channel to be
transferred.
➥ Push [MR/CALL] to select memory mode,
then select the desired memory channel
via [Y]/[Z] or keypad.
➥ Push [MR/CALL] for 1 sec. then push
[Y]/[Z] to select the call channel.
c Push [FUNC], then [
CLR
A(MW)] for 1 sec. to
transfer the selected memory/call channel
contents to the VFO.
• VFO mode is selected automatically.
MR/CALL
MW
[Y]/[Z]

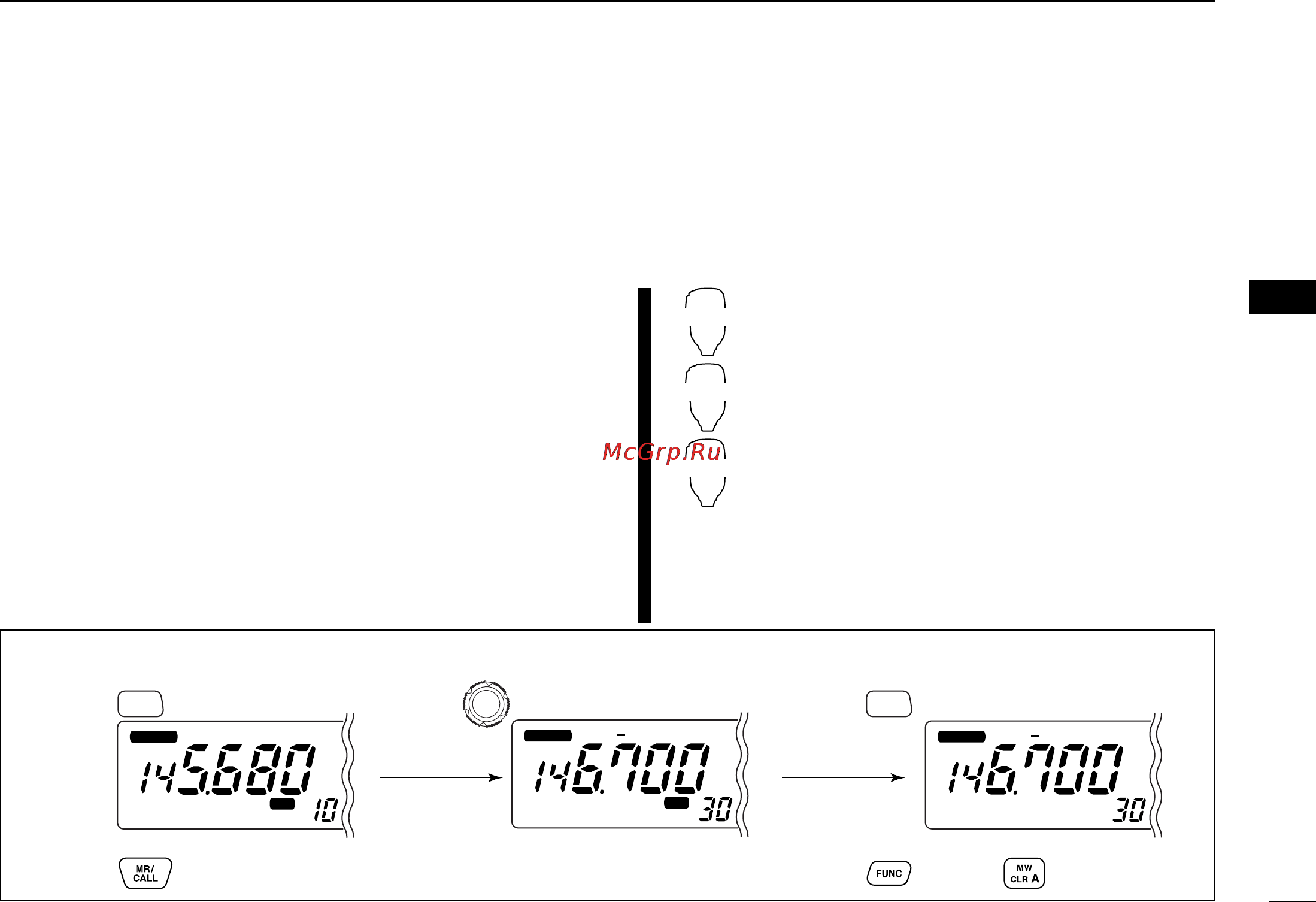

[EXAMPLE]: Transferring memory channel 30 contents to VFO.
MAIN
T X
M
MAIN
T X
DUP
T
M
MAIN
T X
DUP
T
M
Push to select memory mode.
Front panel operation:
HM-133 operation:
Push to select memory mode.
Rotate for selecting memory channel.
Select memory channel.
Push for 1 sec.
Push then push for 1 sec.
MW
M/CALL
MW
M/CALL
