Icom IC-2720H [8/96] D mb 84 installation
![Icom IC-2720H [8/96] D mb 84 installation](/views2/1074425/page8/bg8.png)
III
QUICK REFERENCE GUIDE
New2001

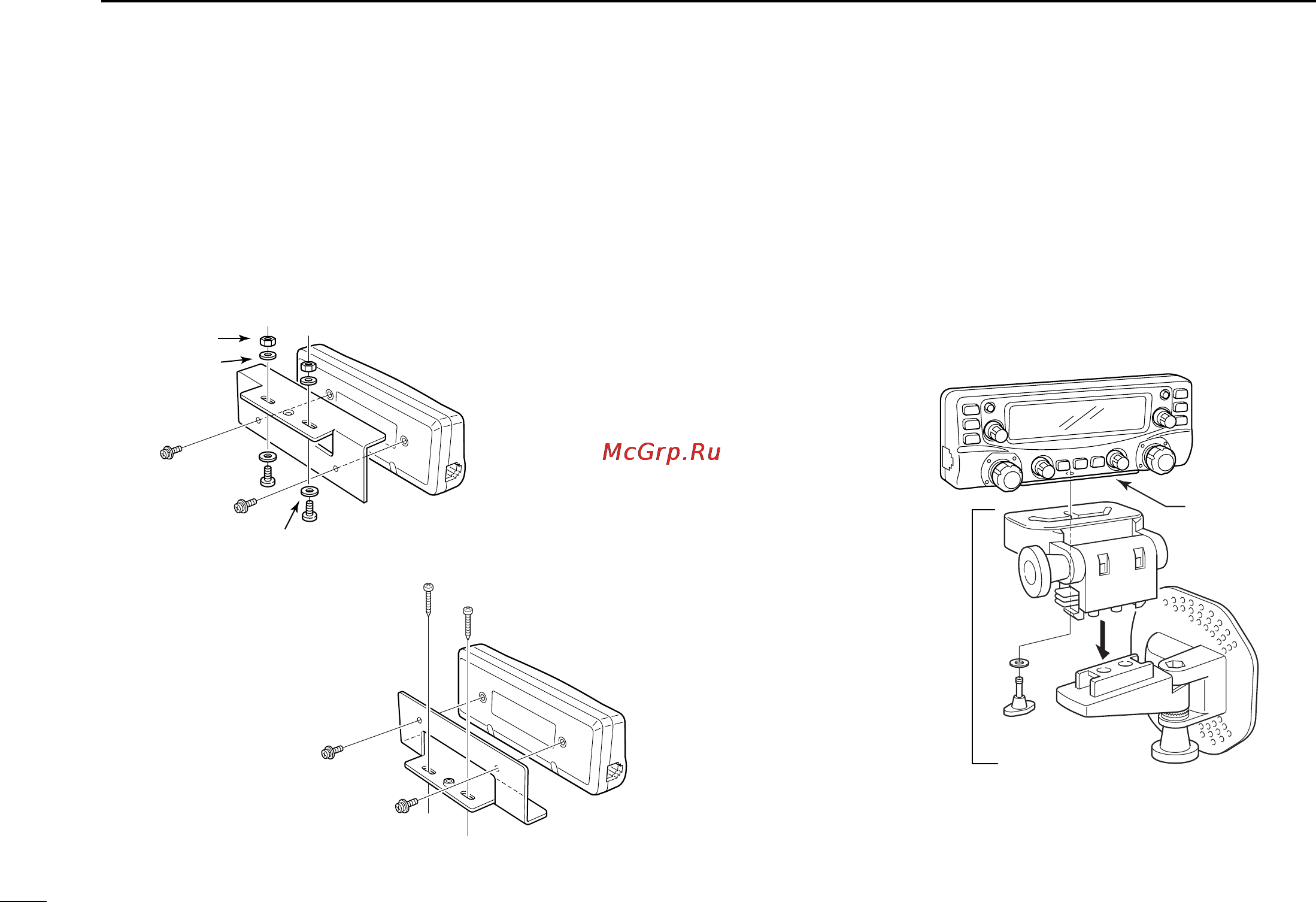

D MB-84 installation
The supplied MB-84
REMOTE CONTROLLER BRACKET
is used
for separate installation.
qDrill 2 holes where the bracket is to be installed.
• Approx. 4 mm (
1
⁄8″) when using nuts; approx. 1–2mm (
1
⁄16″)
when using self-tapping screws.
wAttach the remote controller to the MB-84 and tighten the
controller using with the supplied screws.
eTighten the controller with bracket.
• Using the optional MB-65
MB-84
(supplied)
Optional
MB-65
Adjust the view-
ing angle for
maximum visibili-
ty of the function
display.
MB-84
MB-84
• Over-head mounting
• Standard mounting
Remote
controller
Supplied
screws
Supplied
screws
Self-tapping
screws
Remote
controller
Nut
Spring
washer
Flat
washer
IC-2720H_2.qxd 03.5.13 9:45 Page III (1,1)
