51
9 DTMF MEMORY ENCODER
New2001
D Manual transmission
z Deactivate the DTMF memory encoder by
pushing [FUNC] then [
SET
B(D-OFF)].
x
Push [DTMF-S] to turn the DTMF direct selec-
tion ON.
• The function indicator (microphone) lights green.
c Push one of “0” to “9” and “A” to “F” keys mo-
mentarily, then push the desired DTMF keys,
0–9 and A to F.
• A: [
CLR
A(MW)] B: [
SET
B(D-OFF)],
C: [
ENT
C(T-OFF)] D: [
SQL
Y D(MUTE)],
E: [
MM
(TONE-1)] F: [
SQL
Z #(16KEY-L)]
• Automatically transmits without pushing PTT.
• The first code, one of “A” to “F,” is not transmitted.
DTMF code transmission starts from the 2nd code.
v Push [DTMF-S] again to deactivate the DTMF
direct selection.
■ DTMF speed
The rate at which DTMF memories send individual DTMF
characters can be set to accommodate operating needs.
q Push [PWR] for 1 sec. to turn power OFF.
w While pushing
[SET• ],
push [PWR] for 1 sec. to turn
power ON and enter initial set mode.
e Push
[SET• ]
or [LOW•PRIO] several times until “dtd”
appears as shown above.
r Rotate the left band’s [DIAL] to select the desired speed
as shown in the table below.
t Push [PWR] to exit initial set mode.
cps=characters/sec
MAIN
T X
M

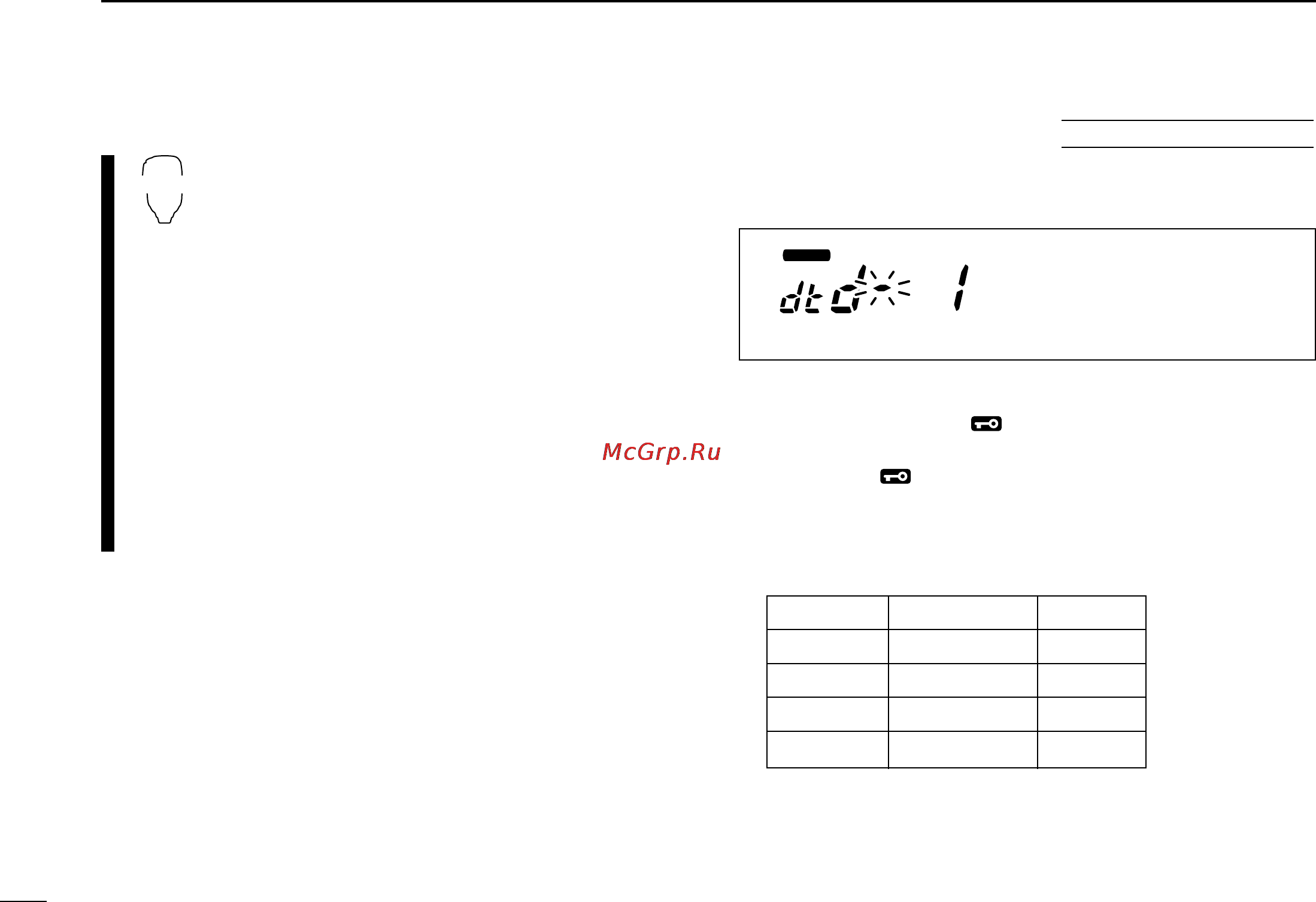

The display shows the fastest
DTMF speed is selected.
USING
INITIAL SET MODE
DTMF-S
DISPLAY INTERVAL SPEED
dtd-- 1 100 msec. 5.0 cps
dtd-- 2 200 msec. 2.5 cps
dtd-- 3 300 msec. 1.6 cps
dtd-- 5 500 msec. 1.0 cps
IC-2720H_2.qxd 03.5.13 9:45 Page 51 (1,1)
