■ Subaudible tones
(Encoder function)
D Subaudible tones
q Select the main band, mode/channel you wish to set the
subaudible tones to, such as VFO mode or memory/call
channel.
w Push [SET• ] to enter set mode.
e
Push [SET• ] or [DUP•MONI] several times until “T”
and
“rt” appear; or until “T SQL” and “Ct” appear for tone
squelch or pocket beep use.
• When “d” is displayed in place of the 100 MHz digit, cancel the
DTMF memory encoder in advance. (p. 50)
r Rotate the main band’s [DIAL] to select and set the desired
subaudible frequency.
t Push [TONE•DTMF] to exit set mode.
☞NOTE: The subaudible tone encoder frequency can be set
in a memory/call channel temporarily. However, the set fre-
quency is cleared once another memory channel or VFO
mode is selected. To store the tone frequency permanently,
overwrite the channel information.
z Set the main band, mode/channel you wish to
set the subaudible tones to, such as VFO mode
or memory/call channel.
• The subaudible tone frequency is independently pro-
grammed into each mode or channel.
x Push [
SET
B(D-OFF)] to enter set mode.
c
Push [
SET
B(D-OFF)] or [
ENT
C(T-OFF)] several
times until “T”
and “rt” appears; or until “T SQL”
and “Ct” appears for tone squelch or pocket
beep use.
•
When “d” is displayed in place of the 100 MHz digit,
cancel the DTMF memory encoder in advance. (p. 50)
v Push [Y] or [Z] to select and set the desired
subaudible tone frequency.
• Push and hold [Y]/[Z] to change the above tones
continuously.
b Push [
CLR
A(MW)] to exit set mode.
• Subaudible tone frequency list
(unit: Hz)
67.0
69.3
71.9
74.4
77.0
79.7
82.5
85.4
88.5
91.5
94.8
97.4
100.0
103.5
107.2
110.9
114.8
118.8
123.0
127.3
131.8
136.5
141.3
146.2
151.4
156.7
159.8
162.2
165.5
167.9
171.3
173.8
177.3
179.9
183.5
186.2
189.9
192.8
196.6
199.5
203.5
206.5
210.7
218.1
225.7
229.1
233.6
241.8
250.3
254.1

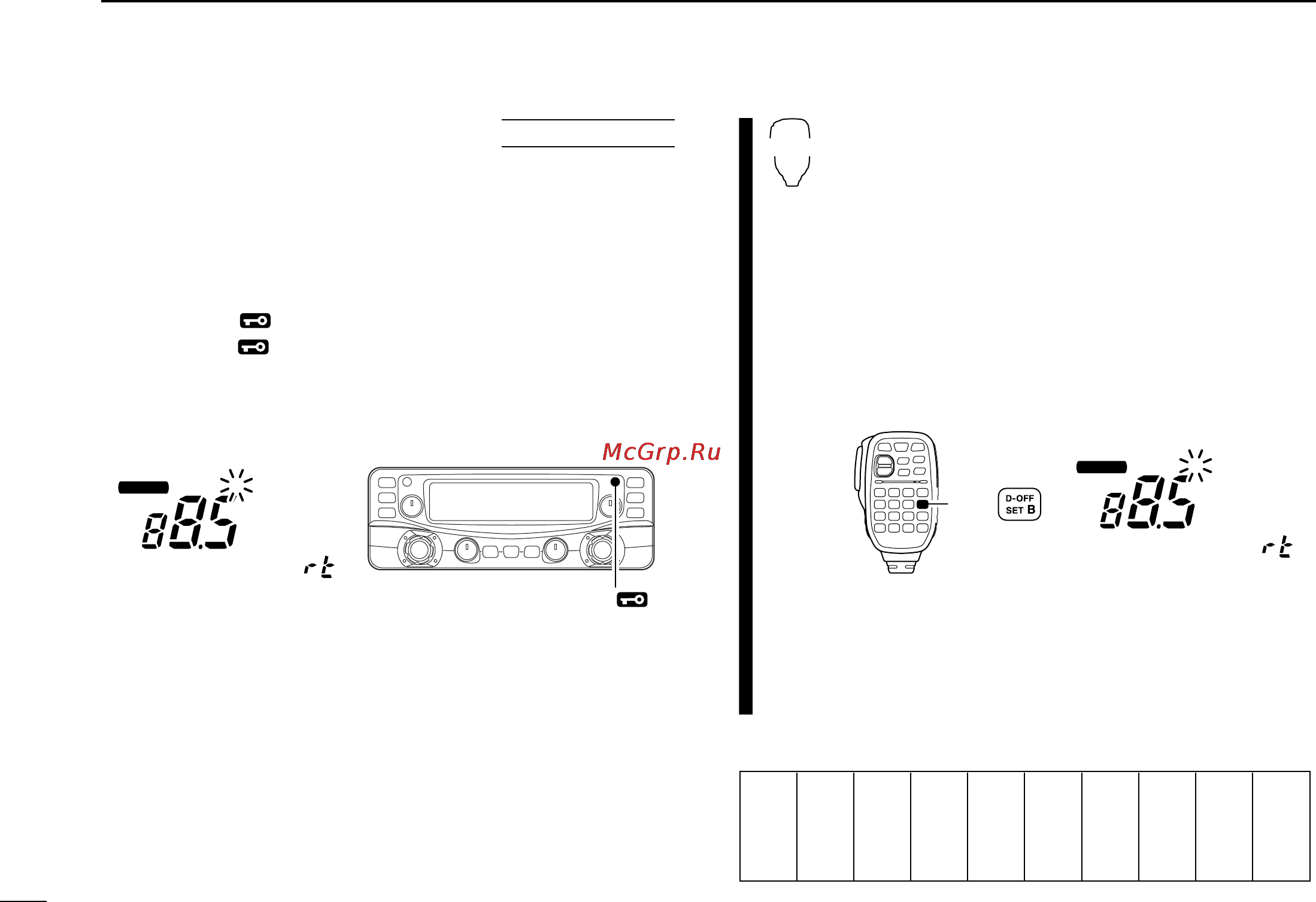

MAIN
T X
T
M
Push
SET
B
MAIN
T X
T
M
[SET• ]
“T” and “rt” appear
USING
SET MODE
25
4 REPEATER OPERATION
New2001
IC-2720H_2.qxd 03.5.13 9:45 Page 25 (1,1)
