Icom IC-2720H [85/96] I data cloning
![Icom IC-2720H [85/96] I data cloning](/views2/1074425/page85/bg55.png)
68
11
OTHER FUNCTIONS
New2001
11
■ Data cloning
Cloning allows you to quickly and easily transfer the pro-
grammed contents from one transceiver to another; or , data
from a personal computer to a transceiver using the optional
CS-2720
CLONING SOFTWARE
.
D Cloning between transceivers

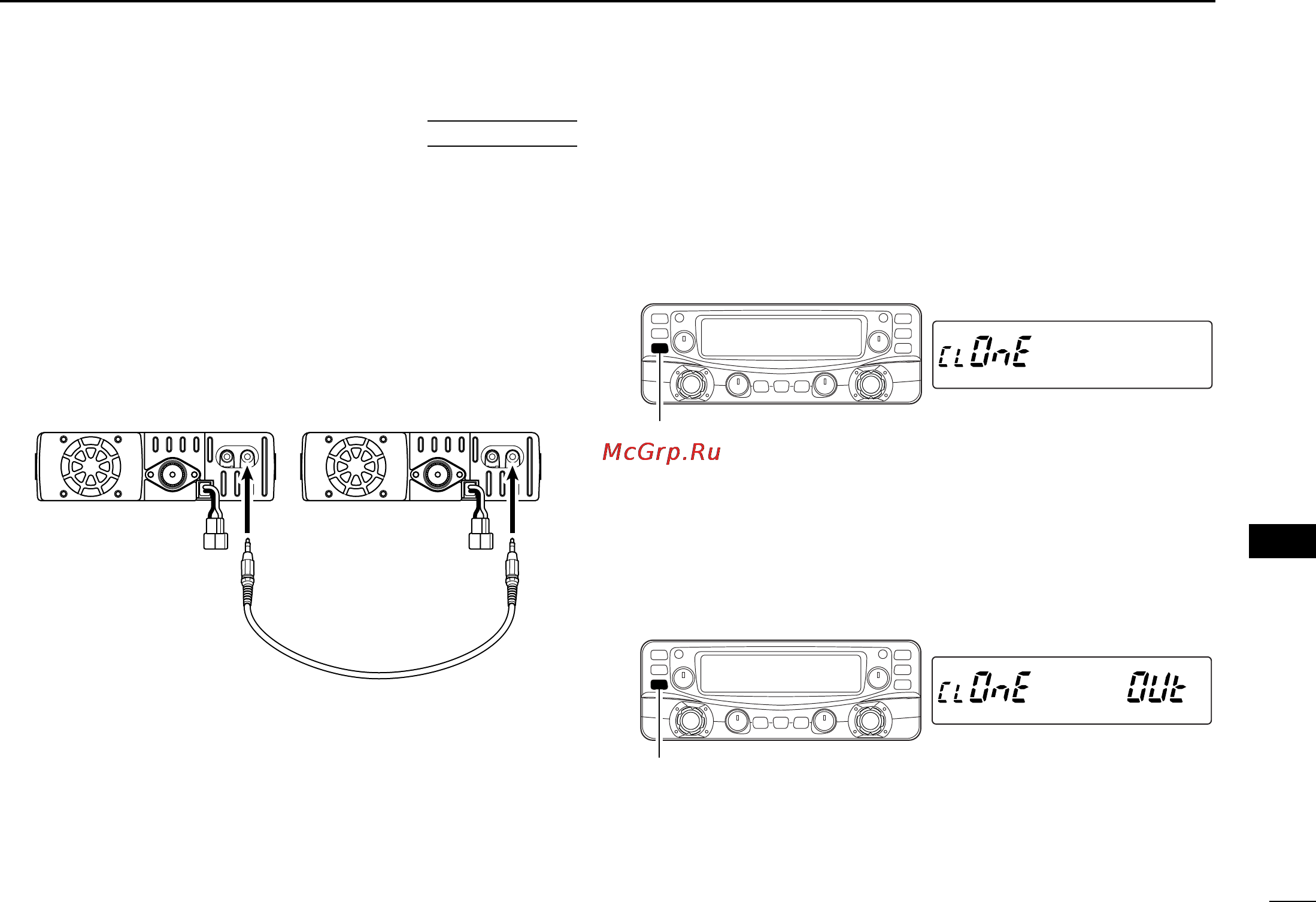

q Connect the OPC-474 cloning cable to the [SP-2] jack of
the master and sub-transceivers.
• The master transceiver is used to send data to the sub-trans-
ceiver.
w While pushing left band’s [M/CALL•MW], turn power ON to
enter cloning mode (master transceiver only— power on
only for sub-transceiver).
•“CLOnE” appears and the transceivers enter the clone standby
condition.
e Push the same [M/CALL•MW] on the master transceiver.
•“CLOnE OUt” appears in the master transceiver’s display and
the S/RF indicators show that data is being transferred to the
sub-transceiver.
•“CLOnE In” appears automatically in the sub-transceiver’s dis-
play and the S/RF indicators show that data is being received
from the master transceiver.
r When cloning is finished, turn power OFF, then ON to exit
cloning mode.
MAIN
T X
MAIN
T X
M
M
Pushing left band’s [M/CALL•MW] start cloning.
MAIN
T X
MAIN
T X
M
M
While pushing left band’s [M/CALL•MW], turn power ON.
To [SP-2] To [SP-2]
AT
POWER ON
IC-2720H_2.qxd 03.5.13 9:45 Page 68 (1,1)
