MEMORY OPERATION
New2001
5
■ Programming a memory channel

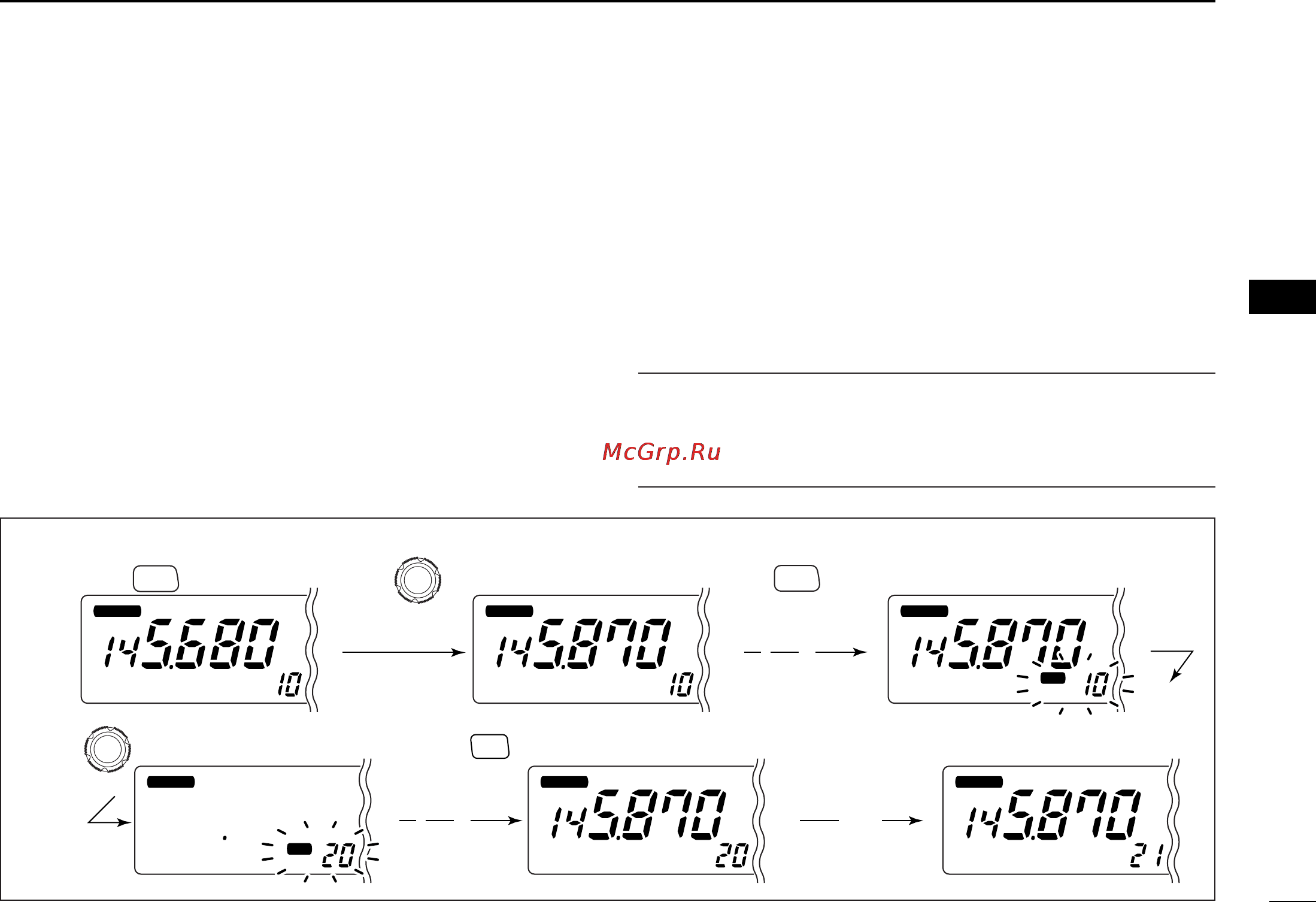

[EXAMPLE]: Programming 145.870 MHz into memory channel 20 (blank channel) via the controller.
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
MAIN
T X
M
Push Rotate for setting frequency, etc. Push for 1 sec.
Rotate Push for 1 sec. and continue to push
➠
S.MW
MW
Beep
“
Beep
Beep
Beep
“
“
“
“
“
Beep
Beep
Beep
“
“
“
“
“
SCAN
V/MHz
MW
M/CALL
VFO settings, including the set mode contents such as sub-
audible tone frequency, offset, can be programmed into a
memory channel.
qSet the desired frequency in the desired band (left or right).
➥ Push the desired band’s [V/MHz•SCAN] to select VFO
mode.
➥ Set the frequency using the same band’s [DIAL].
➥ Set other data (e.g. tone frequency, duplex information,
etc.) if required.
wPush the same band’s [M/CALL•MW] for 1 sec.
• 3 beeps sound
•“!” indicator and the memory channel number blink.
eRotate the [DIAL] to select the memory channel to be pro-
grammed.
• Memory channels not yet programmed are blank.
rPush the [M/CALL•MW] for 1 sec. to program.
• 3 beeps sound
• Memory channel number automatically increases when contin-
uing to push [M/CALL•MW] after programming.
✔CONVENIENT
Memory programming can be performed in versatile ways
e.g. memory channel to the same (or different) memory chan-
nel, memory channel to the call channel, etc.
