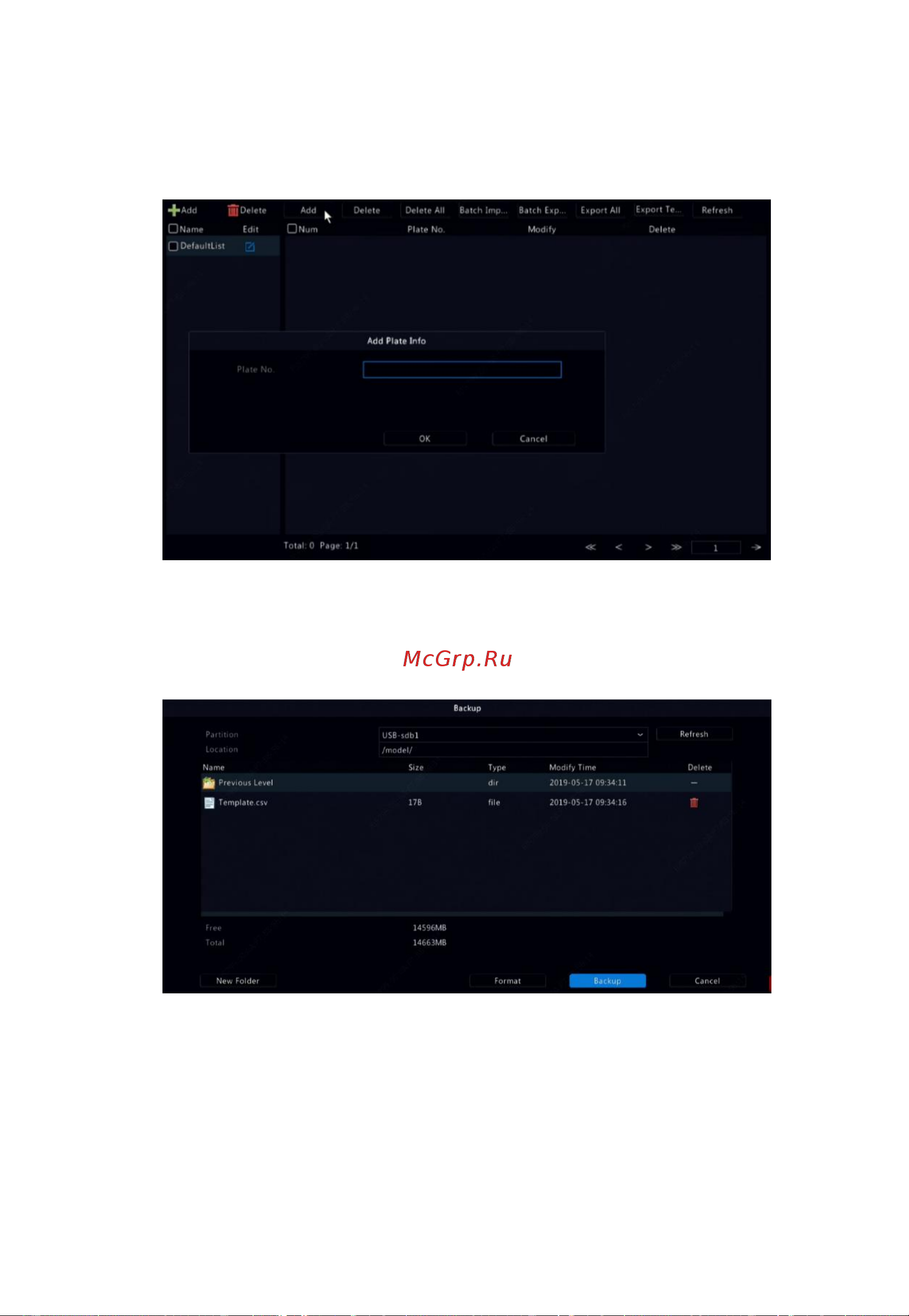

 To add a single plate, click Add, and then enter the plate number in

the window displayed.

 To batch add plates, click Export Template to export the template

to a USB storage device first. Then edit the list, and click Batch

Import to import the edited file.

After importing is completed, click Cancel to return to Plate List.
