PS-link 3108SP [27/147] Channel configuration

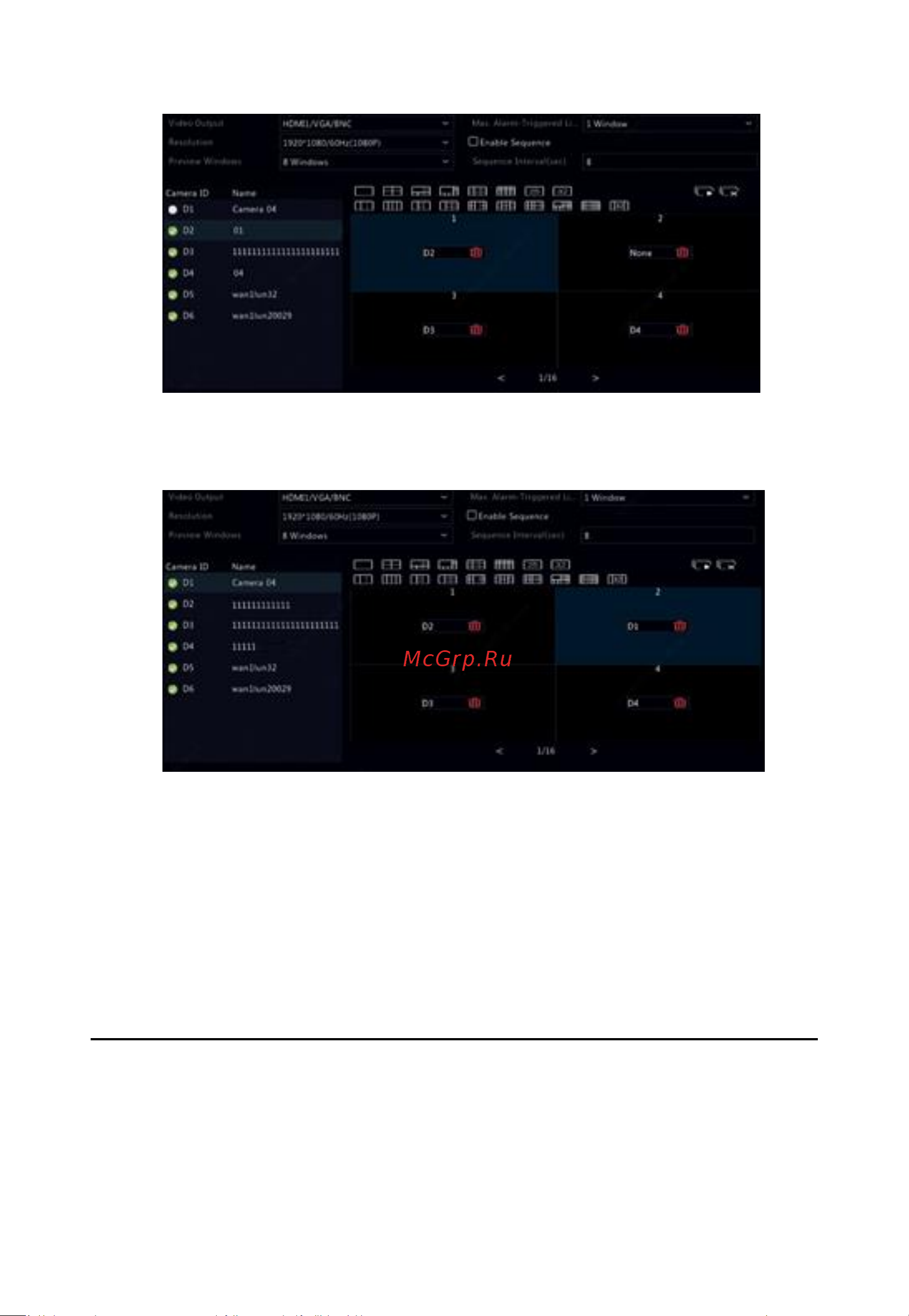

Step 2: Click window 2 on the right, and then click D1 under Camera on

the left. Now D1 appears in window 2. Click Apply to save the settings.

Advanced Configuration

Click the Advanced tab and then select Sub Stream First so the NVR uses

the sub stream to establish live video from multiple cameras

simultaneously. This function is disabled by default.

4 Channel Configuration

Channel Management

This chapter describes how to add and manage IP devices in your NVR.

The IP devices mentioned in this manual mainly refer to IP camera (or
