PS-link 3108SP [25/147] Image configuration

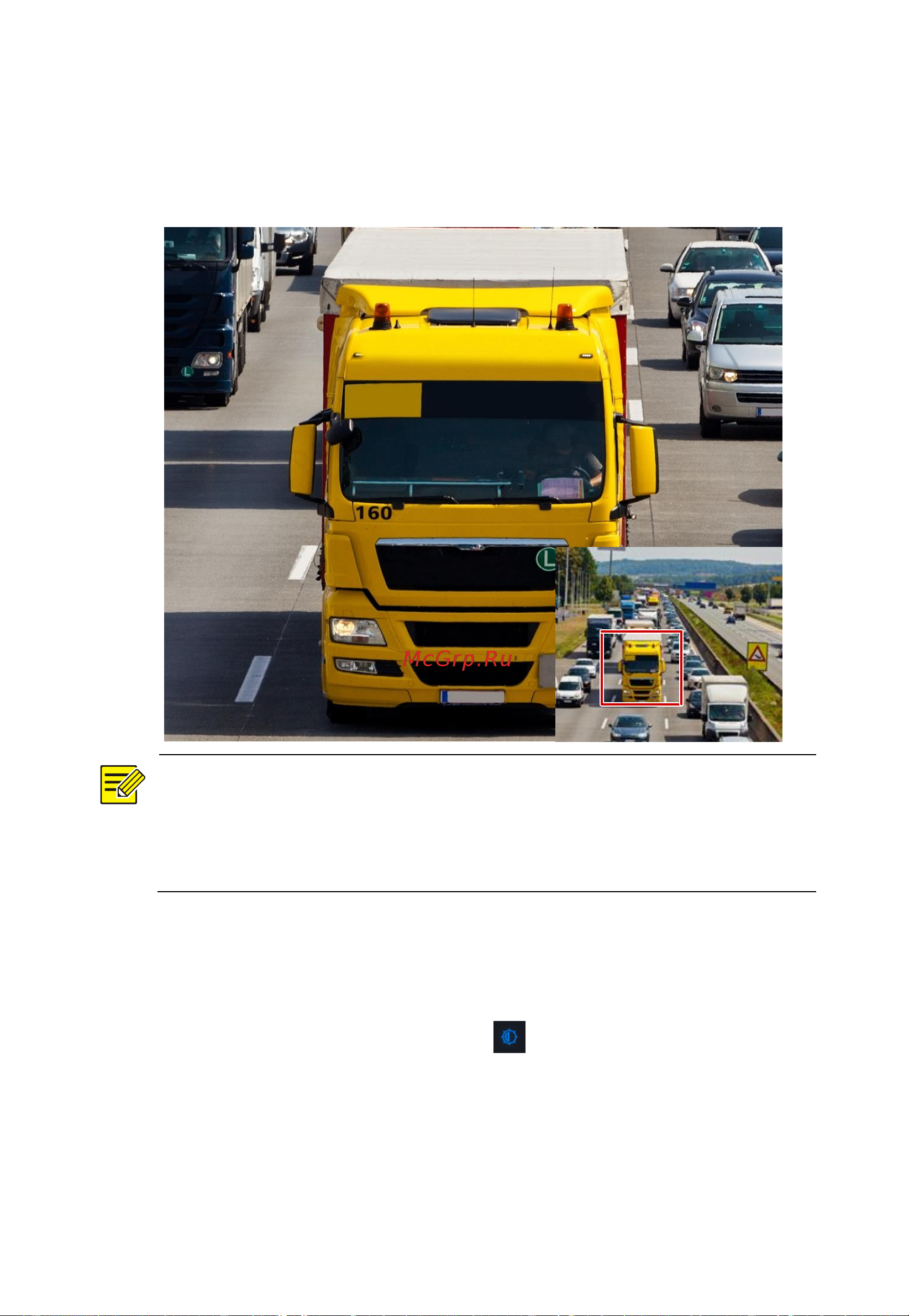

2. In the small window in the lower right corner, click and drag your

mouse to specify the area to zoom in on. The image in the main

window zooms in. The following shows an example.

NOTE!

The system adjusts the area automatically according to the window size

and its aspect ratio. Also, the system has specified a minimum size to

ensure zoom effects.

Image Configuration

Adjust image settings to get optimal images from a camera.

1. Click the window and then click on the window toolbar.

2. Select a mode from the drop-down list according to the surveillance

scenario, and then adjust contrast, hue, saturation and brightness as

needed. The settings available may vary with device model.
