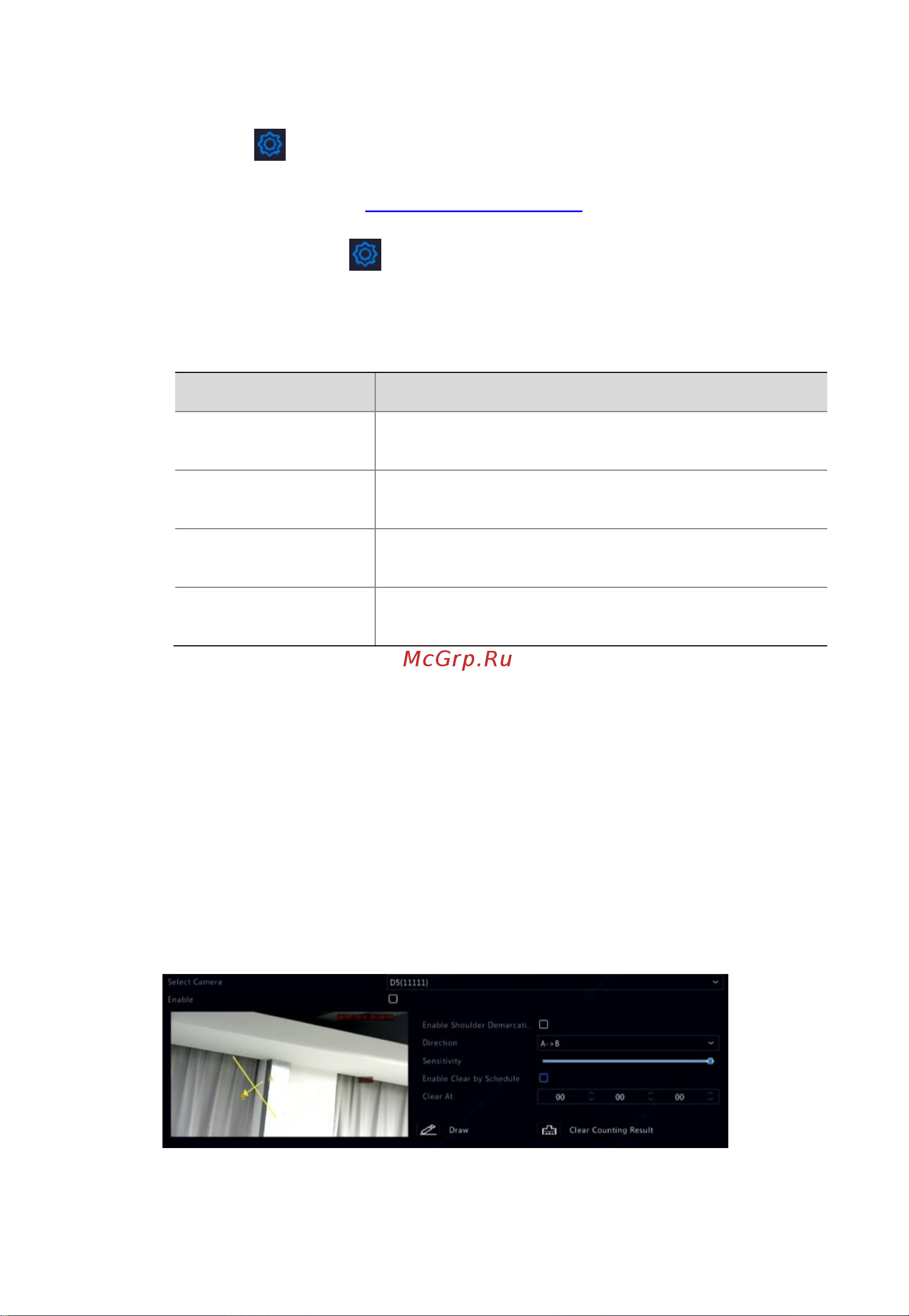

![PS-link 3108SP [83/147] People counting](/views2/1913196/page83/bg53.png)
76
3. Click right to Trigger Actions and set action(s) to trigger. For
more details, see Alarm-Triggered Actions.
4. (Optional) Click right to Arming Schedule and then set the time
when actions will be triggered.
5. Select a detection type and adjust the settings as needed.
Detection Type Description
Sudden Rise
An alarm occurs when the rise of volume exceeds
the set value.
Sudden Fall
An alarm occurs when the fall of volume exceeds the
set value.
Sudden Change
An alarm occurs when the rise or fall of volume
exceeds the set value.
Threshold
An alarm occurs when the volume exceeds the set
value.
6. Click Apply to save the settings.
People Counting
People counting is used to count people entering or leaving an area. Only
certain NVR models support this function. This function cannot be used
at the same time with other VCA functions (face detection, intrusion
detection, cross line detection, defocus detection and scene change
detection).
1. Click VCA > VCA Config > People Counting.
