![PS-link 3108SP [28/147] Adding an ip device](/img/pdf.png)
PS-link 3108SP [28/147] Adding an ip device
![PS-link 3108SP [28/147] Adding an ip device](/views2/1913196/page28/bg1c.png)
21
network camera); sometimes they can also be Digital Video Server (DVS).
Before you start, make sure the IP devices are connected to your NVR via
network.
CAUTION!
An IP device should be connected to one NVR only. An IP device managed
by multiple NVRs may cause unwanted issues.
Adding an IP Device
This section provides multiple options to add an IP device. Some options
are only applicable to certain NVR models. Choose one as appropriate.
Option 1

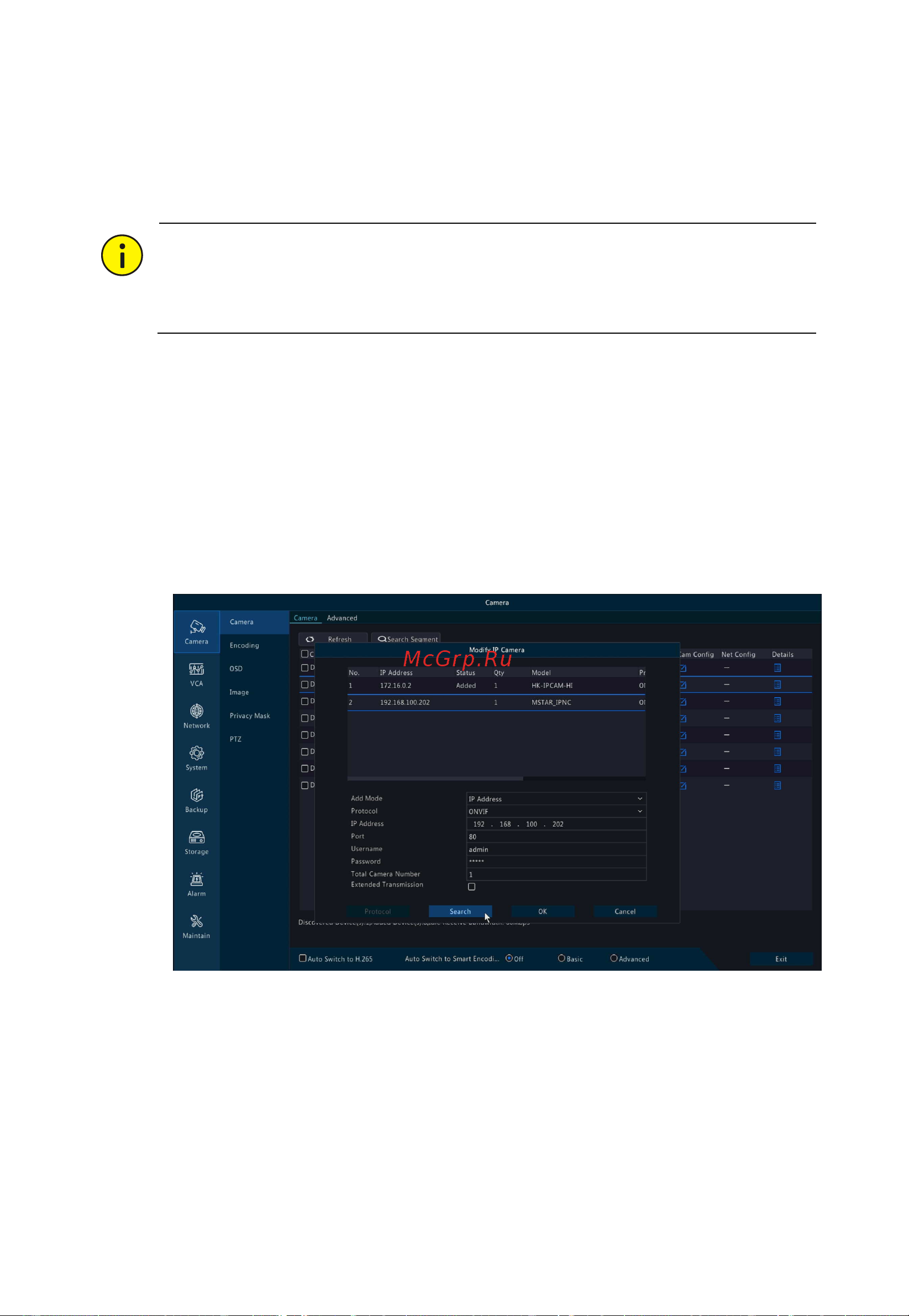

1. Click Menu > Camera > Camera. The system automatically
searches for IP devices and lists the discovered.
2. (Optional) To search a specified network segment, click Search
Segment and then set the address range.
3. You may choose one of the following ways to add an IP device:
Click Add All to add all the discovered IP devices allowed (depending
on channels supported by the NVR).
