NOTE!
Automatic mapping (Auto) is recommended. Ports will conflict if not
configured properly.
For an NVR with multiple NICs, port mapping should be configured
based on the NIC specified as the default route.
3. Click Refresh and check that Active is displayed for these ports under
UPnP Status.
4. Click Apply to save the settings.
Manual Port Mapping
If your router does not support UPnP, then you need to configure internal
and external ports manually.
NOTE!
The principle of port mapping is that the internal and external ports
of the NVR are consistent with that of the router.
Some routers may require the same internal and external ports for
the NVR and the router.
1. Click Network > Basic.

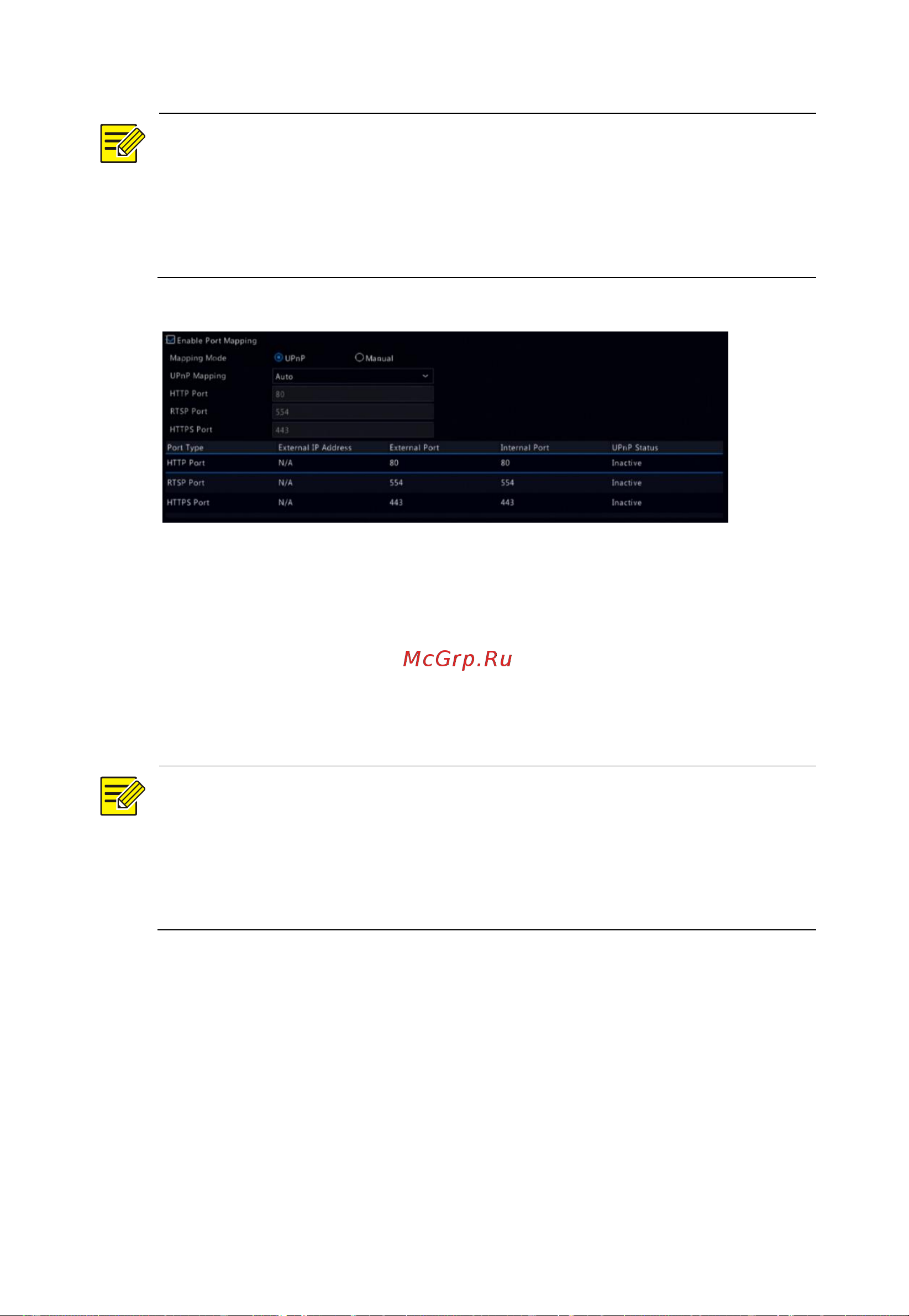

2. Select Manual for Mapping Mode, and then set external ports
manually.
