70
Recording/Snapshot Abnormal: Storage resource cannot be found,
for example, when all hard disks are removed, or when there is no
disk in disk group 1 (see Disk Group for more information).

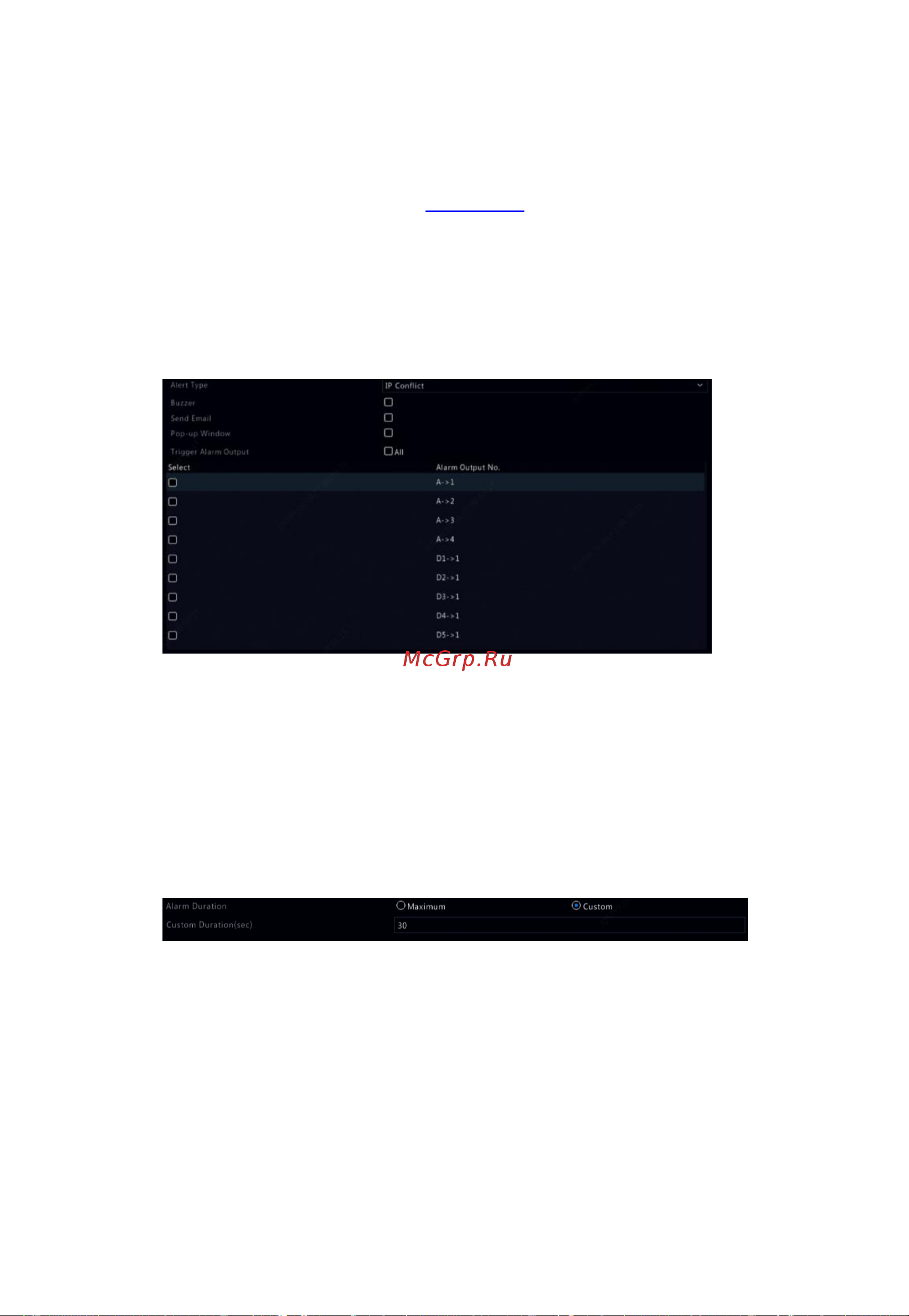

Perform the following steps to configure an alert:
1. Click Alarm > Alert.
2. Select an alert type, select the desired actions, and then select the
camera(s) for which you want to enable alarm output.
3. Click Apply to save the settings.
Buzzer
The buzzer can be triggered by alarms to alert the user. Follow the steps
to set how long the buzzer will buzz after it is triggered.
1. Click Alarm > Buzzer.
2. Set the duration as needed. The range is from 1 to 600 seconds.
3. Click Apply to save the settings.
Alarm-Triggered Actions
An alarm can trigger actions, for example, buzzer, recording, and preview.
The supported actions may vary with NVR model.
