36

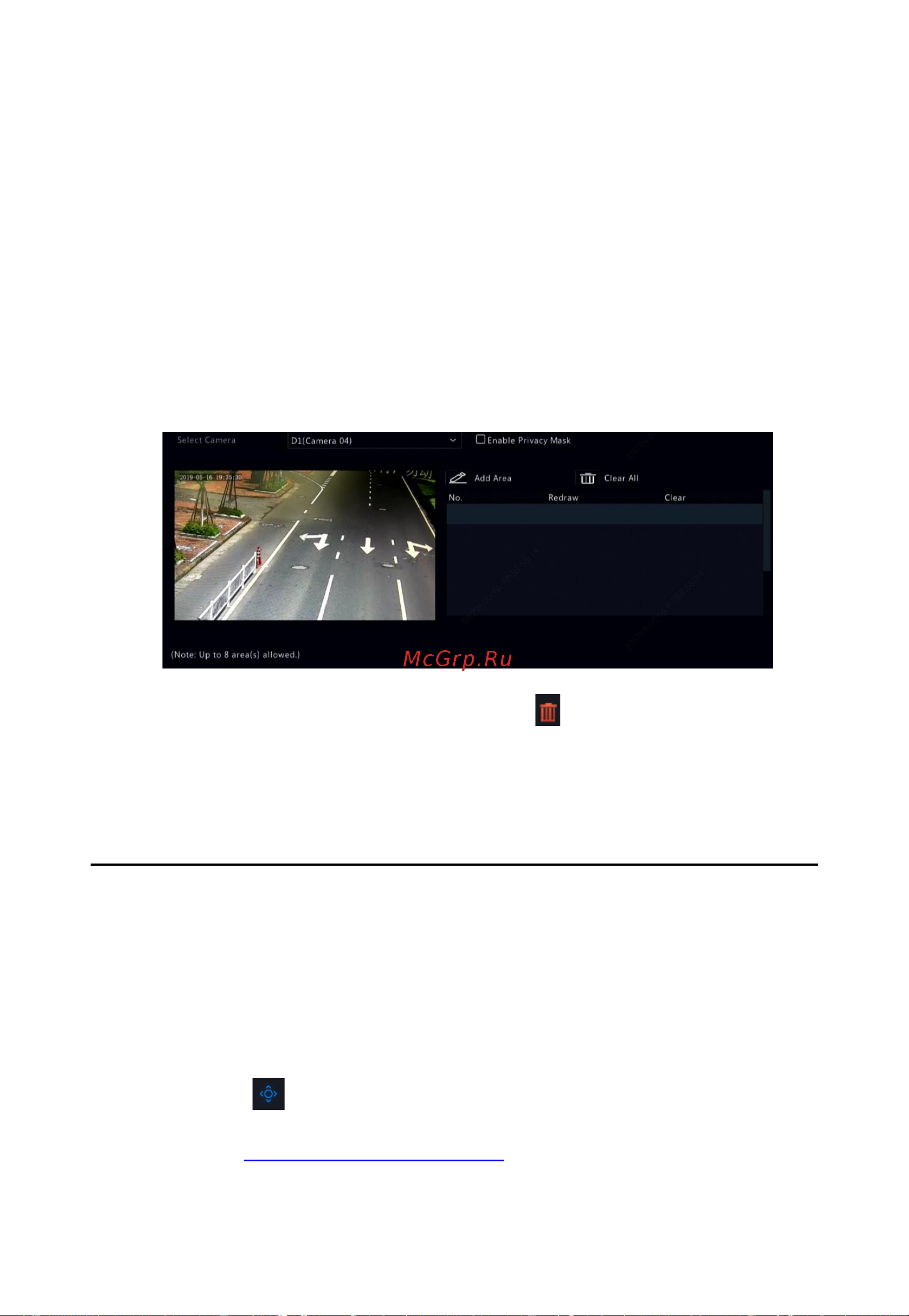

Privacy Mask Configuration
A privacy mask is an area of solid color covering certain parts of the
monitored area. Privacy mask protects specified areas of images from
being viewed and recorded. Multiple mask areas are allowed.
1. Click Camera > Privacy Mask.
2. Select the desired camera, select Enable Privacy Mask, click Add
Area and then use the mouse to specify areas to mask. Up to eight
areas are allowed. The areas are differentiated by different colors.
3. (Optional) To clear a mask area, click .
4. Click Apply to save the settings.
5 PTZ Control
PTZ (pan, tilt and zoom) control is applicable to PTZ cameras only and may
vary depending on the functions and protocols supported by the PTZ
cameras. Refer to PTZ camera specifications for more details.
PTZ Control Window and PTZ Management Window
1. Click on the window toolbar. The PTZ Control window appears.
See PTZ Control Window Buttons for detailed descriptions.
