Руководство по Эксплуатации Страница: 15

PS-link 3108SP [15/147] Device login

 Verify that the hard disk(s) are correctly installed. For detailed steps

to install a hard disk, please refer to the quick guide shipped with

your NVR.

Device Login

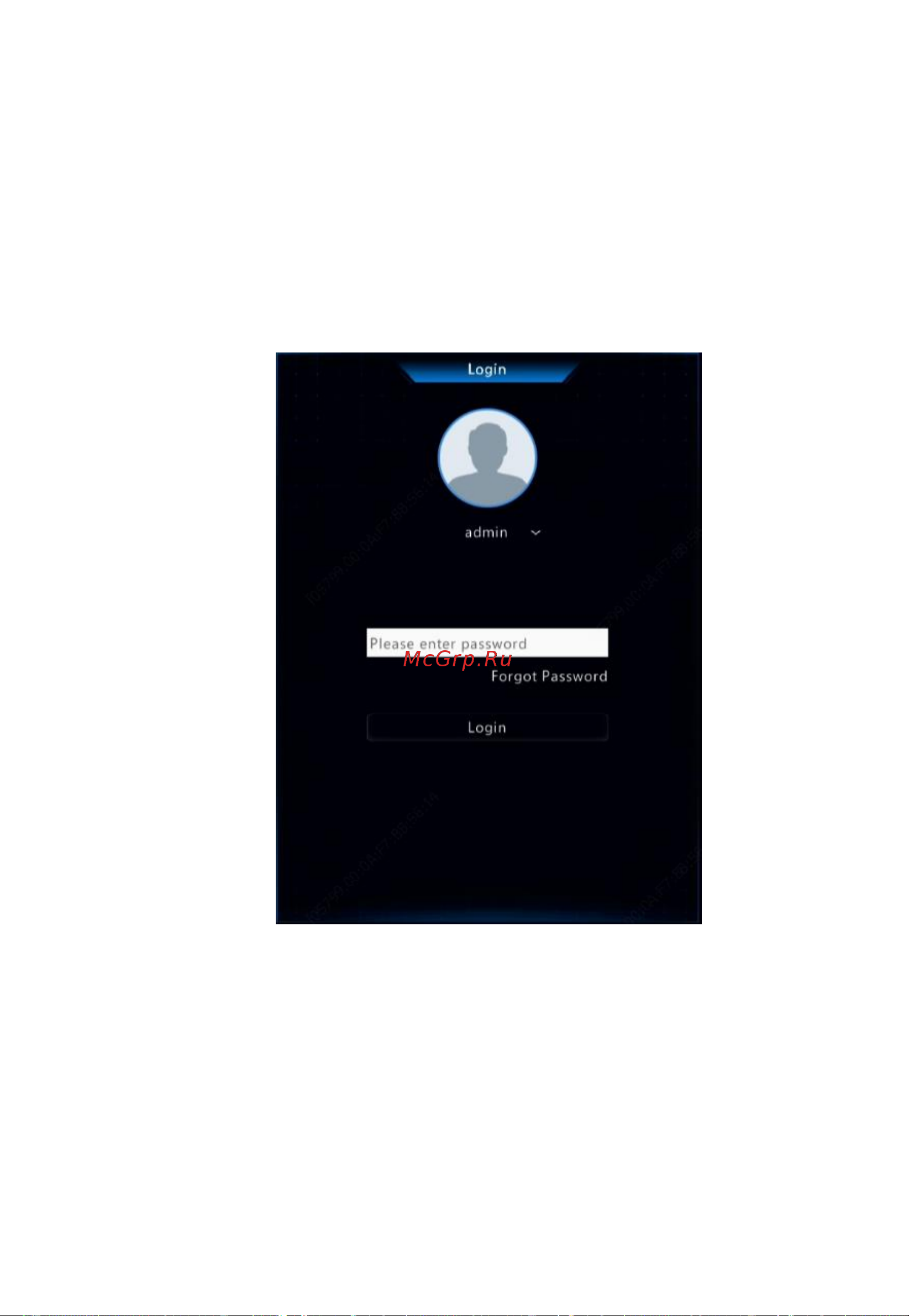

The login page appears after the NVR starts up.

1. Enter the default admin password 123456, click Login, and then click

Yes to change the password.
