PS-link 3108SP [114/147] Space allocation

107

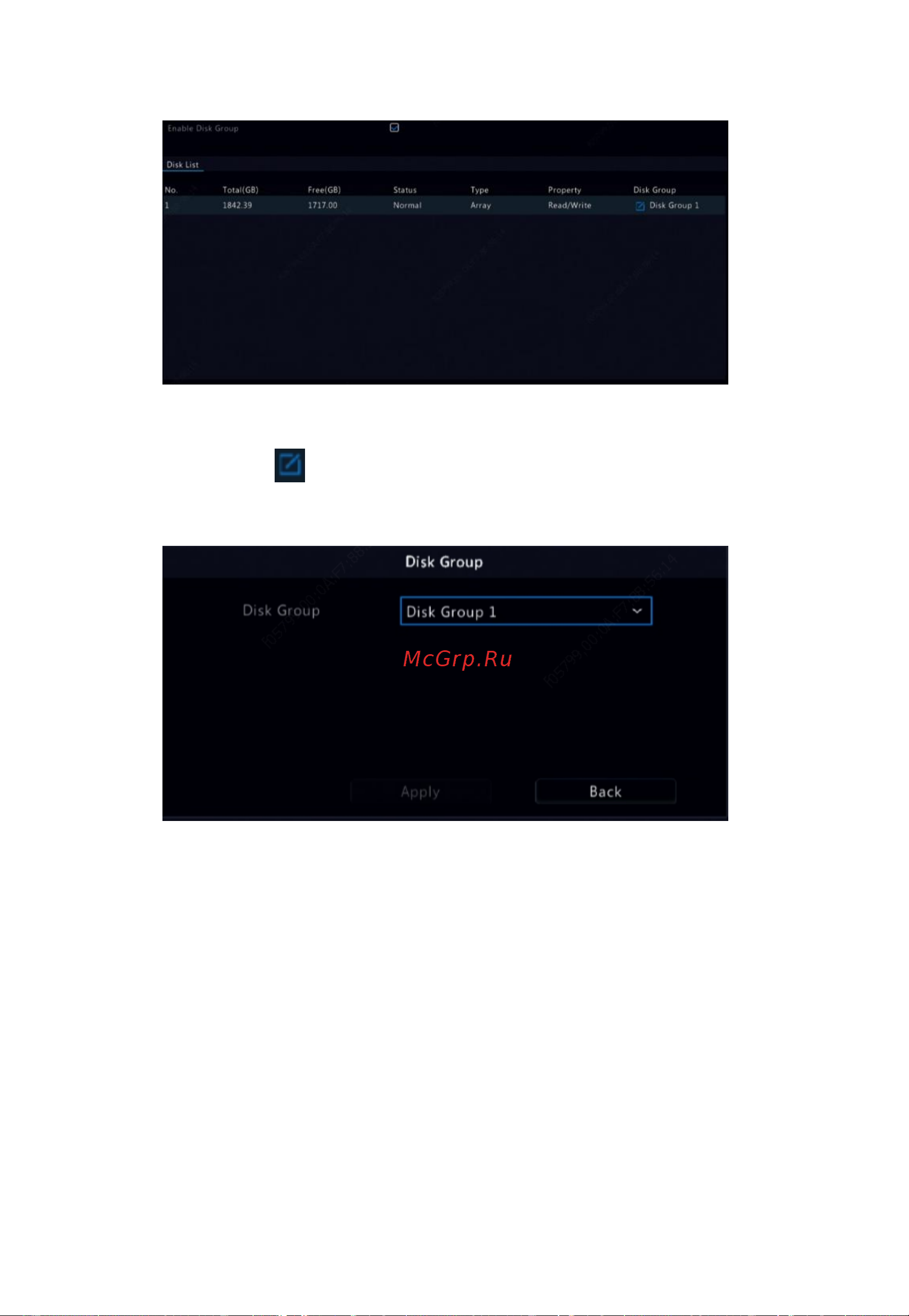

2. Select Enable Disk Group. By default all disks belong to Disk Group

1. Click for the disk to edit, and then select a group to which the

disk will be assigned.

3. Click Apply to save the settings.

Space Allocation

Allocate space to store videos and snapshots of a specified camera.

1. Click Storage > Allocate Space.
