72
Manual Buzzer
Follow the steps to stop the buzzer manually.
1. Right click and select Manual > Buzzer.
2. Select the buzzer (in Started status) and then click Stop.
10 VCA
VCA Configuration
Basic Configuration
Click VCA > VCA Config. The Basic page is displayed. Select the camera
and then select Save VCA Images if you want to use the VCA search
function.
Face Detection
Face detection is used to detect human faces in a specified surveillance
area.

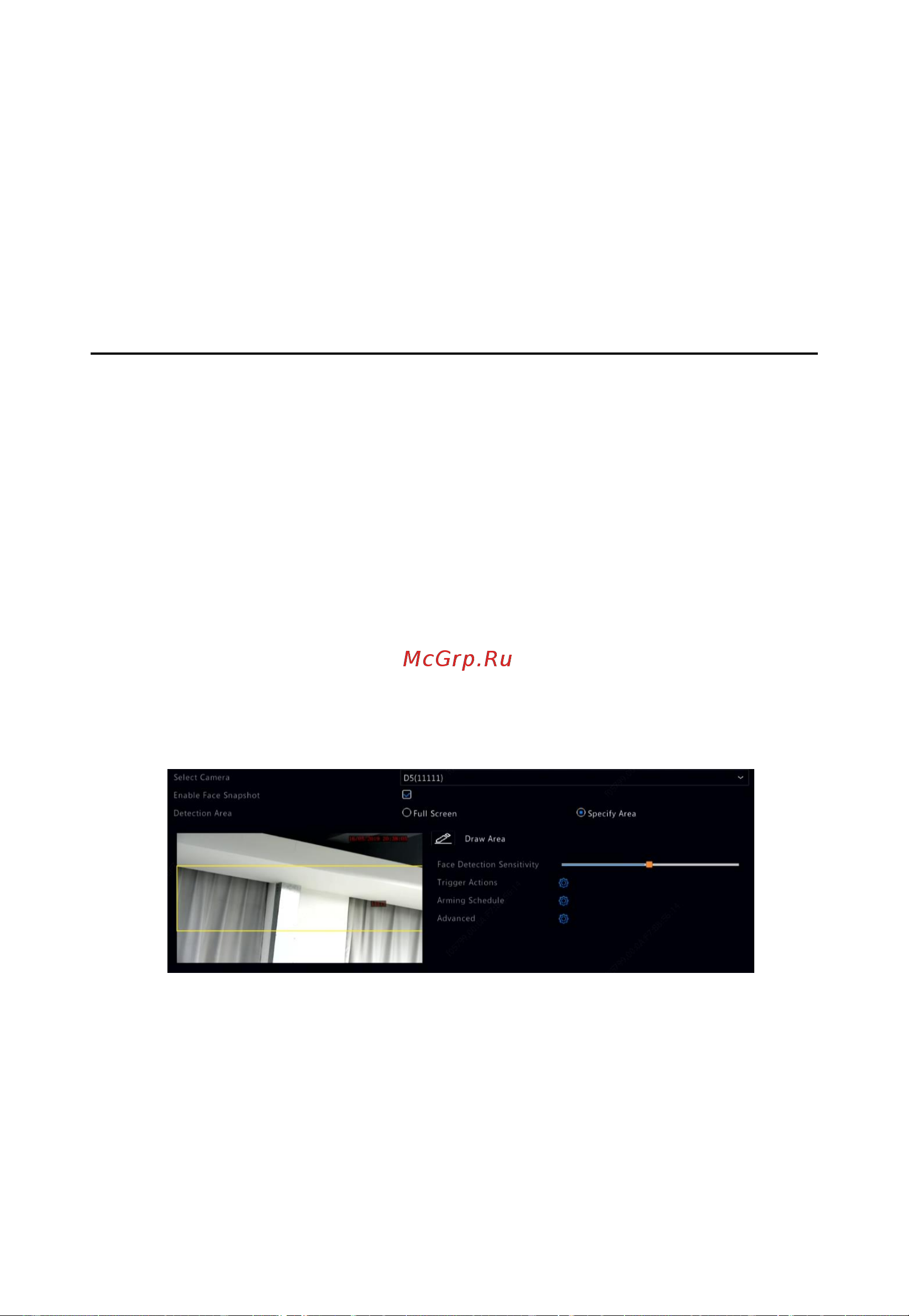

1. Click VCA > VCA Config > Face Detection.
2. Select the camera and then select Enable Face Snapshot.
3. Select the detection area. You may choose full screen or specify an
area to detect. If you select Specify Area, click Draw Area and then
draw a detection area using the mouse.
4. Set face detection sensitivity. The higher the sensitivity, the more
likely a face will be detected.
