PS-link 3108SP [132/147] Log query

125

Network Statistics

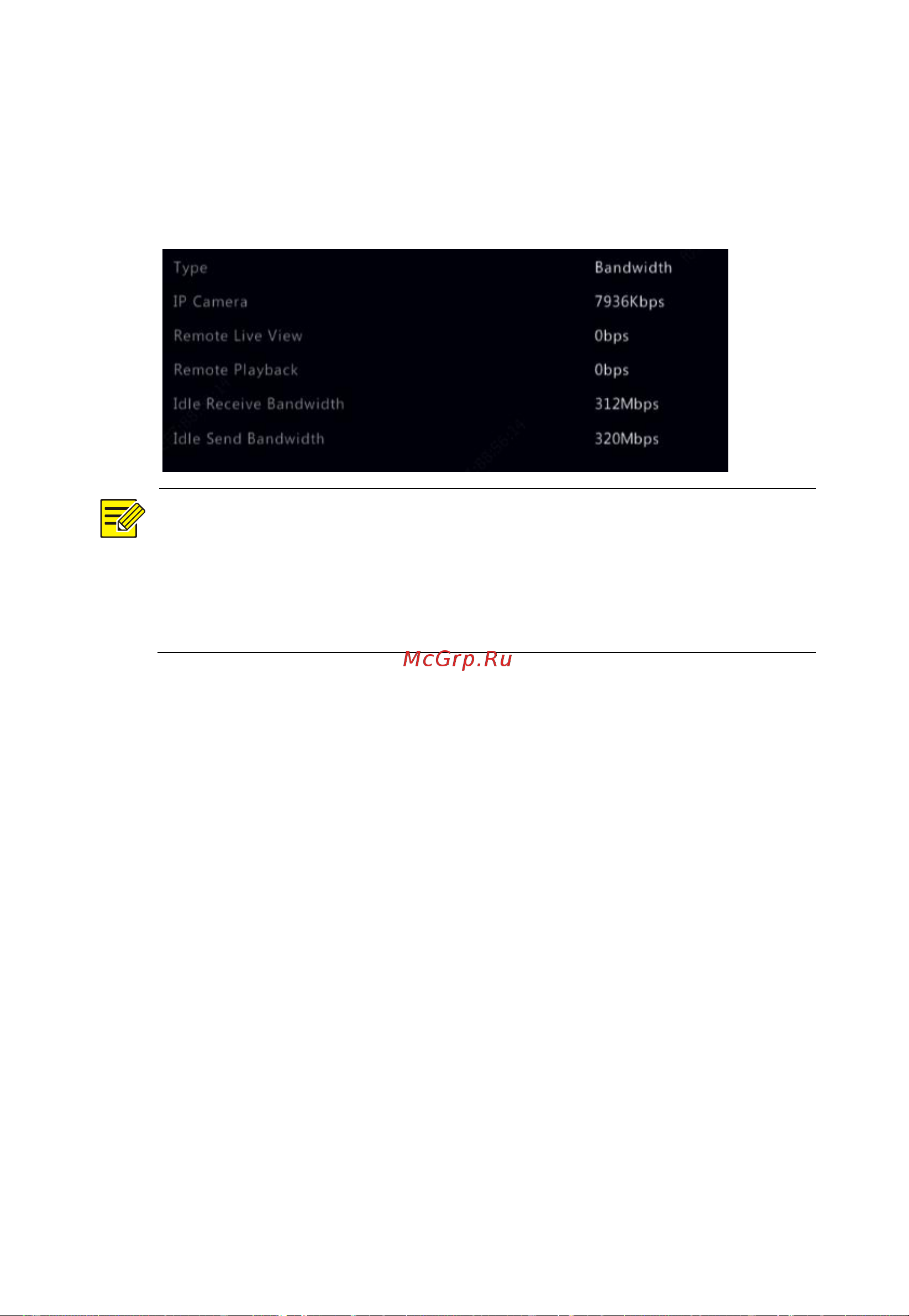

Click Maintain > Network Info > Network Statistics. Bandwidth usage

statistics are displayed.

NOTE!

 Insufficient receiving bandwidth (Idle Receive Bandwidth) may cause

the connected cameras to be offline.

 When the sending bandwidth (Idle Send Bandwidth) is insufficient,

remote live view, playback or download may fail on the NVR.

Log Query

Logs contain information about user-performed operations and device

status. By analyzing logs, you can keep track of device operation status

and view detailed alarm information.

1. Click Maintain > Log.

2. Set query conditions, including the start and end times, main type

and sub type.

3. Click Query.
