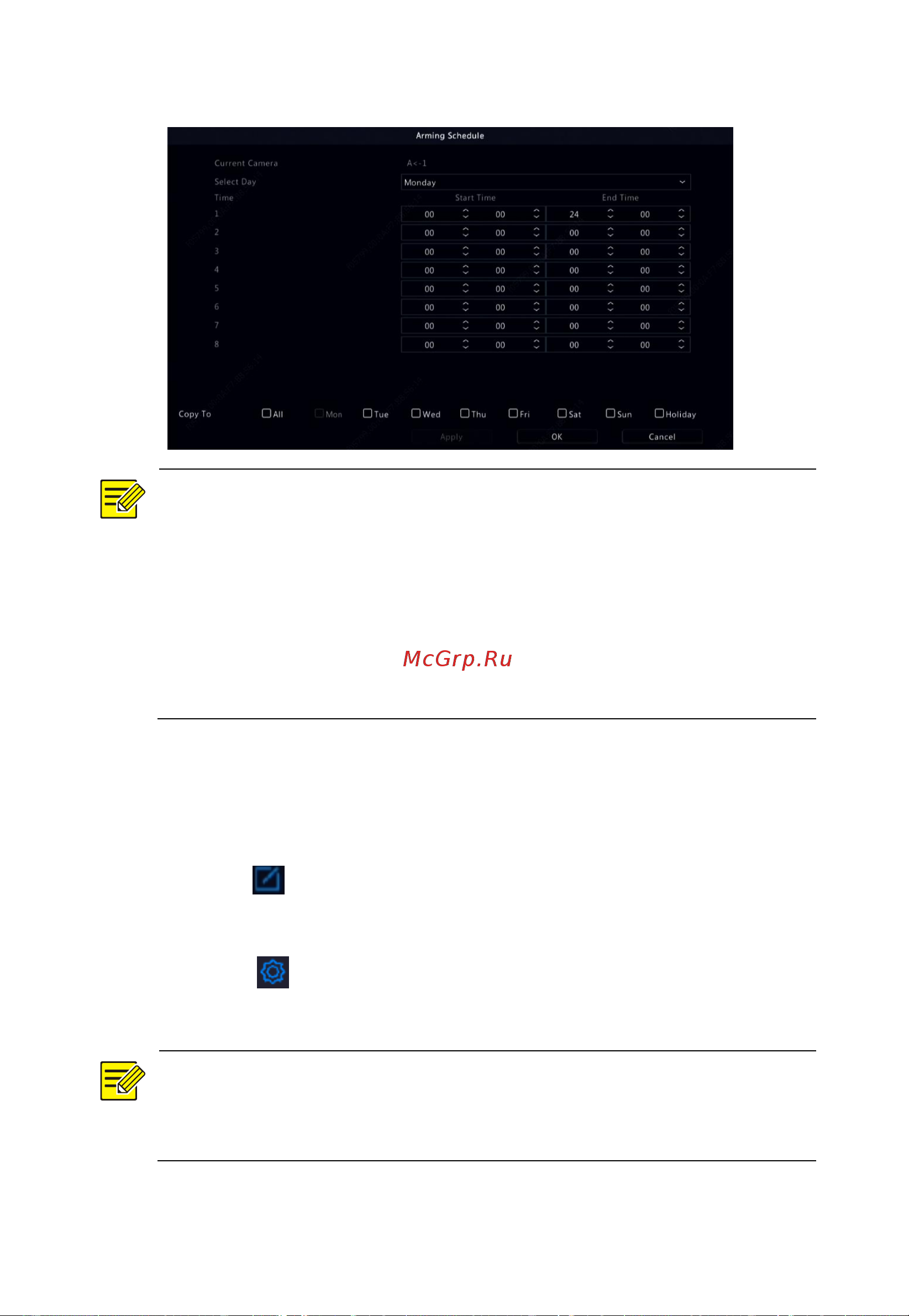

PS-link 3108SP [72/147] Alarm output

NOTE!

 The default schedule is 24×7. You may change it as needed and set

up to eight different periods for each day. Time periods cannot

overlap.

 To apply the same arming schedule to other days, select the intended

days right to Copy To.

 To apply the same settings to other cameras, click Copy, select

cameras, and then click OK.

Alarm Output

1. Click Alarm > Input/Output > Alarm Output.

2. Click under Edit for the desired camera, and then set the default

status and duration. After you have completed the settings, click OK.

3. Click under Arming Schedule and then set the time when

actions will be triggered.

NOTE!

To apply the same settings to other cameras, click Copy, select cameras

and then click OK.
