2. Click the Set button. The PTZ Management window appears (can
also be opened by clicking Camera > PTZ).

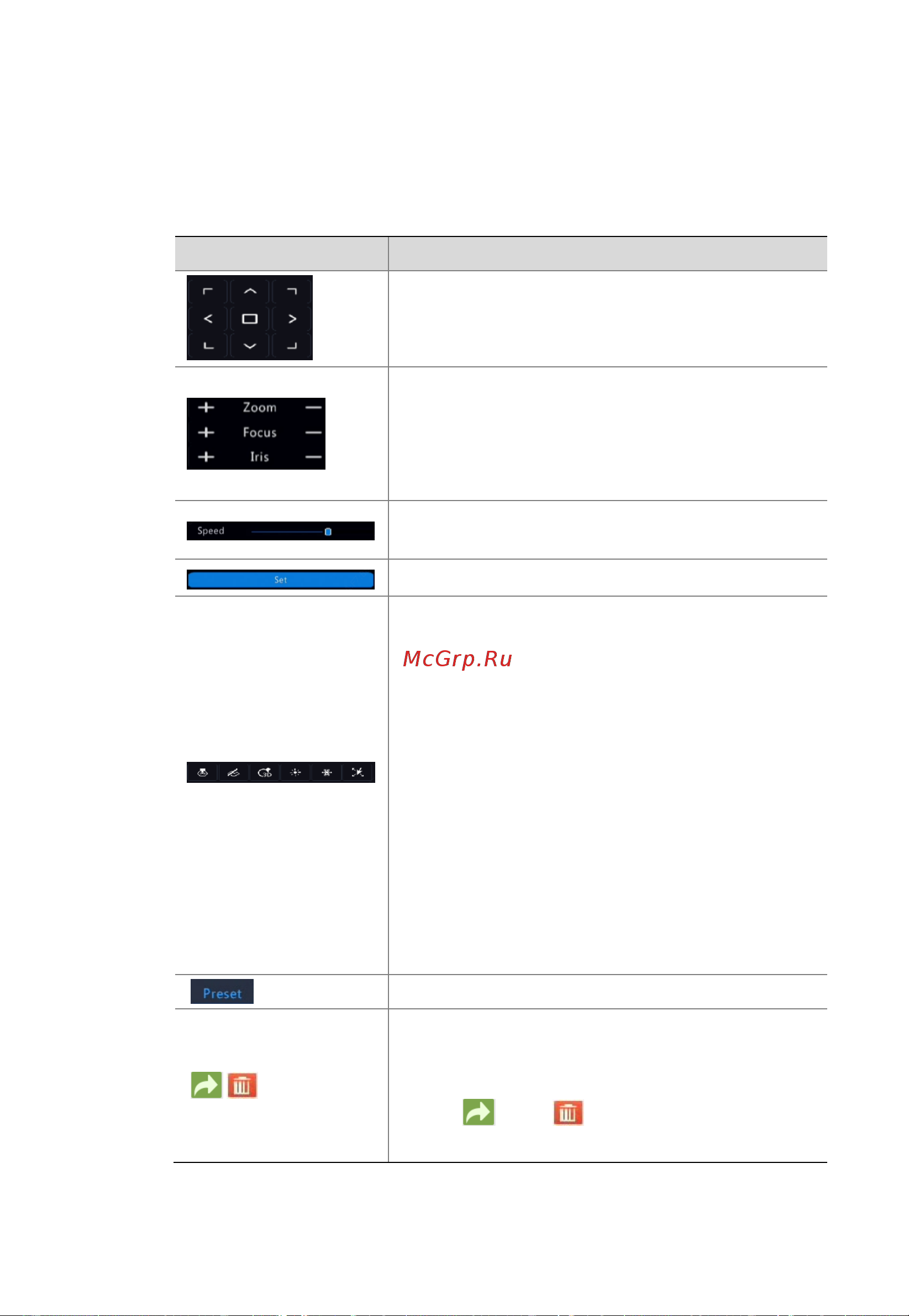

Table 5-1 PTZ Control Window Buttons
Button Description
Control the rotation direction of the PTZ camera or
stop rotation.
Adjust the zoom, focus, and iris of the PTZ camera.
Note: You can also zoom in or out using the scroll
wheel on your mouse.
Control the rotation speed of the camera. 1 means
the slowest, and 9 means the fastest.
Click to display the
PTZ Management
window.
Turn on/off the light.
Turn on/off the wiper.
Use 3D positioning.
Turn on/off the heater.
Turn on/off the function to remove snow.
Turn on/off PTZ shortcut operations.
Note:
Check that the 3D positioning, heater and
snow removal functions are supported by the
camera before using.
Use 3D positioning to zoom in or out.
Dragging from top down zooms in. Dragging
the other way zooms out.
Preset button.
Call a preset so the PTZ camera goes to the
preset position.
Delete a preset
Note: and are displayed for saved
presets only.
