46
Scheduled Snapshot
Configure scheduled snapshot under Storage > Snapshot. Scheduled
snapshot is similar to scheduled recording (see Scheduled Recording for
details). Make sure the schedule type is Normal.
Motion Detection Recording and Snapshot
When enabled, a motion detection alarm occurs if an object inside the
detection area moves to a certain extent (see Motion Detection for more
details). Motion detection alarms can trigger actions including recording
and snapshot.
Motion Detection Recording
1. Click Alarm > Motion.
2. Select the camera from the list, and then select the check box to
enable motion detection.
NOTE!
Motion detection is enabled on the NVR by default. Unless modified,
the detection area covers the full screen, and recording is triggered
only for the current camera. The settings remain if you disable motion
detection and then enable it.
An alarm icon appears in the upper right corner when motion is
detected.

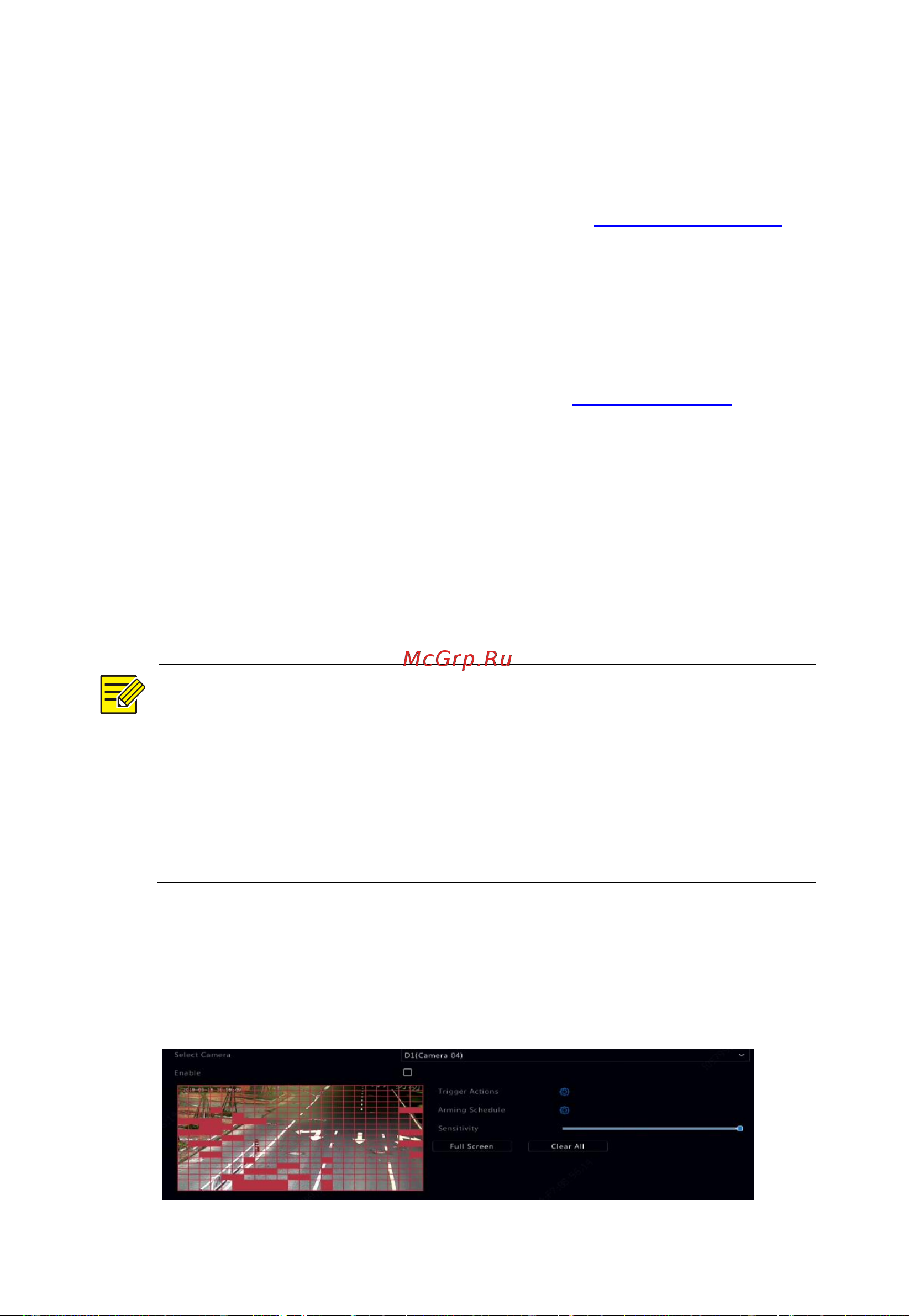

3. In the preview window on the left side, click and drag your mouse to
specify a motion detection area (red grid). Use the slider to adjust
detection sensitivity.
