54

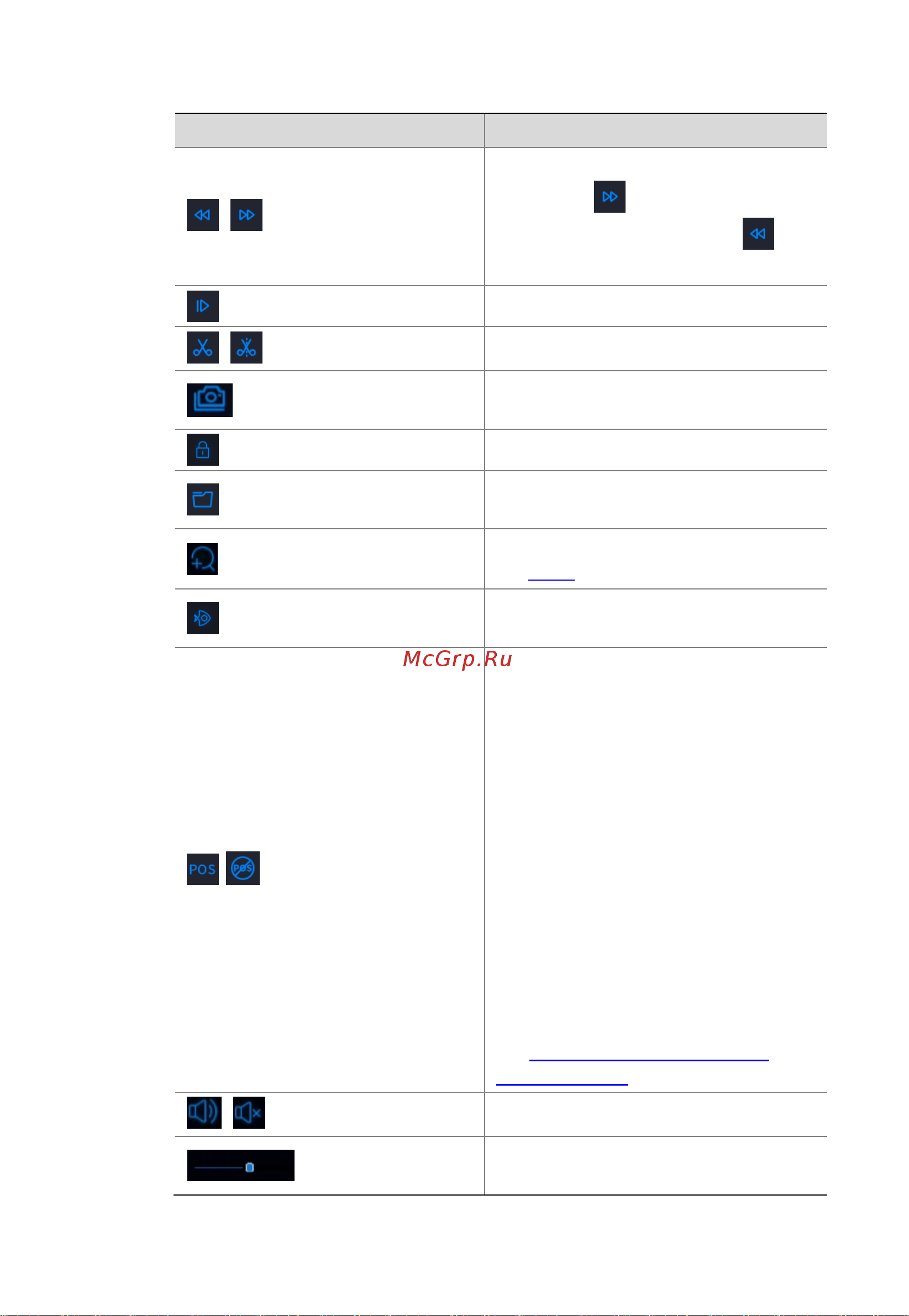

Button Description
/
Slow down or speed up.
Note: Click to restore the normal
playback speed after clicking , and
vice versa.
Forward by frame.
/
Start or stop clipping video.
Take a snapshot. The window borders
will flash white.
Lock.
Manage files (clips, snapshots, locked
files, tags).
Zoom in on images. For more details,
see Zoom
.
Set fisheye mounting mode and display
mode.
/
Enable/disable POS (available to
certain NVR models).
When enabled, POS OSD appears on
the screen, and some toolbar buttons
are deactivated.
These buttons only appear in two
playback modes: playback by camera
and data and playback by POS.
POS OSD duration (how long POS OSD
appears on screen) varies with
playback mode. For playback by
camera and date, the duration is fixed
to 5 seconds. For playback by POS, the
duration is configurable.
See Playback by Camera and Date and
Playback by POS for more details.
/
Turn off/on audio.
Adjust sound volume for the current
window.
