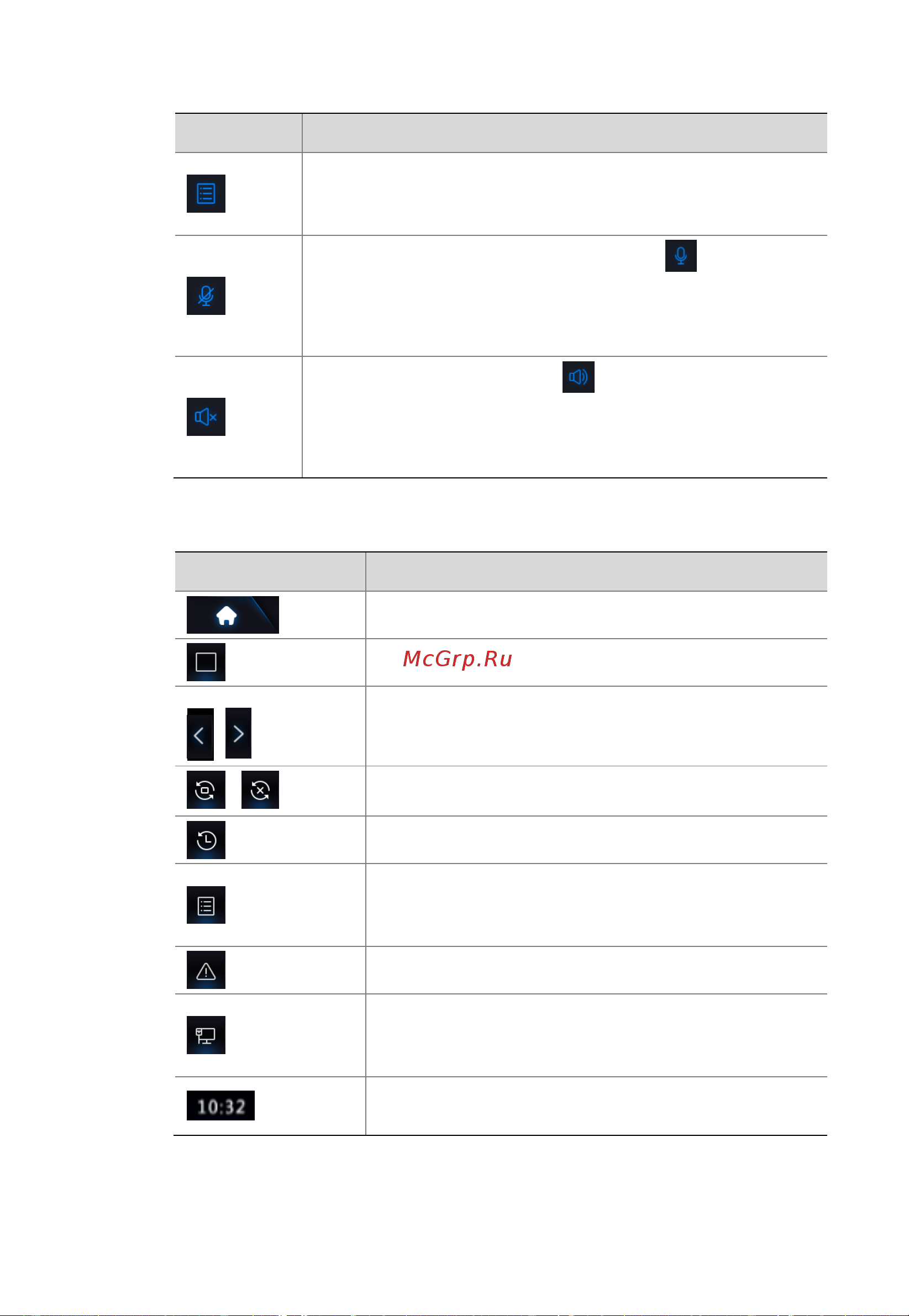

PS-link 3108SP [21/147] Screen toolbar
![PS-link 3108SP [21/147] Screen toolbar](/views2/1913196/page21/bg15.png)
14
Icon
Description
Rest your mouse pointer on the icon to view bitrate info; click
this button to view the camera ID and IP address or to change
the username and password used to connect the camera.
Start two-way audio with the camera. Click to stop. The
sound volume is adjustable.
Note: Correct audio input and output connections are
required.
Click to turn on audio. Clicking turns off audio. The sound
volume is adjustable.
Note: When you turn on audio in the current window, audio
of the previous window is turned off.
Screen Toolbar
Icon
Description
Click to access the main menu.
Select the screen layout.
/
Previous or next screen.
/
Start or stop sequence.
Playback.
Rest the mouse pointer on this icon to view encoding
information including frame rate, bit rate, and
resolution; or click to view camera status.
Click to view device alarm status and camera status.
Rest the mouse pointer on it to view NIC card
information. Or click this icon to edit basic network
settings.
Rest the mouse pointer on it to view the date. Or click
this icon to edit time settings.
