email address(es) if an alarm occurs within the time period(s) set in the

arming schedule. The email contains basic alarm information such as

alarm type, alarm time, camera ID, and camera name, etc.

Before using this function, make sure the NVR has a functional connection

to an SMTP server with which you have a valid email account. Depending

on the intended recipients, a connection to the Internet may be required.

Only certain NVR models support this function.

1. Click Network > Advanced > Email.

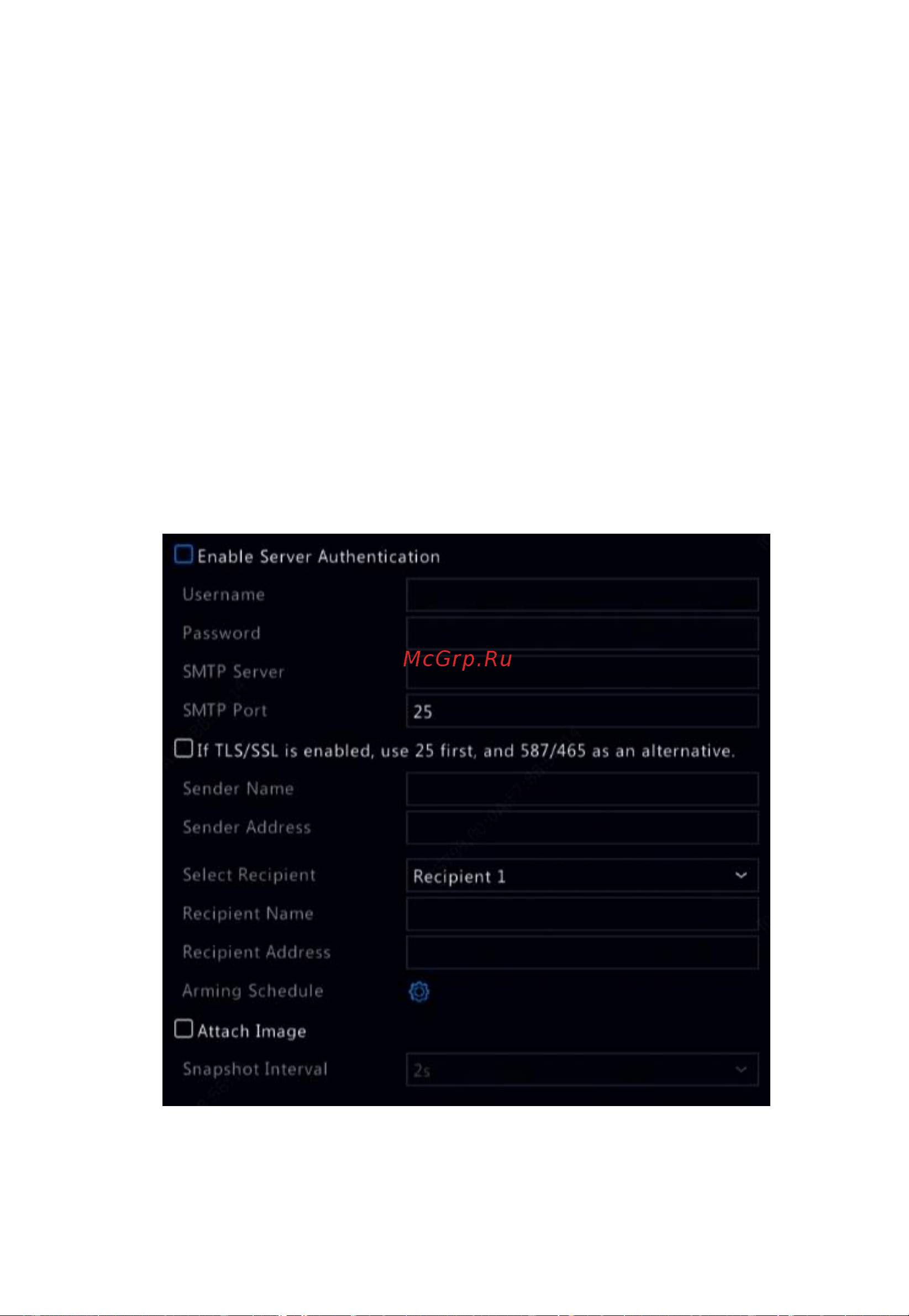

2. Configure the related parameters. If server authentication is

required, you need to enter the correct username and password.

Click Test to send a test email.
