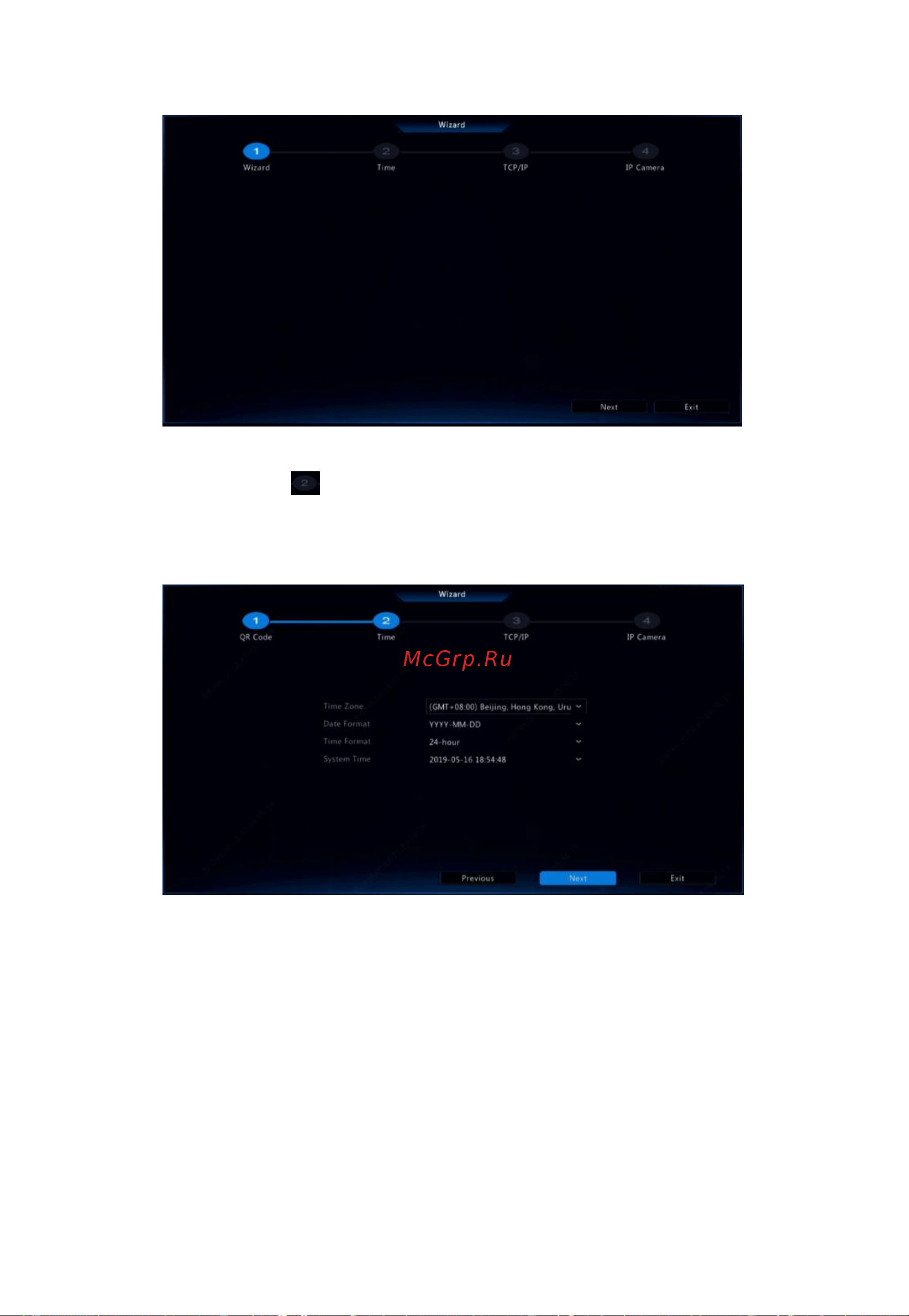

1. Enable or disable the wizard as needed and then click Next. You may

also click .

2. Select the time zone, date and time format, set the system time, and

then click Next.

3. Complete network configuration, and then click Next.
