 Load balance mode: The two NICs are bound to the same IP address

and work together to share network traffic.

 Net fault-tolerance mode: The two NICs are bound to the same IP

address. In cases where one NIC fails, the other takes over service

seamlessly from the faulty one to ensure network connectivity.

3. Click Apply to save the settings.

NOTE!

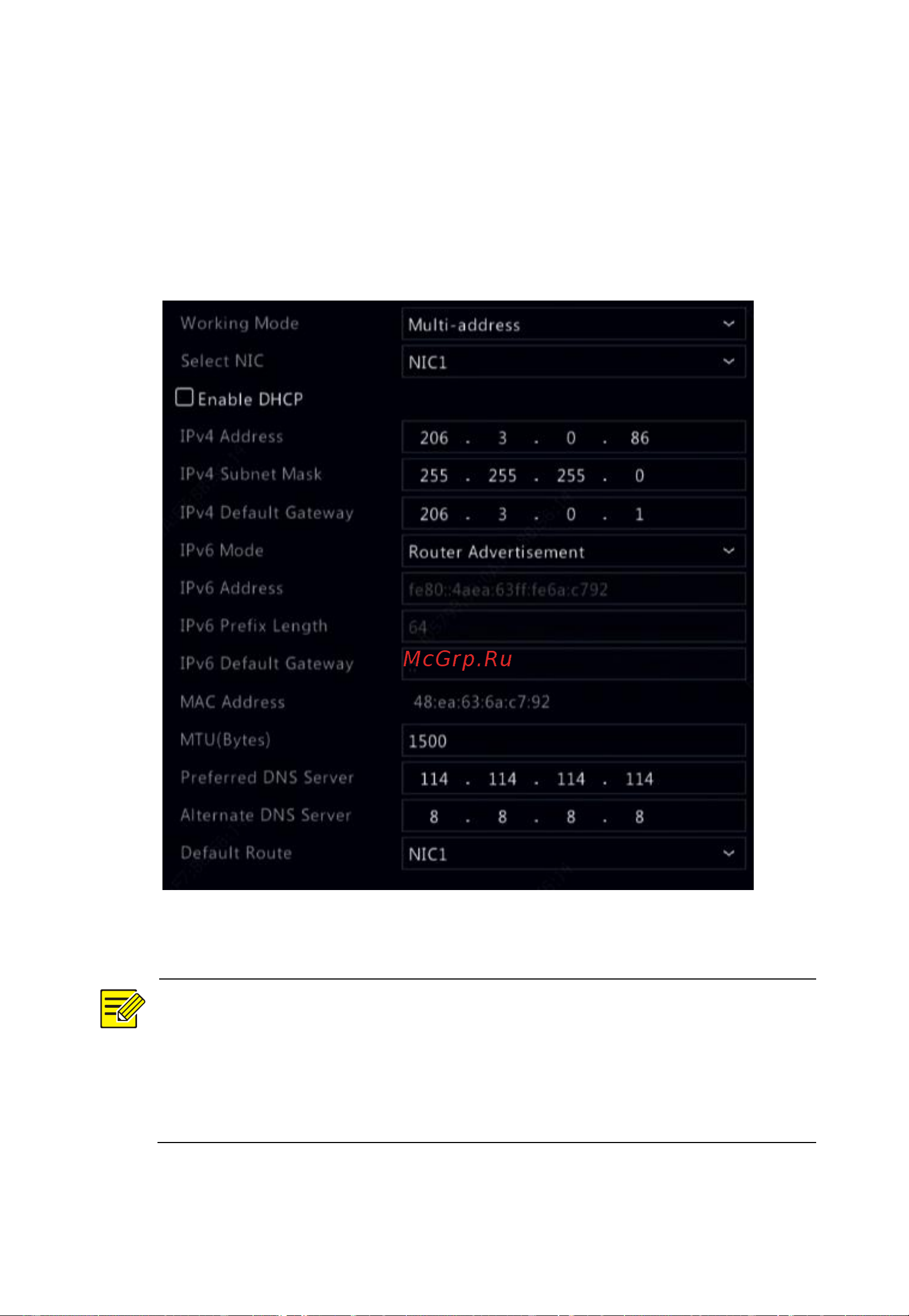

 For an NVR with multiple NICs, you can configure the NICs and

choose a default route (currently NIC1).

 If your NVR has a PoE port or a switching port, you can configure an

internal NIC IPv4 address.
