IP Control Box User Manual

Note: If you are sending the report to more than one email address,

separate the addresses with a comma. The total cannot exceed 256

characters.

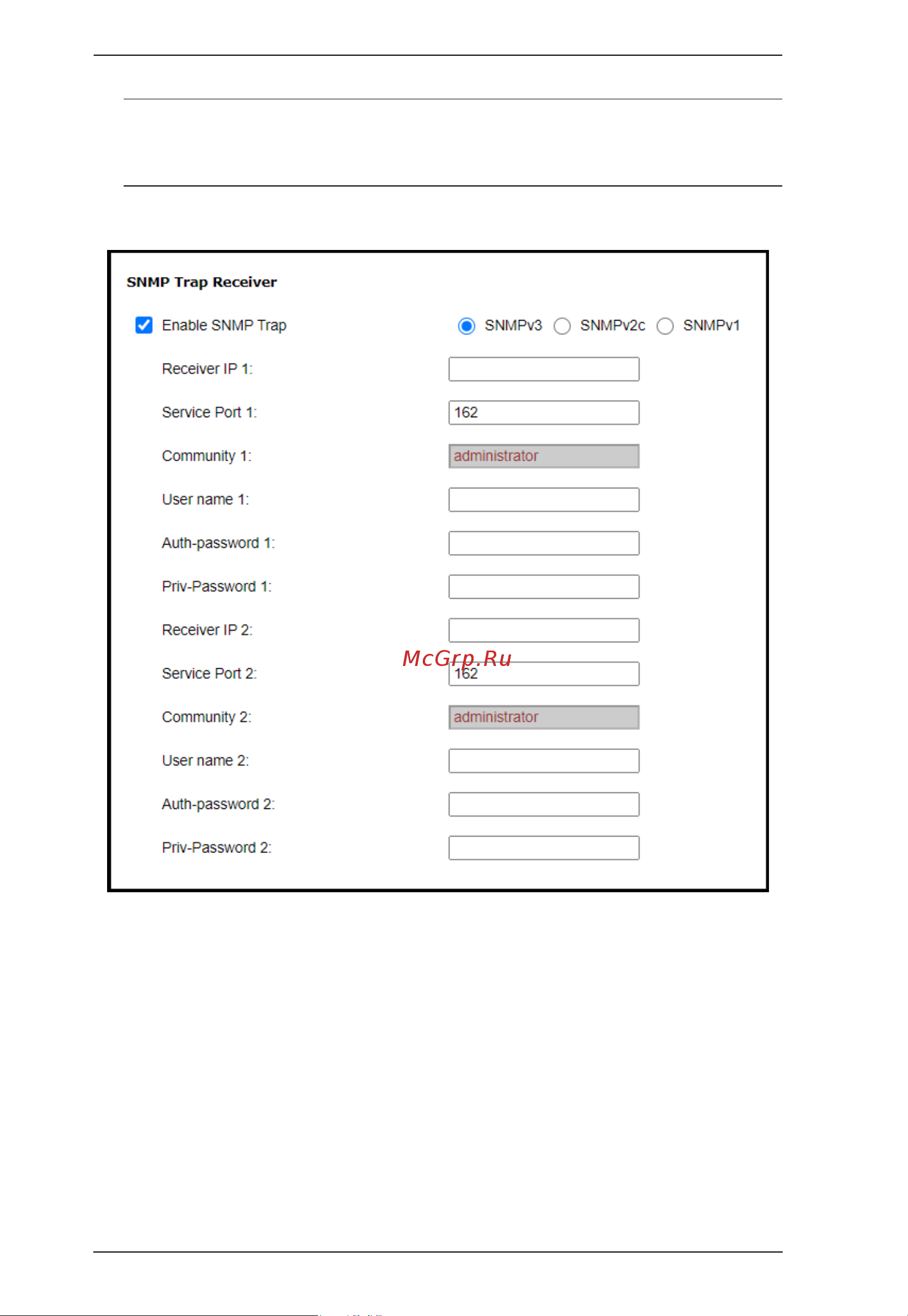

 SNMP Trap Receivers

Up to four SNMP management stations can be specified. If you want to use

SNMP trap notifications, do the following:

1. Check Enable SNMP Trap.

2. Select which version of SNMP you want to use.

3. Key in the IP address(es) and the service port number(s) of the

computer(s) to be notified of SNMP trap events. The valid port range is

1–65535. The default port number is 162.
