Epson WorkForce Pro WF-M5690DWF [103/187] Checking the received faxes on the lcd screen
![Epson WorkForce Pro WF-M5690DWF [103/187] Checking the received faxes on the lcd screen](/views2/1168438/page103/bg67.png)
Converts received documents into PDF format and saves them in a memory device connected to the
printer. Once the received documents are saved in the memory device, they are deleted from the printer. To
print the documents automatically while saving them in the memory device, select Ye s and Pr int on the
printer.
Before using this feature, you need to create a folder in the memory device in which received documents are
saved. Select Other Settings > Create Folder to Save, and then create a folder.
Note:
Make sure the memory device is connected to the printer. If you leave the device disconnected, sending and receiving
faxes may become impossible due to a memory full error because the printer temporarily saves the received documents
while the device is disconnected.
Related Information
& “FAX Utility” on page 128
Checking the Received Faxes on the LCD Screen
You can check the received documents saved in the printer's inbox on the LCD screen.
1.
On the home screen, check the icon that lights up when there are faxes to be processed, such as new faxes and
faxes waiting to be forwarded.
2.
Enter Fax from the home screen.
3.
Select Open Inbox.
4. If the inbox has been password protected, enter the inbox password or the administrator password.
5. Select the fax to view from the list.
e contents of the fax are displayed.
❏

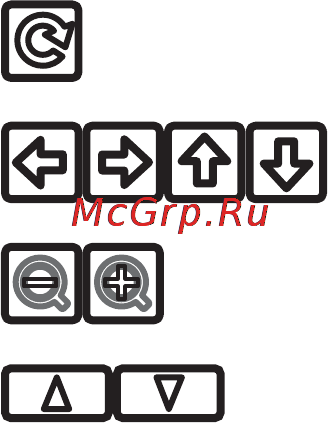

: Rotates the image to the right by 90 degrees.
❏
: Moves the screen in the direction of the arrows.
❏
: Reduces or enlarges.
❏
: Moves to the previous or the next page.
❏ View: Displays or hides the operation icons.
6. Press Menu, select whether to print or delete the document you have viewed, and then follow the on-screen
instructions.
Note:
e printer cannot receive and send faxes when the memory is full. We recommend deleting the viewed or printed
documents.
Related Information
& “Icons Displayed on the LCD Screen” on page 20
& “Fax Settings” on page 32
User's Guide
Faxing
103
