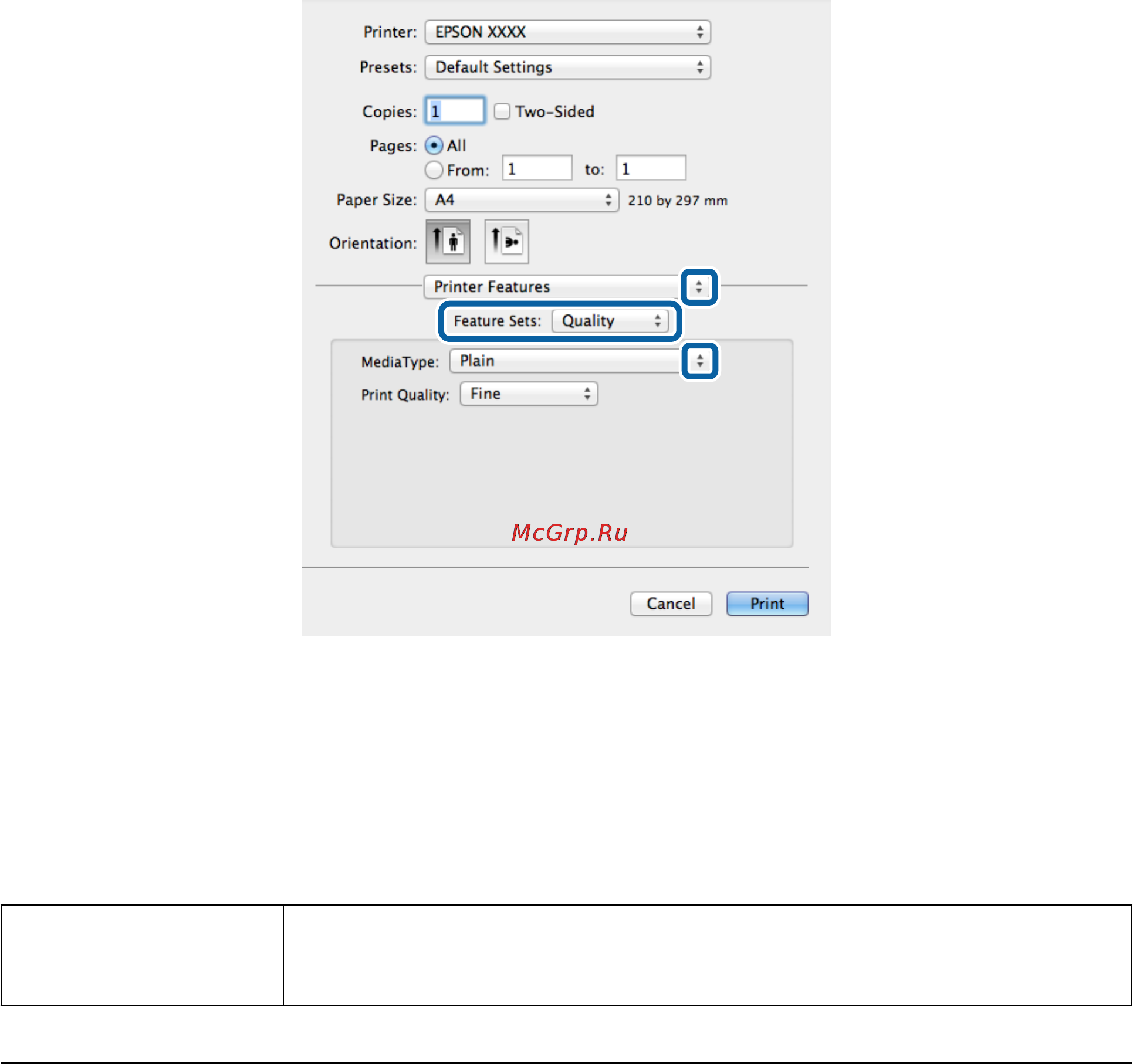

6. Select Printer Features from the pop-up menu, select Quality as the Feature Sets setting, and then select the
type of paper you loaded as the MediaType setting.
7.
Click Print.
Setting Items for the PostScript Printer Driver
Note:
e availability of these settings varies by model.
Ink Save Mode Conserves ink by reducing the print density.
Rotate by 180º Rotates the data 180 degrees before printing.
Printing from Smart Devices
Using Epson iPrint
Epson iPrint is an application that allows you to print photos, documents, and Web pages from a smart device such
as a smartphone or tablet. You can use either local print, printing from a smart device that is connected to the same
User's Guide
Printing
73
