List of Paper Types
To obtain optimum printing results, select the paper type that suits the paper.
Media Name Media Type
Control panel Printer Driver PostScript Printer
Driver
Epson Universal
Printer Driver
Copy paper, Plain
paper
Epson Bright White
Ink Jet Paper
plain papers plain papers Plain Plain
Letterhead Letterhead Letterhead Letterhead Letterhead
Recycled paper Recycled Recycled Recycled Recycled
Color paper Color Color Color Color
Preprinted paper Preprinted Preprinted Preprinted Preprinted
Epson Matte Paper-
Heavyweight
Epson Photo Quality
Ink Jet Paper
Matte Epson Matte - -
Thick paper Thick-Paper Thick-Paper Thick Thick
Envelope Envelope Envelope Envelope Envelope

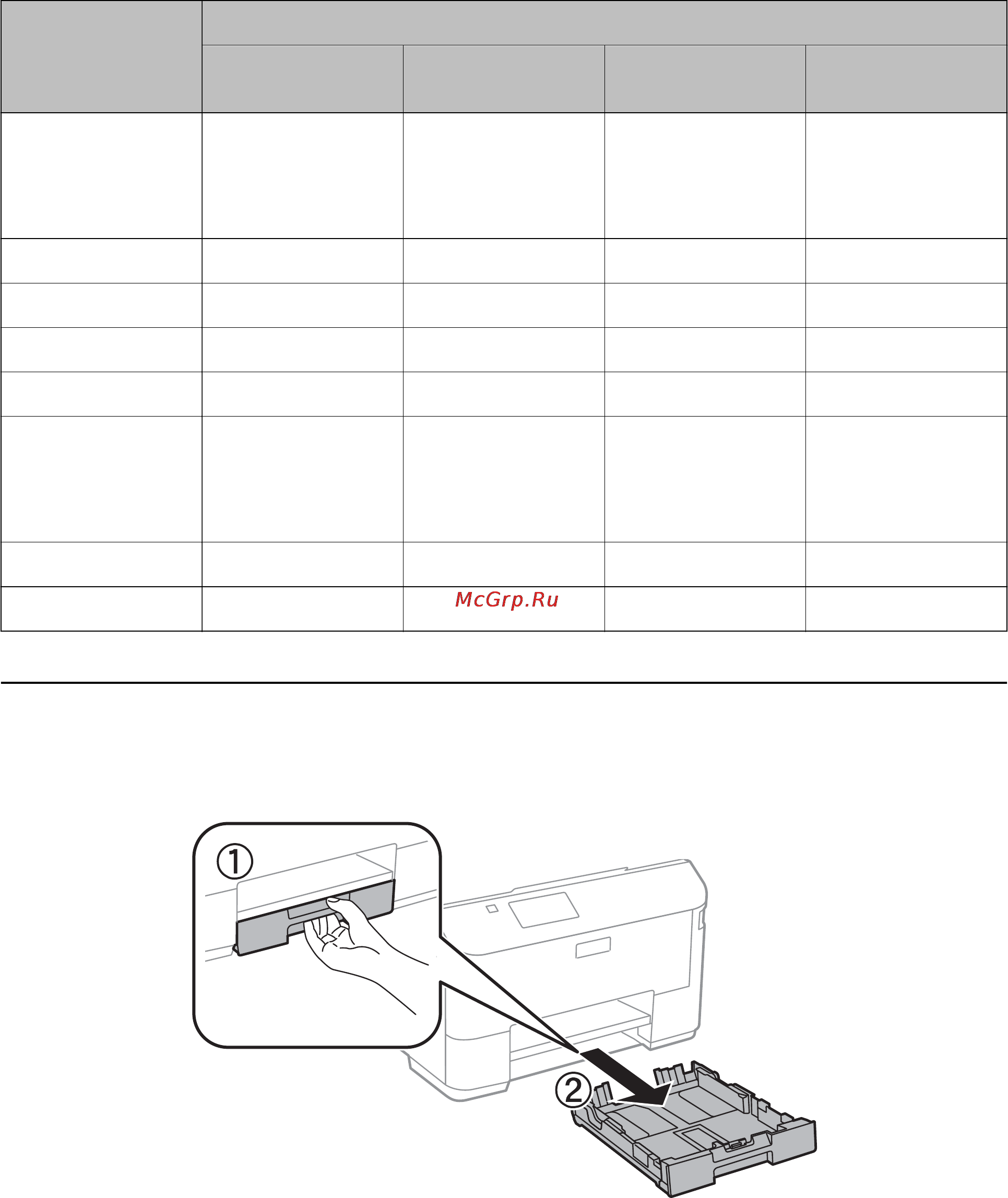

Loading Paper in the Paper Cassette
1. Check that the printer is not operating, and then pull out the paper cassette.
Note:
Remove the paper cassette cover from paper cassette 2.
User's Guide
Loading Paper
41
