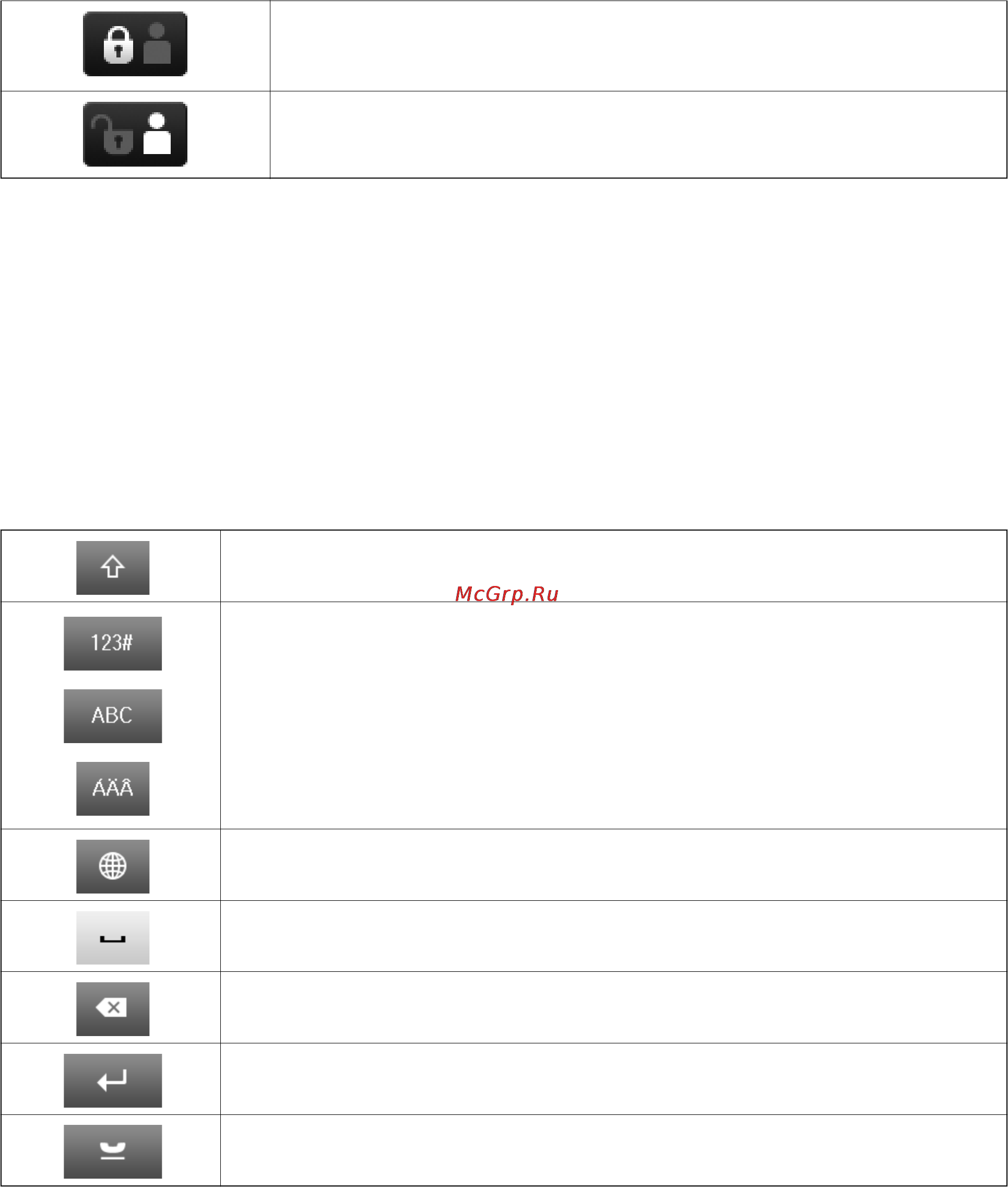

Indicates that the user restriction feature is enabled. Press this icon to log in to the printer.
You need to enter a user name and password. Contact your printer administrator for login
information.
Indicates that a user with access permission has logged in.
Related Information
& “Memory Full Error Occurs” on page 161
Icons Displayed on the Software Keyboard of the LCD Screen
You can enter characters and symbols by using the soware keyboard screen when you register a contact, make
network settings, and so on. e following icons are displayed on the soware keyboard screen.
Note:
Available icons vary depending on the setting item.
Switches between upper case and lower case.
Switches the character type.
123#: Enters numbers and symbols.
ABC: Enters letters.
ÁÄÂ: Enters special characters such as umlauts and accents.
Changes the keyboard layout.
Enters a space.
Deletes a character to the left.
Enters a character.
Enters a pause (pauses for three seconds) while dialing. A hyphen (-) is entered as the pause
mark.
User's Guide
Printer Basics
21
