Appendix
Technical Specications
Printer
Specications
Print Head Nozzle Placement Black ink nozzles: 400 × 4 rows
Weight of Paper Plain Paper 64 to 90 g/m (17 to 24 lb)
Thick Paper 91 to 256 g/m (25 to 68 lb)
Envelope Envelope #10, DL, C6: 75 to 90 g/m (20 to 24 lb)
Envelope C4: 80 to 100 g/m (21 to 26 lb)

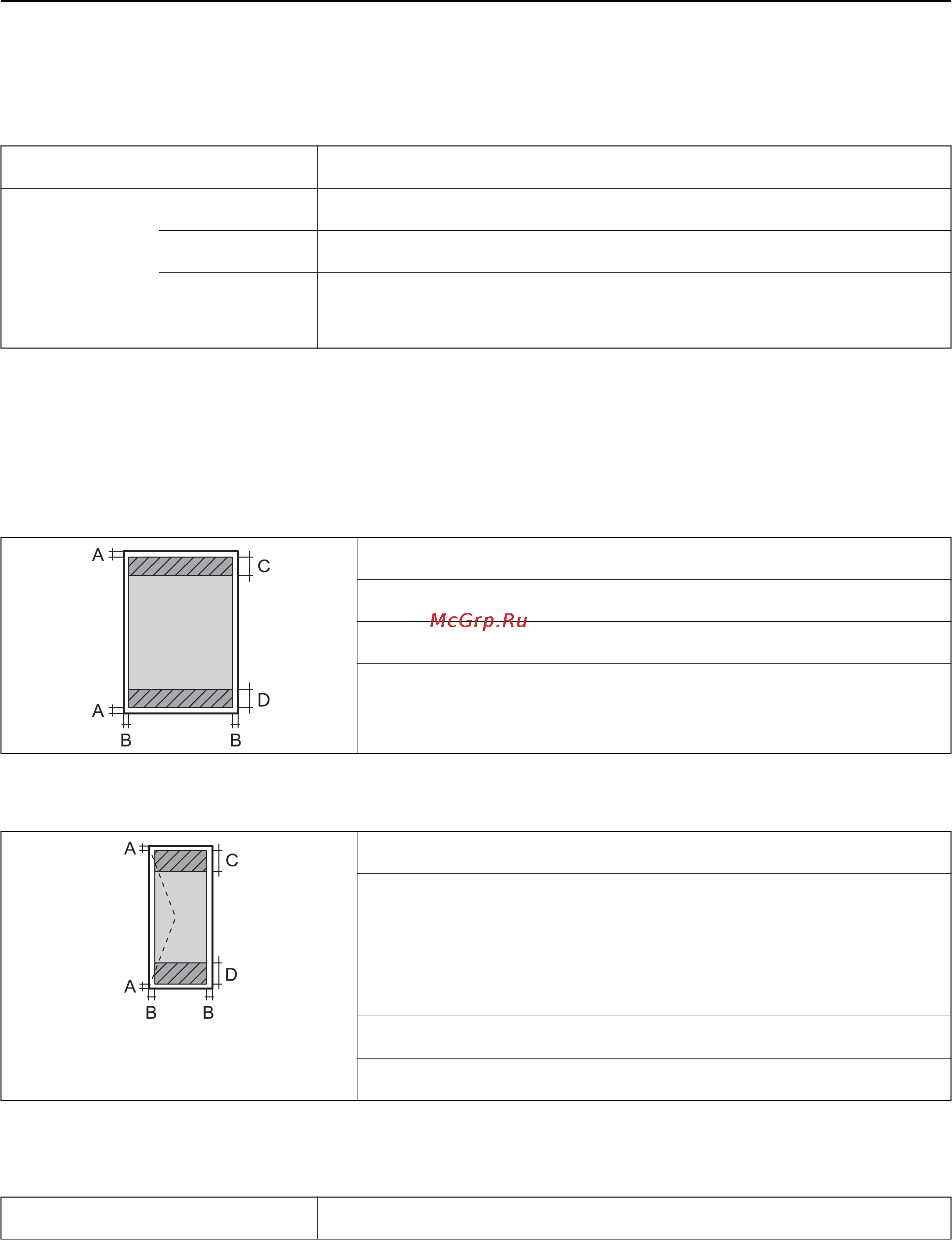

Printable Area
Print quality may decline in the shaded areas due to the printer's mechanism.
Single sheets
A 3.0 mm (0.12 in.)
B 3.0 mm (0.12 in.)
C 45.0 mm (1.77 in.)
D 50.0 mm (1.97 in.)
Envelopes
A 3.0 mm (0.12 in.)
B Except for C4:
5.0 mm (0.20 in.)
C4:
9.5 mm (0.37 in.)
C 18.0 mm (0.71 in.)
D 45.0 mm (1.77 in.)
Scanner Specications
Scanner Type Flatbed
User's Guide
Appendix
166
