❏ Orientation: Select the orientation you set in the application.
❏ Paper Type: Select the type of paper you loaded.
Note:
When printing on envelopes, select Landscape as the Orientation setting.
7.
Click OK to close the printer driver window.
8.
Click Print.
Related Information
& “Available Paper and Capacities” on page 39
& “Loading Paper in the Paper Cassette” on page 41
& “Loading Paper in the Rear Paper Feed” on page 44
& “List of Paper Types” on page 41
& “Authenticating Users in the Printer Driver when User Feature Restriction Is Enabled (for Windows Only)” on
page 53
Printing Basics - Mac OS X
Note:
Operations dier depending on the application. See the application's help for details.
1. Load paper in the printer.
2.
Open the le you want to print.

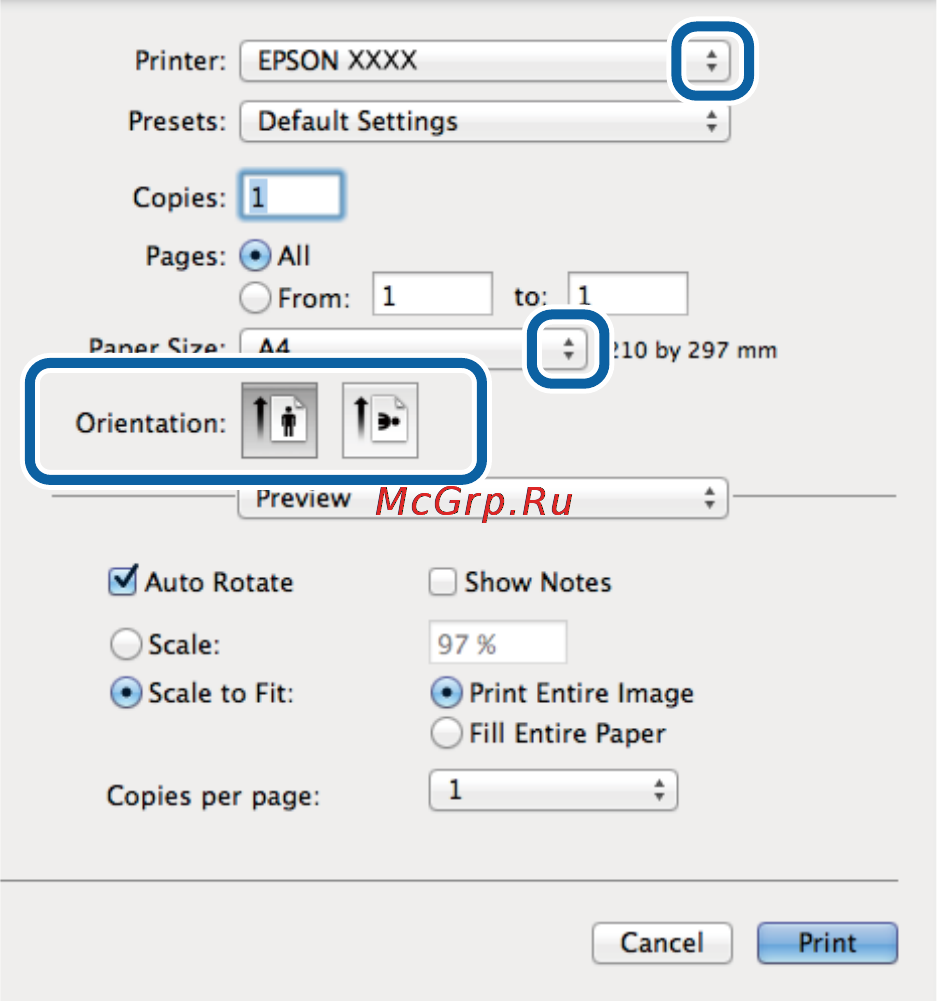

3. Select Print from the File menu or another command to access the print dialog.
If necessary, click Show Details or
d
to expand the print window.
User's Guide
Printing
55
