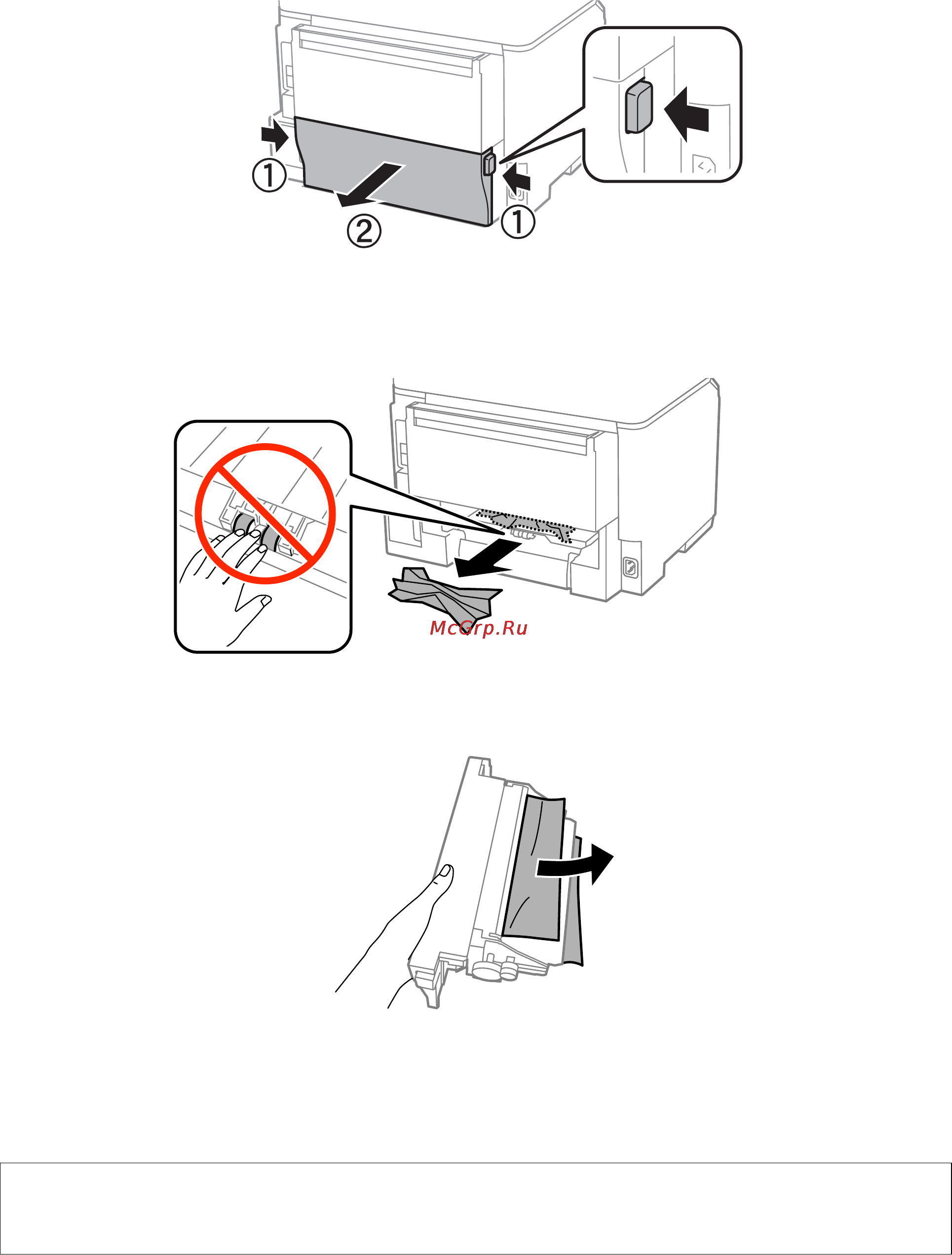

Removing Jammed Paper from Rear Cover
1. Remove the rear cover.
2. Remove the jammed paper.
3.
Remove jammed paper from the rear cover.
4.
Insert the rear cover in the printer.
Removing Jammed Paper from the ADF
!
Caution:
Be careful not to trap your
ngers
when closing the document cover. Otherwise you may be injured.
User's Guide
Solving Problems
145
