K
Starts printing, copying, scanning, and sending a fax in black and white.
L
Starts scanning and sending a fax in color.

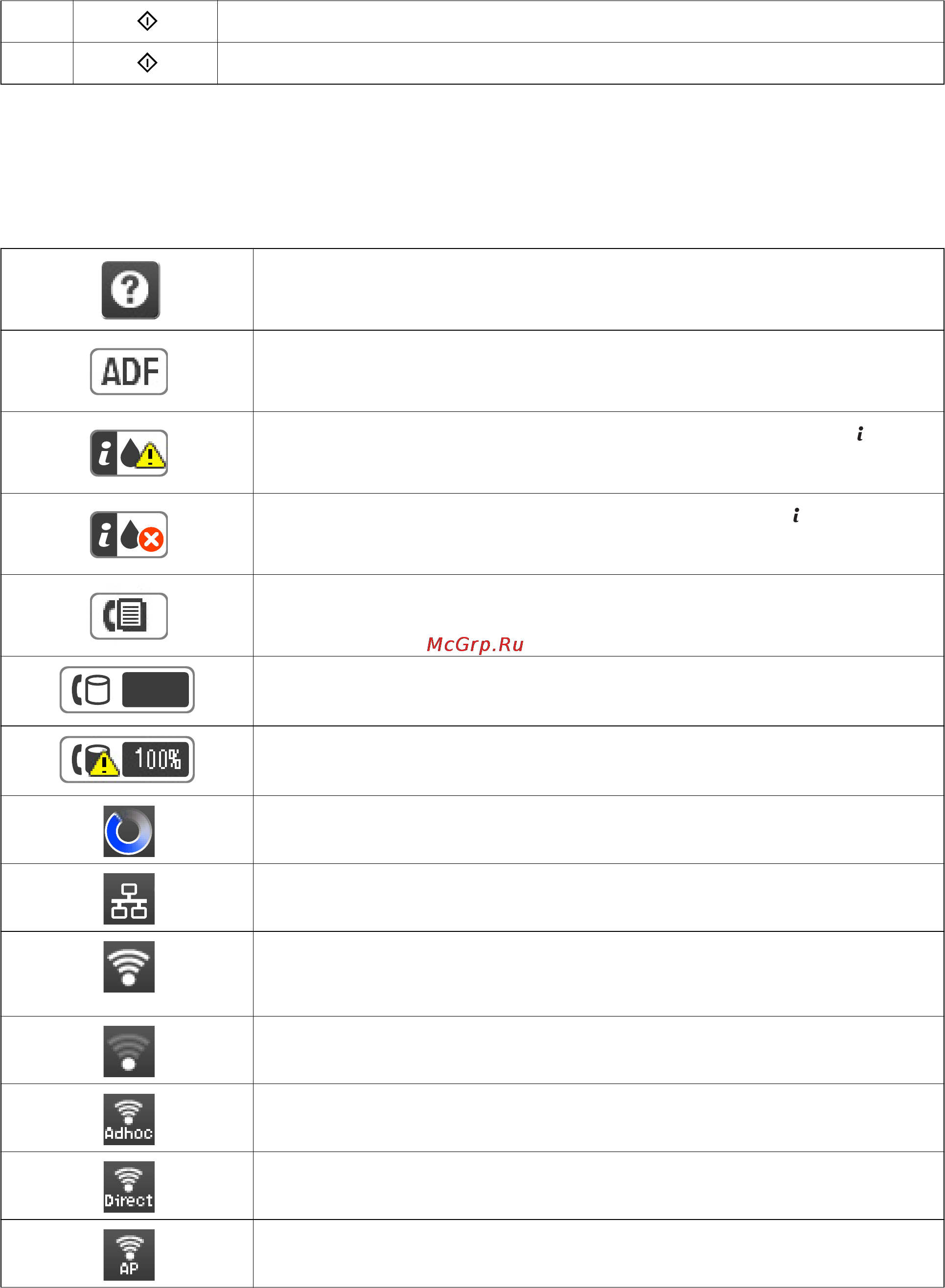

Icons Displayed on the LCD Screen
e following icons are displayed on the LCD screen depending on the printer's status. Press the network icon to
check the current network settings and make Wi-Fi settings.
Press this icon to view operating instructions such as how to load paper, and how to place
originals.
Turns on when originals are placed in the ADF.
Turns on when ink is running low or the maintenance box is nearly full. Press the button,
and then select Printer Information to check the status.
Turns on when ink is expended or the maintenance box is full. Press the button, and then
select Printer Information to check the status.
Turns on when received documents that have not yet been read, printed, or saved, are
stored in the product's memory.
Indicates fax memory usage.
Indicates that the fax memory is full. Delete unnecessary documents from the inbox.
Indicates that the printer is connecting to a wireless (Wi-Fi) or wired (Ethernet) network.
Turns on while the printer is connected to a wired (Ethernet) network.
Turns on while the printer is connected to a wireless (Wi-Fi) network. The number of bars
indicates the signal strength of the connection. The more bars there are, the stronger the
connection.
Indicates a problem with the printer's wireless (Wi-Fi) network connection, or that the
printer is searching for a wireless (Wi-Fi) network connection.
Indicates that the printer is connected to a wireless (Wi-Fi) network in Ad Hoc mode.
Indicates that the printer is connected to a wireless (Wi-Fi) network in Wi-Fi Direct mode.
Indicates that the printer is connected to a wireless (Wi-Fi) network in Simple AP mode.
User's Guide
Printer Basics
20
