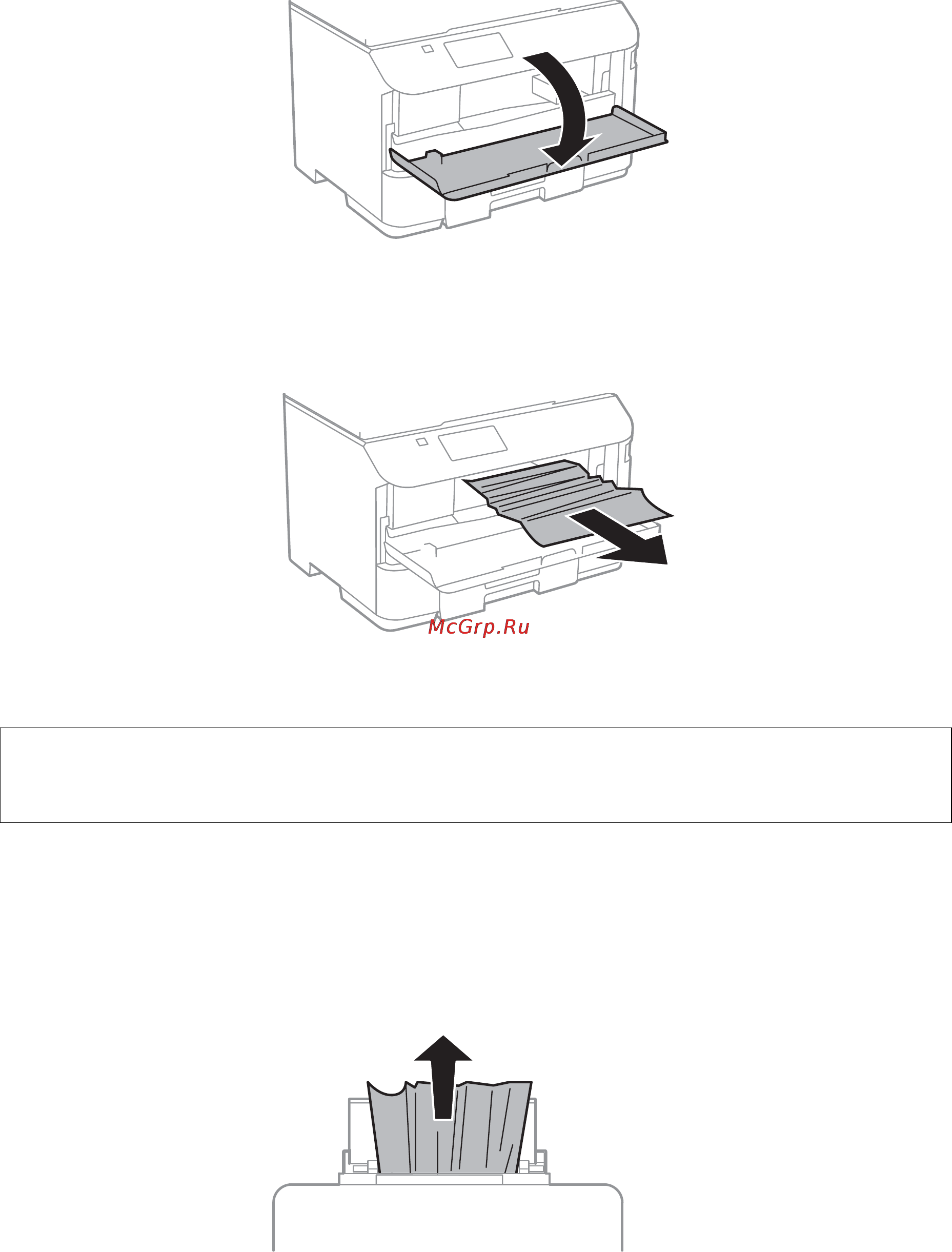

1. Open the front cover.
2. Remove the jammed paper.
c
Important:
Do not touch the parts inside the printer. Doing so may cause a malfunction.
3. Close the front cover.
Removing Jammed Paper from the Rear Paper Feed
Remove the jammed paper.
User's Guide
Solving Problems
143
