Epson WorkForce Pro WF-M5690DWF [183/187] Installing the optional units
![Epson WorkForce Pro WF-M5690DWF [183/187] Installing the optional units](/views2/1168438/page183/bgb7.png)
& “External USB Device Specications” on page 169
Installing the Optional Units
Product Name of the Optional Paper Cassette Unit
e following is the product name for the optional paper cassette unit.
250-Sheet Optional Cassette Unit
Installing the Optional Paper Cassette Units
!
Caution:
Make sure you turn
o
the printer, unplug the power cord from the printer, and disconnect any cables before starting
installation. Otherwise, the power cord may be damaged resulting in re or electric shock.
1. Turn o the printer by pressing the
P
button, and then unplug the power cord.
2. Disconnect any connected cables.
3. Remove the optional paper cassette unit from its box, and then remove any protective materials.

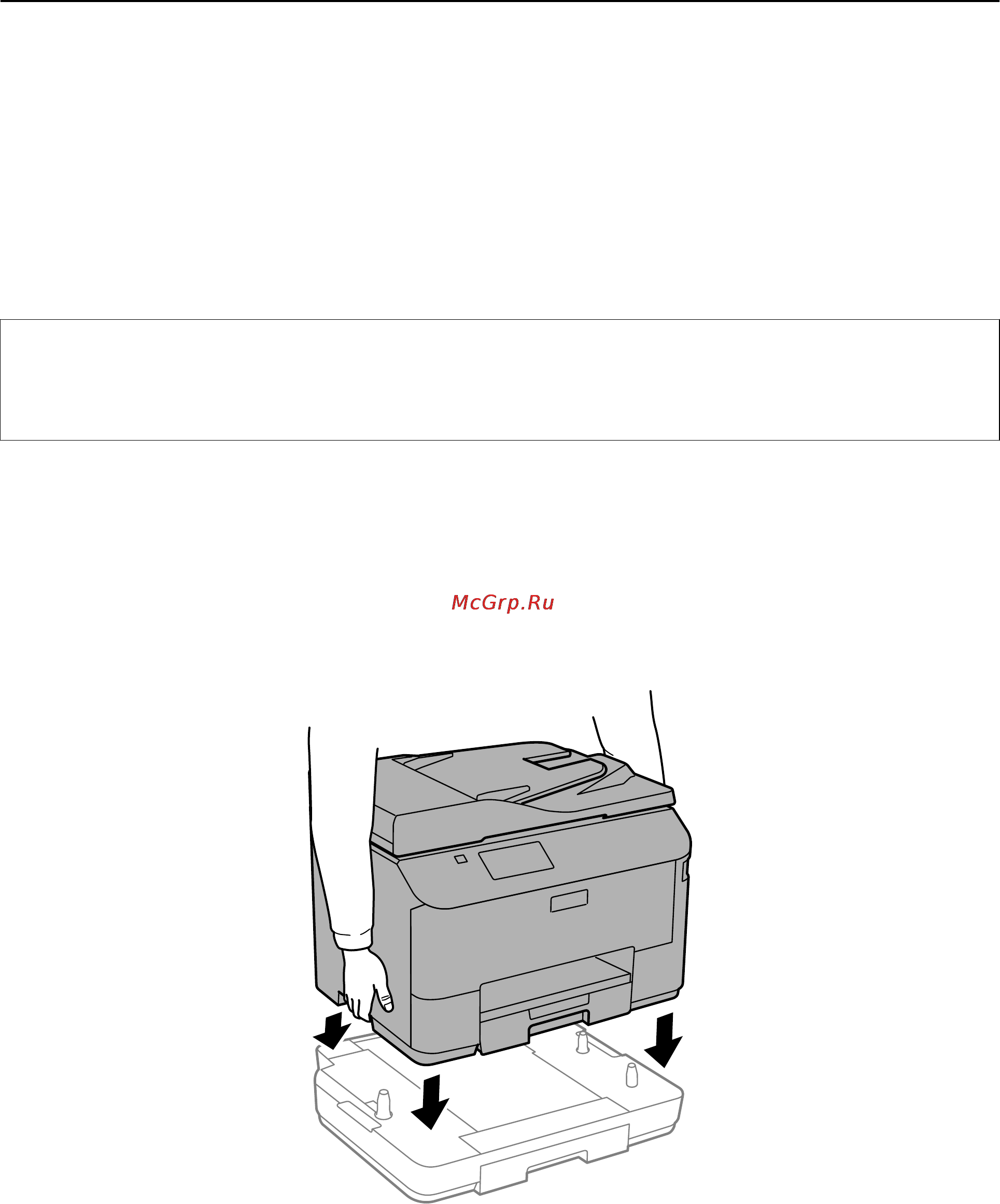

4. Lower the printer onto the optional paper cassette unit.
5. Reconnect the power cord and any other cables, and then plug in the printer.
6.
Turn on the printer by pressing the
P
button.
User's Guide
Appendix
183
