1. Access the printer driver window.
2. Click Printer and Option Information on the Maintenance tab.
3. Select Save Access Control settings, click Settings, and then enter the user name and the password.
Related Information
& “Windows Printer Driver” on page 125
Printing Basics - Windows
Note:
❏ See the online help for explanations of the setting items. Right-click an item, and then click Help.
❏ Operations may dier depending on the application. See the application's help for details.
1. Load paper in the printer.
2. Open the le you want to print.
3.
Select Print or Print Setup from the File menu.
4. Select your printer.
5. Select Preferences or Properties to access the printer driver window.
6.

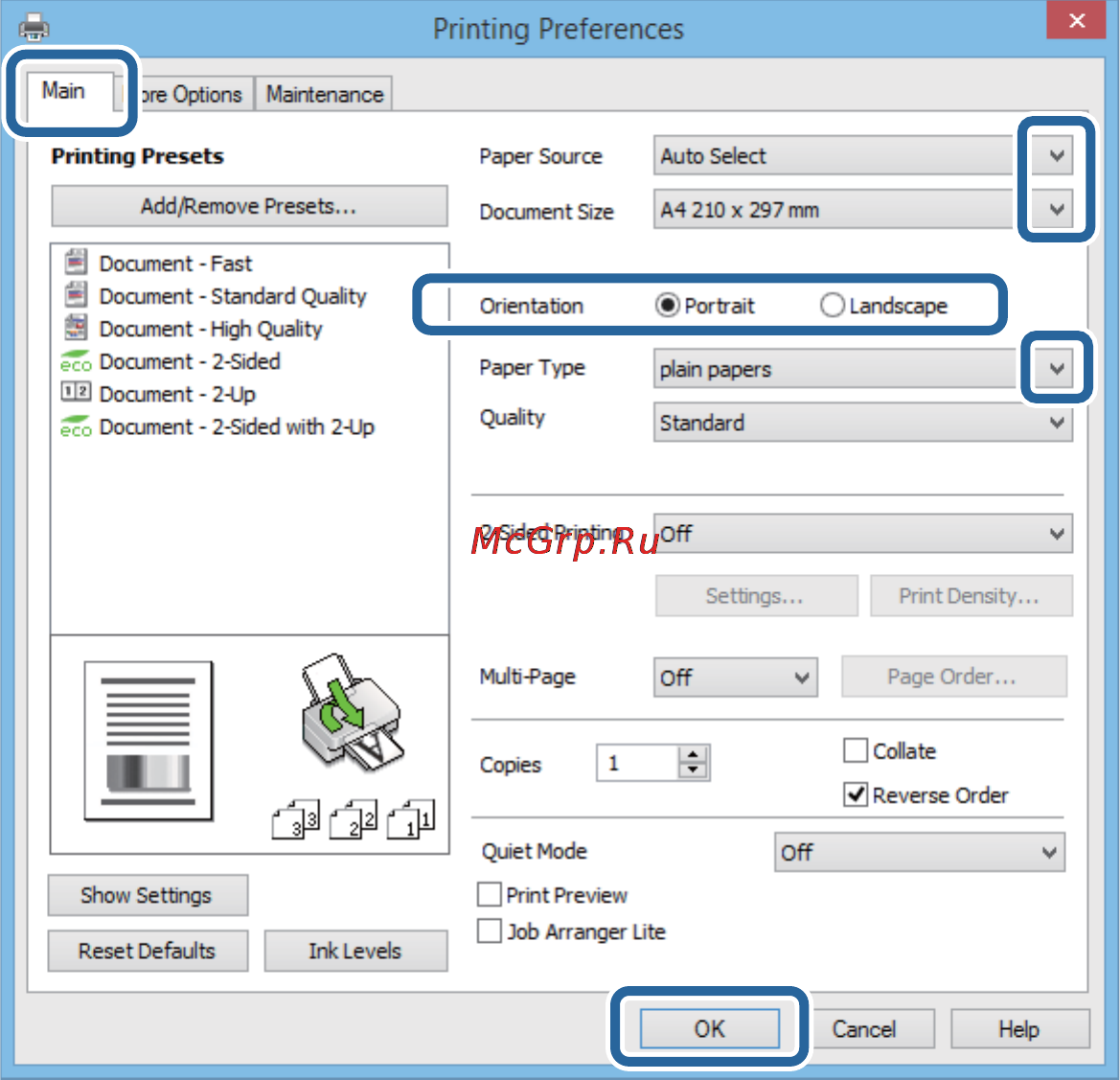

Make the following settings.
❏ Paper Source: Select the paper source in which you loaded the paper.
❏ Document Size: Select the paper size you loaded in the printer.
User's Guide
Printing
54
