Virtual Private Networking
85
N300 Wireless Dual Band ADSL2+ Modem Router DGND3300v2
The resulting connection settings are shown in Figure 4 on page 85.
3. Configure the security policy in the NETGEAR ProSafe
VPN Client software:
a. In the Network Security Policy list, expand the n
ew connection by double-clicking its
name or clicking the + symbol. My Identity and Security Policy subheadings appear
below the connection name.
b. Click the Securi
ty Policy subheading to view the Security Policy settings.

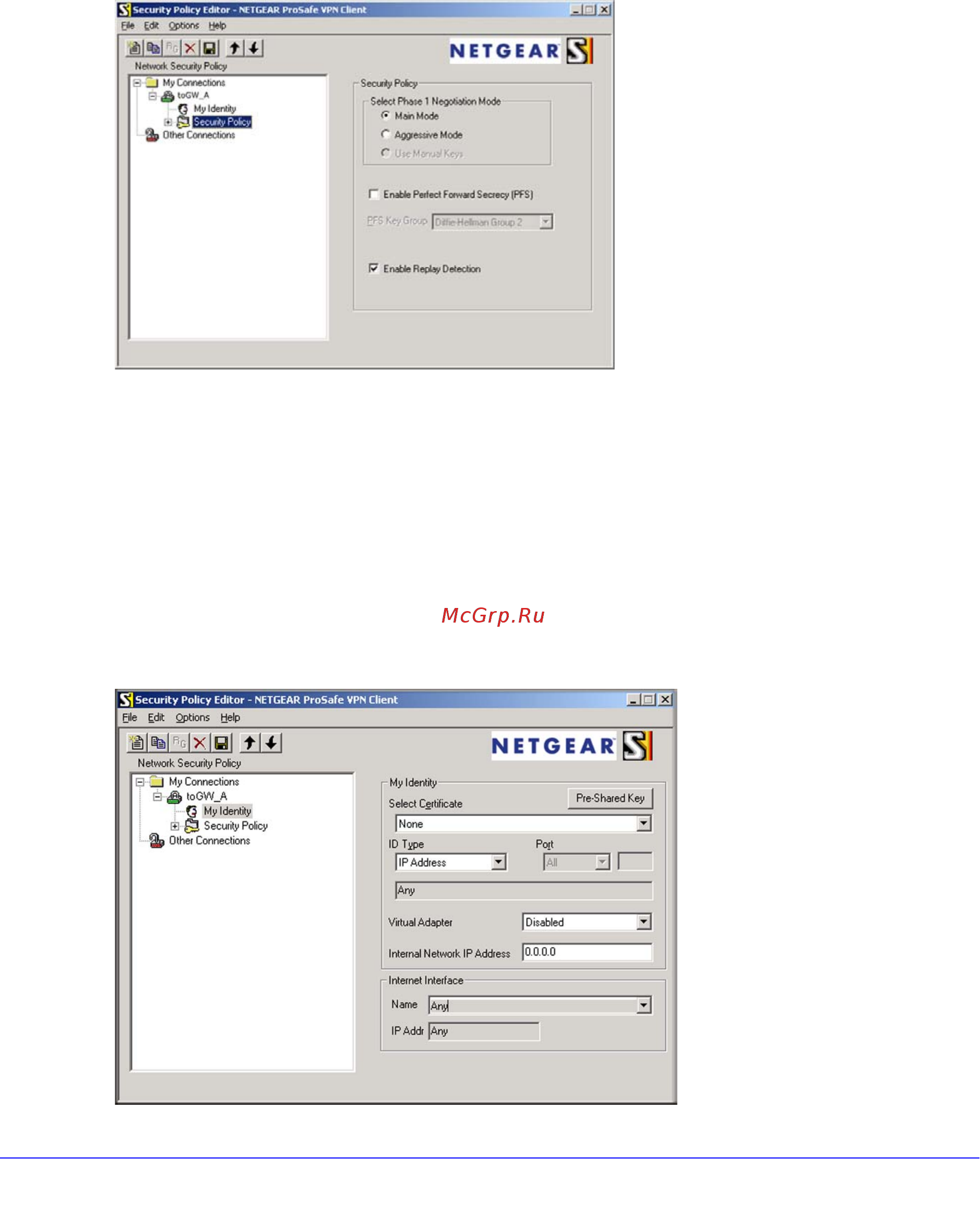

Figure 4. Security Policy settings, Client-to-Gateway A
c. In the Select Phase 1 Negotiation Mode section of the screen, select the Main Mode
radio button.
4. Configure the VPN client identity.
I
n this step, you provide information about the remot
e VPN client computer. You need to
provide the pre-shared key that you configured in the N300 wireless modem router and
either a fixed IP address or a fixed virtual IP address of the VPN client computer.
a. In the Network Security Policy list on the lef
t side of the Security Policy Editor window,
click My Identity.
