Command Line Interface Reference Manual
15
name of remote server and remote file upon typing the command.
Parameter Description
tftp<:filename> Indicates reading the files from the tftp server. “Filename” will indicate the relative filename, if
not, the user will be prompted to input the filename after the “copy” command operates.
flash＜：ｆｉｌｅｎａｍｅ＞ Ｉｎｄｉｃａｔｅｓ ｗｒｉｔｉｎｇ ａ ｆｉｌｅ ｉｎｔｏ ｔｈｅ ｒｏｕｔｅｒ ｆｌａｓｈ． Ｔｈｅ ｆｉｌｅｎａｍｅ ｗｉｌｌ ｉｎｄｉｃａｔｅ ｔｈｅ
ｒｅｌａｔｉｖｅ ｆｉｌｅｎａｍｅ， ｉｆ ｎｏｔ， ｔｈｅ user will be prompted to input the filename after the “copy” command operates.
ｉｐ＿ａｄｄｒ Ｔｈｅ ＩＰ ａｄｄｒｅｓｓ ｏｆ ｔｆｔｐ ｓｅｒｖｅｒ． Ｉｆ ｉｔ ｉｓ ｎｏｔ ｓｐｅｃｉｆｉｅｄ， ｔｈｅ user will be prompted to input the
filename after the “copy” command operates.
Example
Read the file named “main.bin” in the TFTP server and write it into Router as “router.bin”
ｍｏｎｉｔｏｒ＃ｃｏｐｙ ｔｆｔｐ ｆｌａｓｈ：ｒｏｕｔｅｒ．ｂｉｎ
Prompt: Remote-server ip address[]?192.168.0.116
Prompt: Name of remote file to read[]?main.bin
TFTP:successfully receive 36 blocks ,18370 bytes
monitor#
B．By SLIP zmodem
Update the software with “download” command. Input “download ?” to obtain help.
ｍｏｎｉｔｏｒ＃ｄｏｗｎｌｏａｄ ｃ０ ＜ｌｏｃａｌ＿ｆｉｌｅｎａｍｅ＞
This command is used to copy a file to the system flash memory through SLIP zmodem. The system will prompt to input
the port rate upon inputting the command.
Parameter Description
local_filename A file name stored in the flash memory. The user must input the filename.
Example
The terminal program can use the Hyper Terminal program of WINDOWS 95，NT 4.0 or terminal emulation program
of WINDOWS 3.X.
ｍｏｎｉｔｏｒ＃ｄｏｗｎｌｏａｄ ｃ０ ｒｏｕｔｅｒ．ｂｉｎ
Prompt: ｓｐｅｅｄ［９６００］？１１５２００

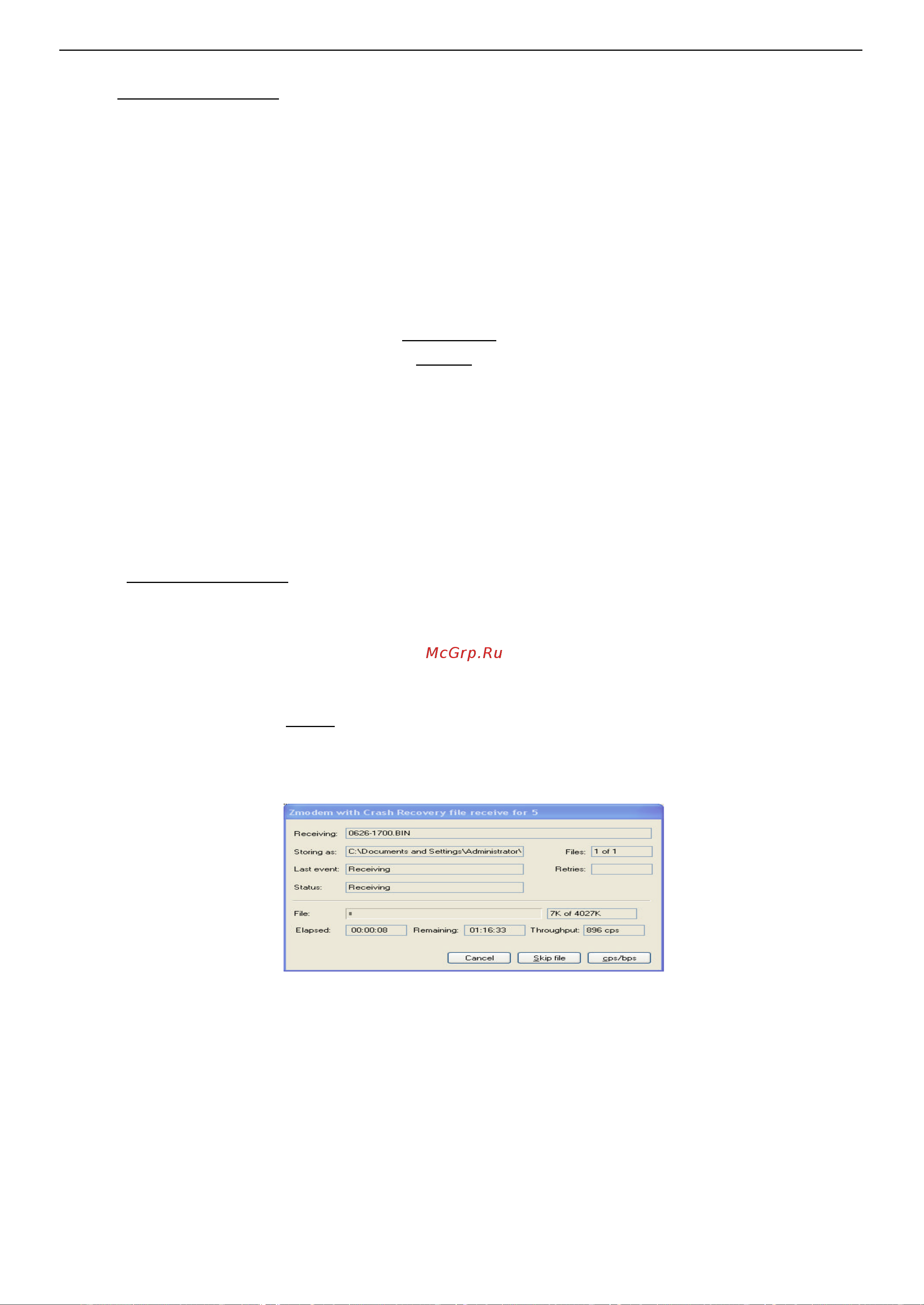

Then modify the rate to 115200. After reconnection, select Send File in the Send menu of a hyper terminal (terminal
emulation), as the following graph:
Fig. 2-3-1
Input the full path of Router software ｍａｉｎ．ｂｉｎ provided by this company in the filename input box, and choose Zmodem for
the protocol. Press “Send” button to send the file.
When completing sending the file, the following message will appear:
ZMODEM:successfully receive 36 blocks ,18370 bytes
monitor#
That means the successful update of the software.
２．２．２ Ｕｐｄａｔｅ Ｃｏｎｆｉｇｕｒａｔｉｏｎ
The Router configuration is saved as a file, named ｓｔａｒｔｕｐ－ｃｏｎｆｉｇ, which can be updated by a command that resembles the
software update command.
A．By TFTP protocol
