DGS-3000-28SC Layer 2 Managed Stackable Gigabit Switch Web UI Reference Guide

QinQ Settings

This window is used to configure the Q-in-Q parameters.

To view the following window, click L2 Features > QinQ > QinQ Settings, as show below:

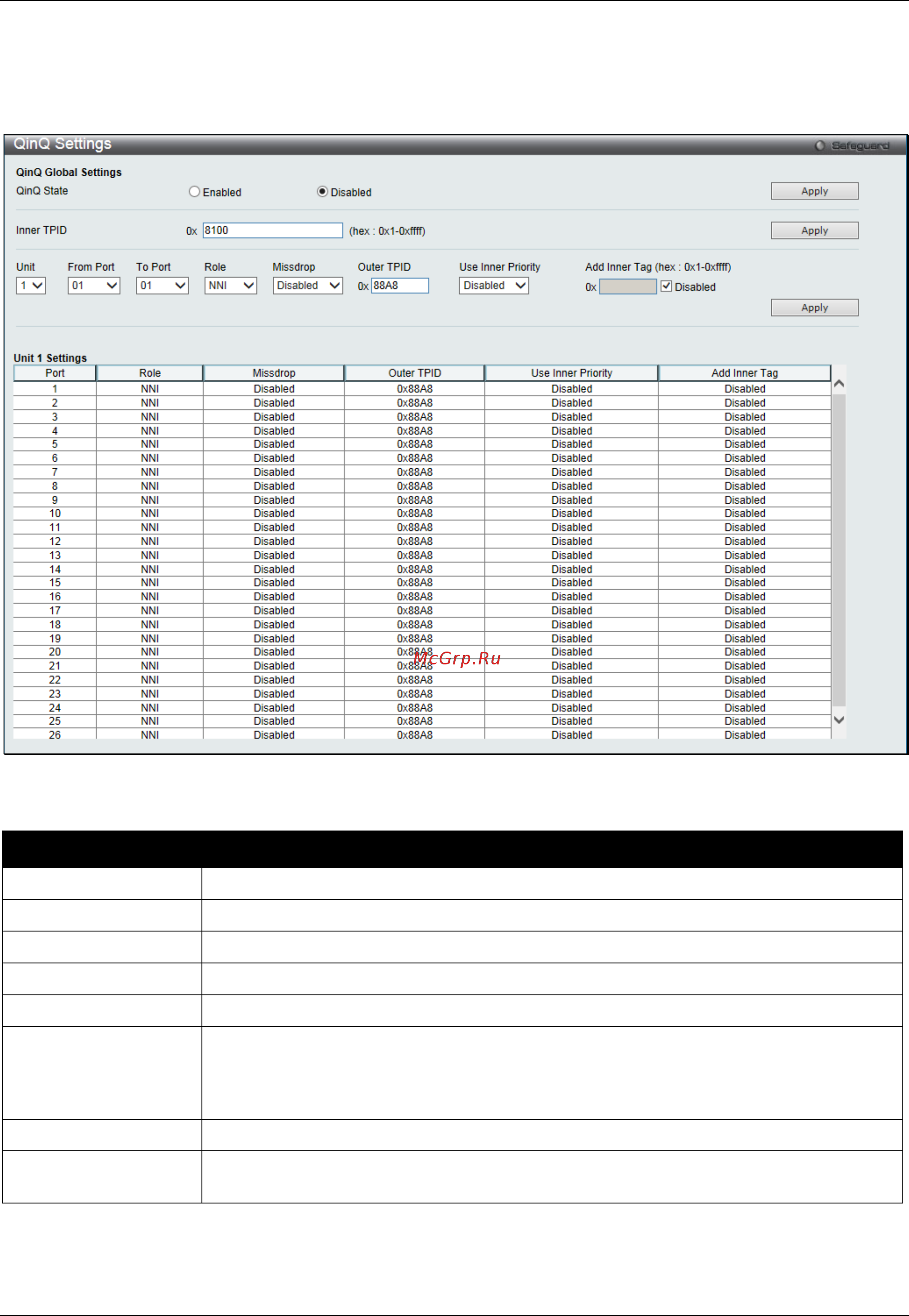

Figure 4-33 QinQ Settings Window

The fields that can be configured are described below:

Parameter Description

QinQ State

Click to enable or disable the Q-in-Q state.

Inner TPID

Enter an Inner TPID in SP-VLAN tag here.

Unit

Select the unit you want to configure.

From Port / To Port

Use the drop-down menus to select a range of ports to use in the configuration.

Role

Port role in Q-in-Q mode, it can be UNI port or NNI port

Missdrop

This option enables or disables C-VLAN based SP-VLAN assignment miss drop. If

Missdrop is enabled, the packet that does not match any assignment rule in the Q-in-Q

profile will be dropped. If disabled, then the packet will be forwarded and will be

assigned to the PVID of the received port.

Outer TPID

Enter an Outer TPID in SP-VLAN tag here.

Add Inner Tag

Specify that an Inner Tag will be added to the entry. By default the Disabled check

box is selected.

Click the Apply button to accept the changes made for each individual section.
