DGS-3000-28SC Layer 2 Managed Stackable Gigabit Switch Web UI Reference Guide
84

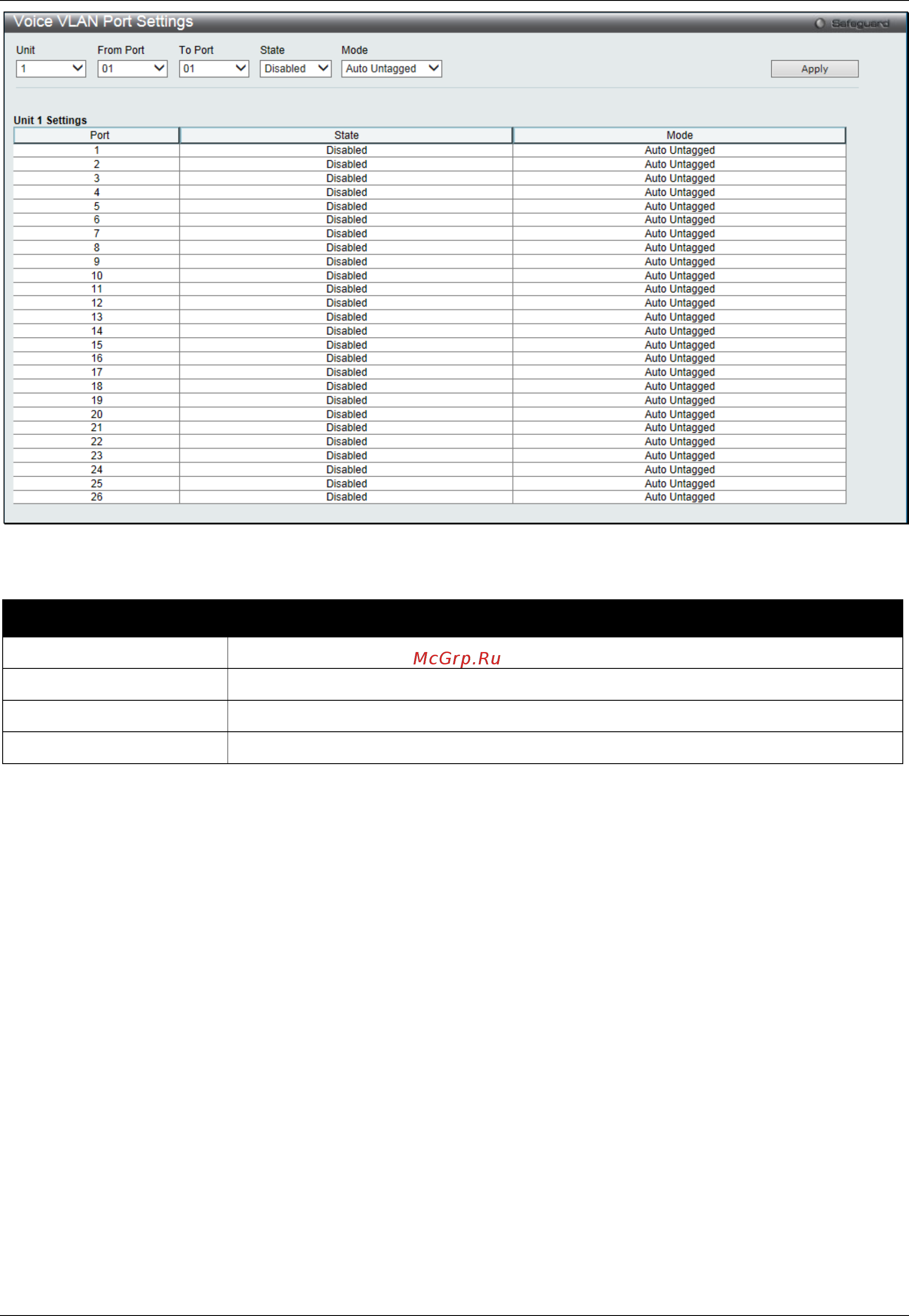

Figure 4-20 Voice VLAN Port Settings window
The fields that can be configured are described below:
Parameter
Description
Unit
Select the unit you want to configure.
From Port / To Port
Use the drop-down menu to select a range of port to display.
State
Use the drop-down menu to enable or disable the state of the port.
Mode
Use the drop-down menu to configure the mode of the port.
Click the Apply button to accept the changes made.
Voice VLAN OUI Settings
This window is used to configure the user-defined voice traffic’s OUI. The OUI is used to identify the voice traffic.
There are a number of pre-defined OUIs. The user can further define the user-defined OUIs if needed. The user-
defined OUI cannot be the same as the pre-defined OUI.
To view the following window, click L2 Features > VLAN > Voice VLAN > Voice VLAN OUI Settings as shown
below.
