DGS-3000-28SC Layer 2 Managed Stackable Gigabit Switch Web UI Reference Guide
159

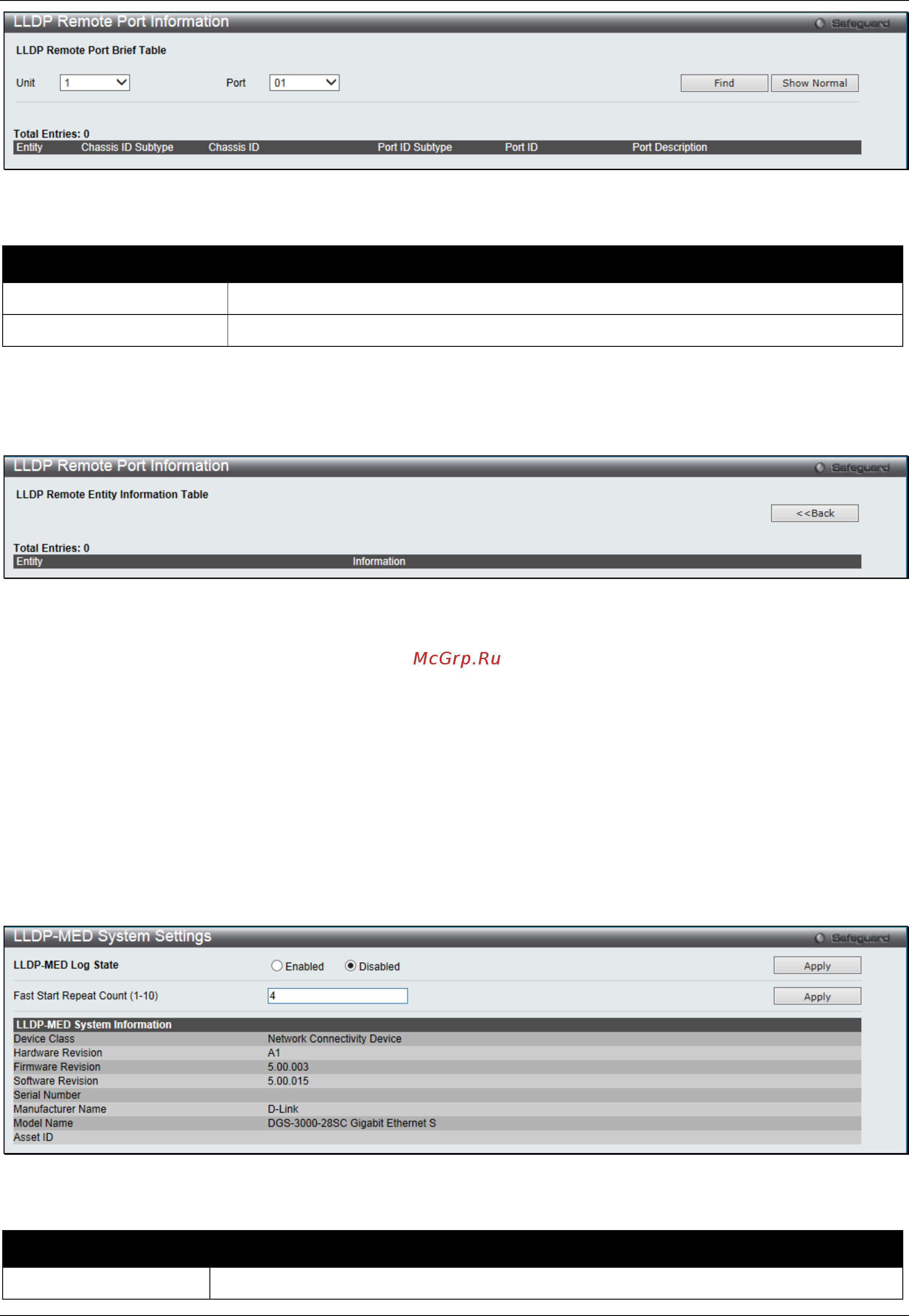

Figure 4-124 LLDP Remote Port Information window
The fields that can be configured are described below:
Parameter Description
Unit
Select the unit you want to configure.
Port
Use the drop-down menu to select a port.
Click the Find button to locate a specific entry based on the information entered.
To view the normal LLDP Remote Port information page per port, click the Show Normal button.
After clicking the Show Normal button, the following window will appear.
Figure 4-125 LLDP Remote Port Information – Show Normal window
Click the <<Back button to return to the previous page.
LLDP-MED
LLDP-MED System Settings
This window is used to configure the LLDP-MED log state and the fast start repeat count, and display the LLDP-
MED system information.
To view the following window, click L2 Features > LLDP > LLDP-MED > LLDP-MED System Settings as shown
below.
Figure 4-126 LLDP-MED System Settings window
The fields that can be configured are described below:
Parameter Description
LLDP-MED Log State
Click to enable or disable the log state of LLDP-MED events.
