DGS-3000-28SC Layer 2 Managed Stackable Gigabit Switch Web UI Reference Guide
11

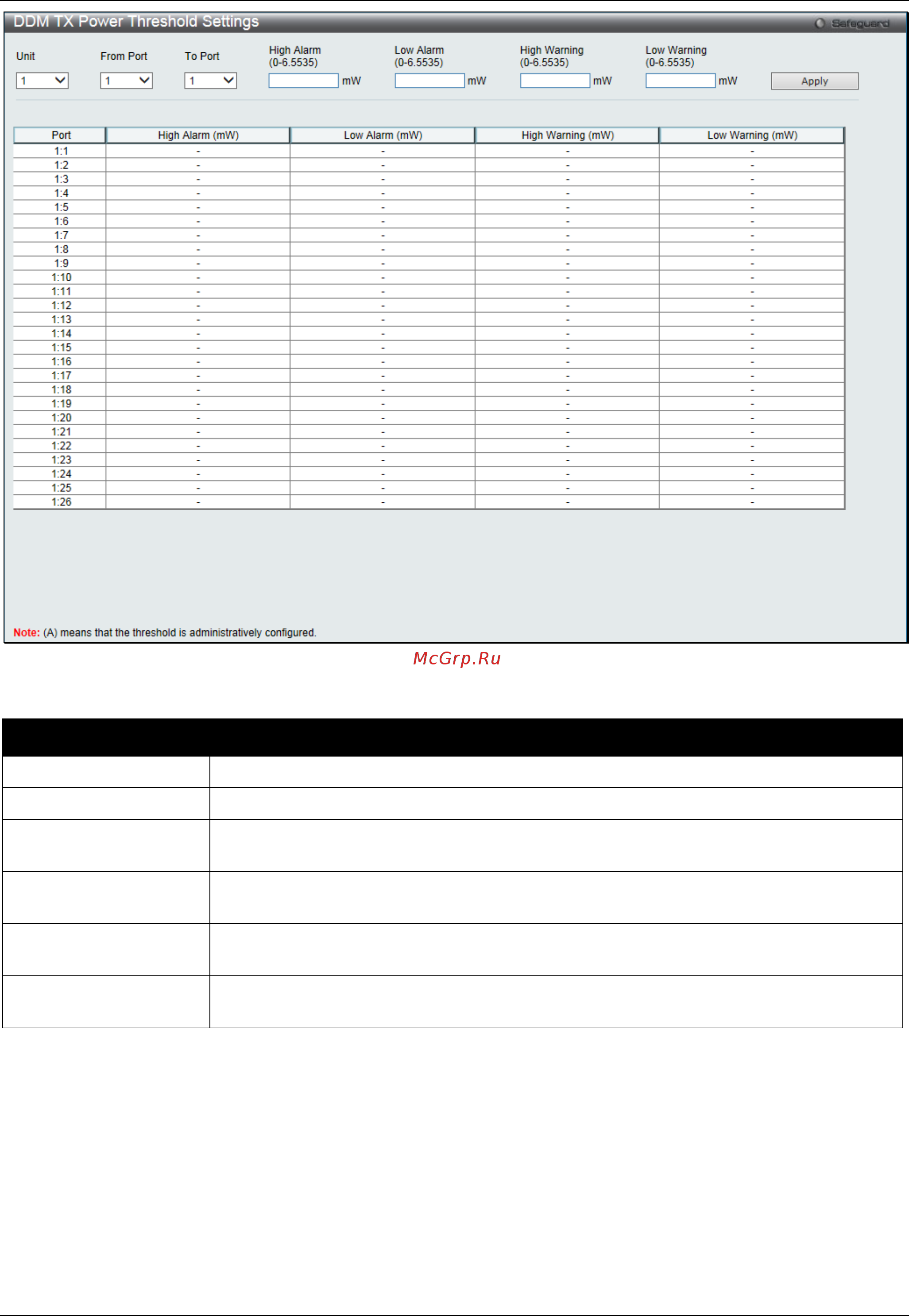

Figure 2-7 DDM TX Power Threshold Settings window
The fields that can be configured are described below:
Parameter Description
Unit
Select the unit to be configured.
From Port / To Port
Select a range of ports to be configured.
High Alarm
This is the highest threshold for the alarm. When the operating parameter rises above
this value, action associated with the alarm will be taken.
Low Alarm
This is the lowest threshold for the alarm. When the operating parameter falls below
this value, action associated with the alarm will be taken.
High Warning
This is the highest threshold for the warning. When the operating parameter rises
above this value, action associated with the warning will be taken.
Low Warning
This is the lowest threshold for the warning. When the operating parameter falls
below this value, action associated with the warning will be taken.
Click the Apply button to accept the changes made.
DDM RX Power Threshold Settings
This window is used to configure the threshold of RX power for specific ports on the Switch.
To view the following window, click System Configuration > Port Configuration > DDM > DDM RX Power
Threshold Settings, as show below:
