DGS-3000-28SC Layer 2 Managed Stackable Gigabit Switch Web UI Reference Guide
345

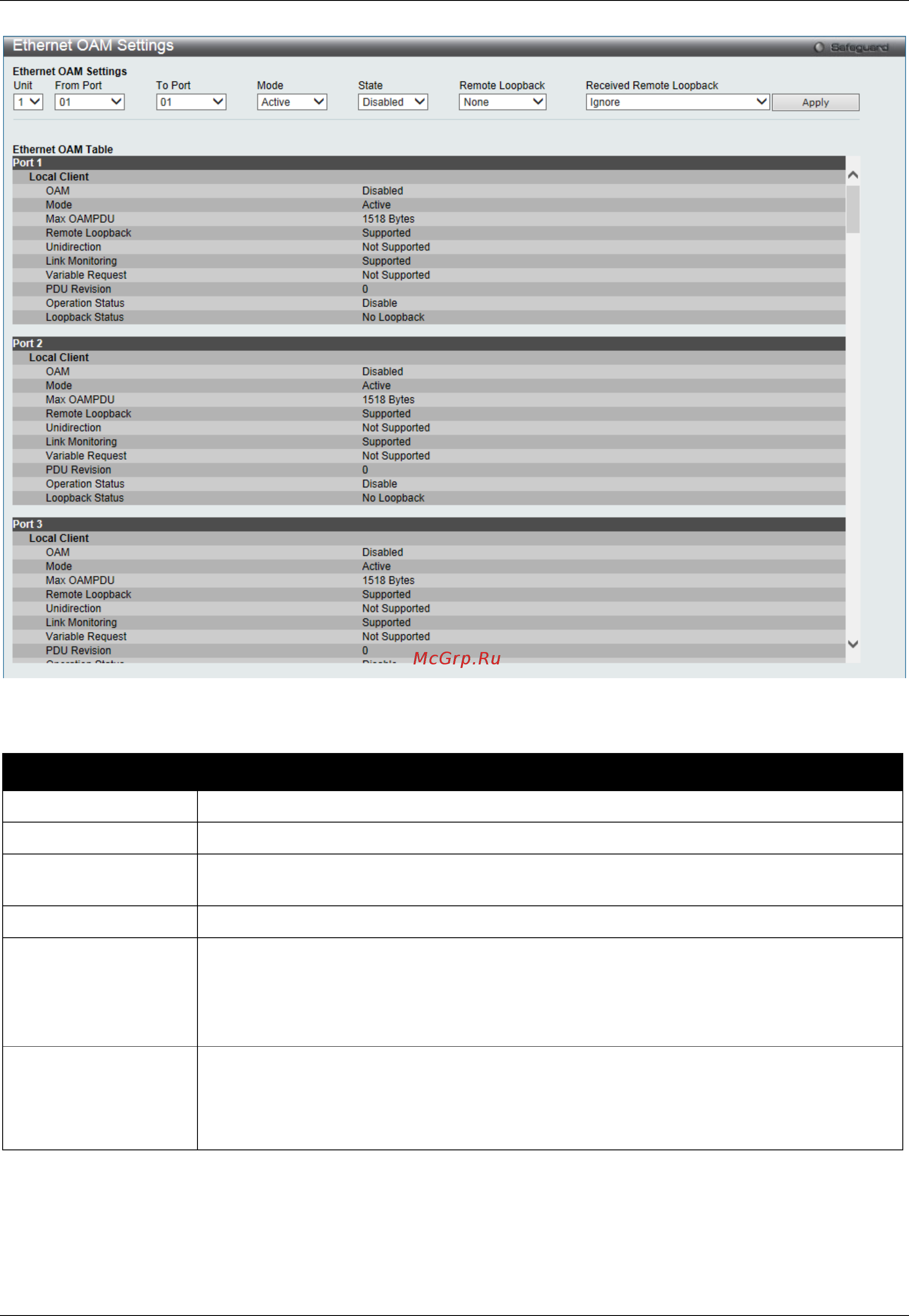

Figure 10-20 Ethernet OAM Settings window
The fields that can be configured are described below:
Parameter Description
Unit
Select the unit you want to configure.
From Port / To Port
Select a range of ports you wish to configure.
Mode
Use the drop-down menu to select to operate in either Active or Passive. The default
mode is Active.
State
Use the drop-down menu to enable or disable the OAM function.
Remote Loopback
Use the drop-down menu to select Ethernet OAM remote loopback.
None – Select to disable the remote loopback.
Start – Select to request the peer to change to the remote loopback mode.
Stop - Select to request the peer to change to the normal operation mode.
Received Remote
Loopback
Use the drop-down menu to configure the client to process or to ignore the received
Ethernet OAM remote loopback command.
Process – Select to process the received Ethernet OAM remote loopback command.
Ignore - Select to ignore the received Ethernet OAM remote loopback command.
Click the Apply button to accept the changes made.
Ethernet OAM Configuration Settings
This window is used to configure Ethernet OAM configuration settings.
