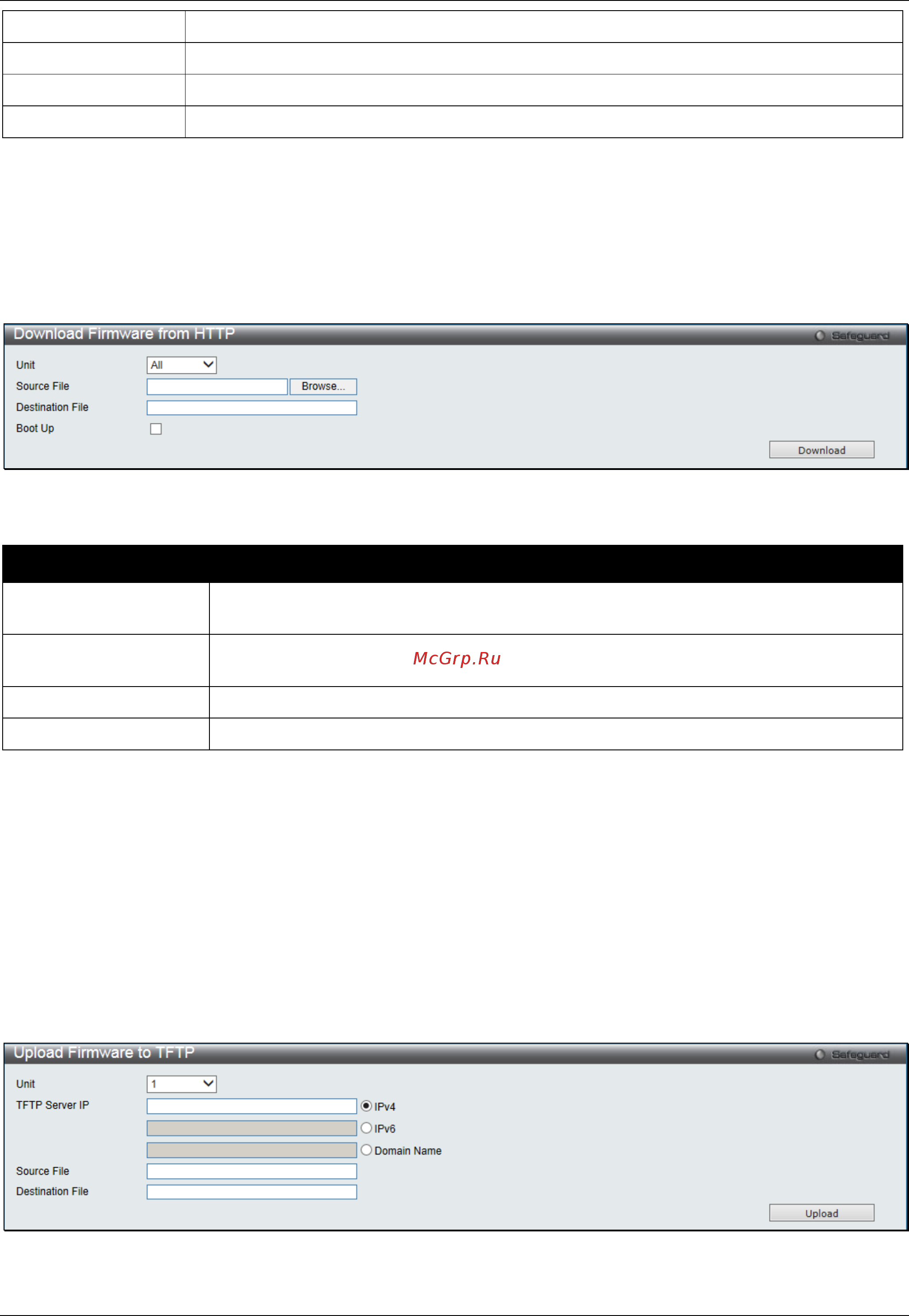

![D-Link DGS-3000-28SC [388/444] Upload firmware](/views2/1459197/page388/bg184.png)
DGS-3000-28SC Layer 2 Managed Stackable Gigabit Switch Web UI Reference Guide
378
User Name
Enter the remote user name on the RCP server.
Source File
Enter the location and name of the Source File.
Destination File
Enter the location and name of the Destination File.
Boot Up
Select this option to use this firmware as the boot-up firmware.
Click the Download button to initiate the download.
From HTTP
This window allows the user to download firmware from a computer to the Switch and updates the switch.
To view this window, click Tools > Download Firmware > From HTTP, as shown below:
Figure 12-8 Download Firmware from HTTP window
The fields that can be configured are described below:
Parameter Description
Unit
Use the drop-down menu to select a unit for receiving the firmware. Select All for all
units.
Source File
Enter the location of the Source File or click the Browse button to navigate to the
firmware file for the download.
Destination File
Enter the location of the Destination File.
Boot Up
Tick the check box to set it as a boot up file.
Click Download to initiate the download.
Upload Firmware
The following window is used to upload firmware from the Switch.
To TFTP
This window allows the user to upload firmware from the Switch to a TFTP Server.
To view this window, click Tools > Upload Firmware > To TFTP, as shown below:
Figure 12-9 Upload Firmware to TFTP window
The fields that can be configured are described below:
